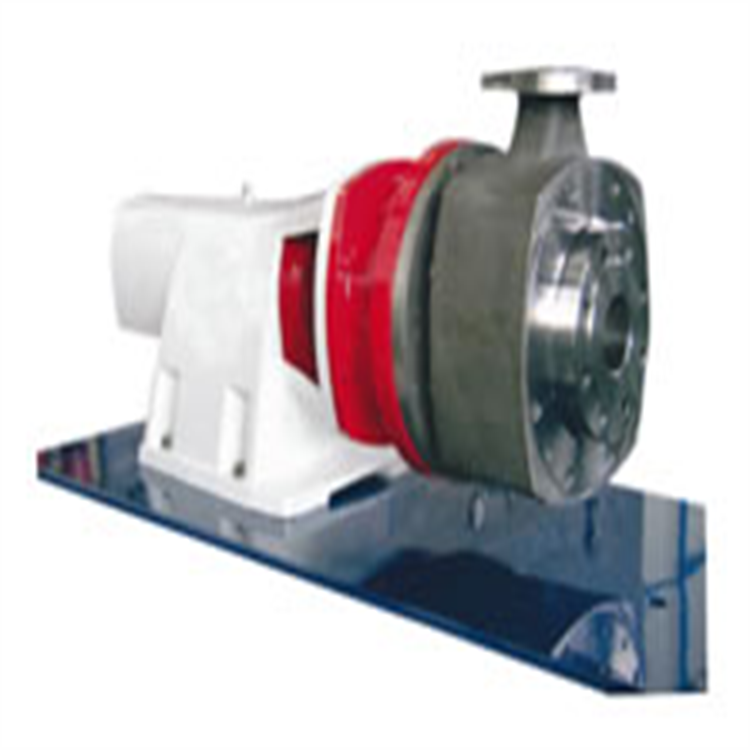

1Pipe-line type mixing emulsifierThe function is a new technology following intermittent high shear, featuring continuous operation, large capacity processing, and no dispersed emulsification dead corners. Suitable for sealed and sterile operations, it saves energy consumption.
Over 50% smaller particle size, narrower particle size distribution, higher emulsification uniformity, and simple operation, these advantages have quickly gained application and recognition in the international chemical industry, making it the preferred equipment for dispersion and emulsification technology.
2、Pipe-type mixing emulsifierWorking Principle:The machine consists of 1 to 3 working cavities, where the material is高速 moved between the rotor and stator in a narrow gap, driven by the motor's high-speed operation, creating turbulence.
Material undergoes a comprehensive action of stronger hydraulic shearing, centrifugal extrusion, high-speed cutting, impact, and abrasion, achieving effects of dispersion, emulsification, and fragmentation. The processed material itself and its physical properties and working characteristics
The number of cavities and the control of material residence time in the cavity determine the particle size distribution range, as well as the effects of homogenization, refinement, and the yield.
3、Pipe-type Mixing EmulsifierProduct Features
High volume processing, suitable for industrial online continuous production.
Narrow particle size distribution range with high uniformity.
Time-saving, efficient, and energy-saving
The integral machine frame precision cast and each rotor precision dynamically balanced, ensuring low operating noise and stable operation of the entire machine.
Eliminate quality differences between batches in production.
◆ Zero blind spots, materials are 100% crushed, dispersed, and sheared.
◆ Features short-distance and low-lift conveying capabilities;
Simple to use, easy to maintain;
◆ Can achieve automated control;
◆ Modular mechanical seal, ensuring no material leakage.
◆ Single machine processing capacity ranges from 1 to 120 m³/h.
4、Pipe-type mixing emulsifierOrder Data
*The flow rate range in the table is measured based on water as the medium. The production capacity varies depending on the different combinations of the rotor and stator. This value is for reference only.
* In case of high temperature, high pressure, flammability, corrosiveness, etc., precise relevant parameters must be clearly provided for correct selection and customization.
For working media with a viscosity of ≥12,000 cp, it is recommended to use a pump with a flow rate that matches the inlet.
* Add the letter "T" to the model number for heating (cooling) jackets, and add the letter "B" for explosion-proof motors.
Each level features two, four, six, or eight shear faces for selection.
*进出口 flange sizes are for reference only; the order contract shall govern.
Product Introduction:
Pipe-type mixing emulsifierThe function is a new technology following intermittent high shear, featuring continuous operation, large processing capacity, and no dispersed emulsification dead corners. It is suitable for sealed and sterile operations, and saves energy consumption.
Over 50% with smaller particle size, narrower distribution range, higher emulsification uniformity, and simple operation, these advantages have quickly gained application and recognition in the international chemical industry.
