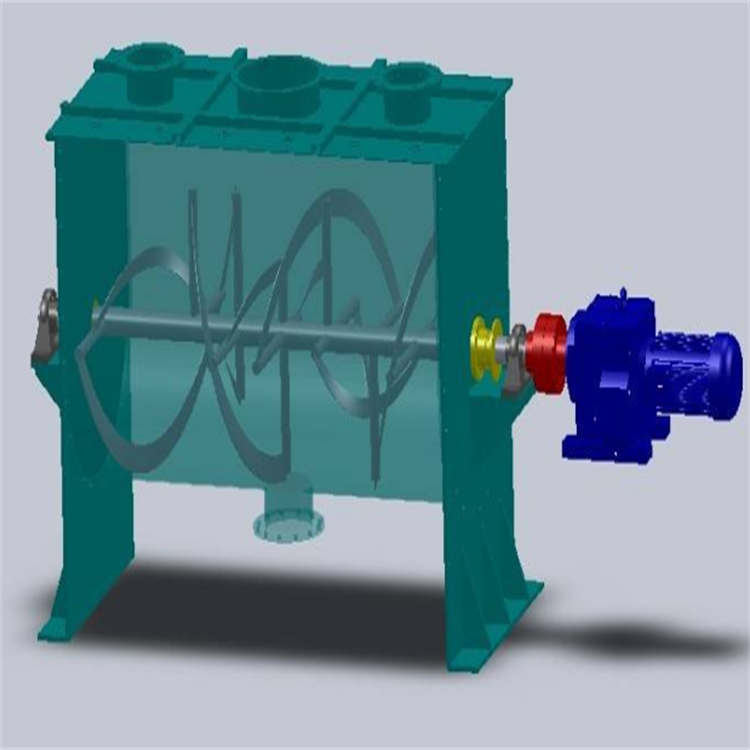

Screw-type mixerThe structure mainly consists of transmission components, cylinder, cylinder cover, a specially arranged screw shaft, discharge valve, etc.

Screw-type mixerThe working principle involves the motor driving the main shaft of a specially arranged screw through a reducer. When the center discharge is activated, the external screw moves the material to the center position, while the internal screw pushes the material towards the end plate. The two streams of material interact through diffusion, convection, shearing, misalignment, and radial movement, resulting in a highly effective and rapid mixing of the material.

The twin-screw mixer can be selected with different screw types based on material characteristics – continuous screw, intermittent screw, and paddle screw. The three types of screws can be arranged in two forms depending on the discharge point: central and end discharge.

Screw-type mixers are primarily used for blending powdered and granular materials in industries such as chemicals, pharmaceuticals, food, pesticides, plastics, pigments, cosmetics, and feed additives.

Screw-type Blending MachineFeatures

1. Special-designed screw-type mixer transmission gearboxes, featuring compact structure, precise transmission, long service life, low noise, and extremely easy installation.

2. Welded drum of helical mixer, enhancing overall rigidity, leak-proof, minimizing hygiene blind spots, and aesthetically pleasing.

3. The segmented flange connection of the helical blade mixer's main shaft ensures the required processing accuracy for the shaft.

4. Screw blade mixer with embedded mechanical design and double packing gland seal ensures zero leakage.

Product Description:

Screw-type mixerThe structure mainly consists of transmission components, the cylinder, cylinder cover, a specially arranged screw shaft, and discharge valve, etc.
