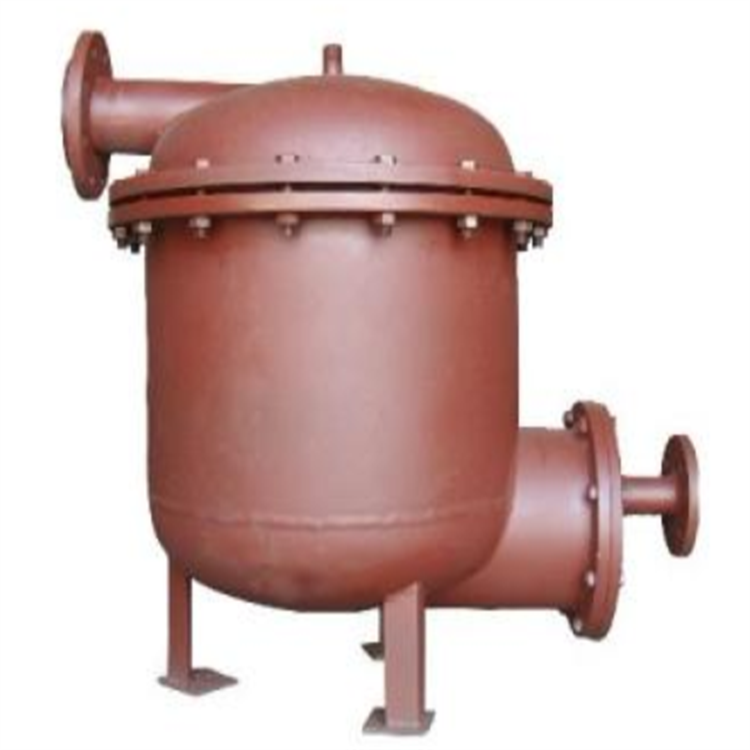

Automatic Spin DryerThe working principle involves the application of Archimedes' Law, the lever principle, and the principle of uniform pressure inside a container filled with liquid. It relies on the buoyancy difference of the float ball in the oil-water medium, causing the float ball to move up and down.
Activating through an amplification mechanism that increases force, the buoyancy difference obtained by the float is magnified, which then controls the opening of the drainage valve as the motive power, achieving the objectives of cutting water and sealing oil, thereby achieving automatic dehydration.
Automatic Drainage DeviceThe feature is the adoption of a unique non-back pressure design structure, which makes the valve operation more flexible, and it also allows for remote automatic monitoring of the system according to the user's needs, thereby improving the tank farm's water cutoff management.
In cold regions, with the risk of the bottom water layer freezing in the cutter, this equipment can be externally insulated to maintain proper temperature for normal cutting operation.
Automatic DehydratorTechnical Specifications
1. Work pressure: ≤0.2 MPa
2. Operating Temperature: 0°C—80°C
3. Nominal Dewatering Capacity: 5m3/h, 10m3/h, 15m3/h, 20m3/h, 30m3/h, 60m3/h
4. Dewatered Oil Content: ≤80 ppm
5. Working Medium: Type A Light Oil, Type B Crude Oil or Heavy Oil, Benzene
6. Applicable medium density: ≤960 kg/m³
7. Steam Pressure: 0.1 MPa ≤ P ≤ 1.0 MPa
8. Material: 304, Q235
Automatic DehydratorTechnical Features of Our Products
1. Perfectly utilizing Archimedes' Principle and the amplification principle of levers, it cleverly converts the buoyancy difference caused by the density difference between oil and water into power, achieving automatic water cutting without energy consumption.
2. Oil and water can be automatically separated after entering the separator; excess oil can quickly return to the oil tank. When the water level in the separator reaches a certain height, the valve core opens to drain, and when the water level drops to a certain height, the valve core closes automatically.
Action close.
3. Upon completion of the dehydration process, the water separator maintains a certain water level to form an automatic water seal; the dehydration valve (dehydration valve) undergoes two sealing operations to ensure no oil leakage.
4. The automatic defroster utilizes a pressure-free valve with no back pressure. The lever first moves the needle valve, equalizing the pressure inside and outside the valve core. As the lever continues to move, the needle valve and valve core start cutting water together with great flexibility.
The large tank can normally cut through water during oil intake and outflow.
5、Automatic DehydratorThe bottom is equipped with a drain valve, the washing and drying machine does not require disassembly of the water valve, and it takes only ten minutes to wash and dry a single machine.
6. The automatic drain valve can be positioned at any of the four sides, offering a 360° drainage direction option; 7. Compact in size, highly adaptable to storage tanks with a low base foundation.
8. Custom-made to meet specific user requirements, catering to dehydration needs under various operating conditions.
