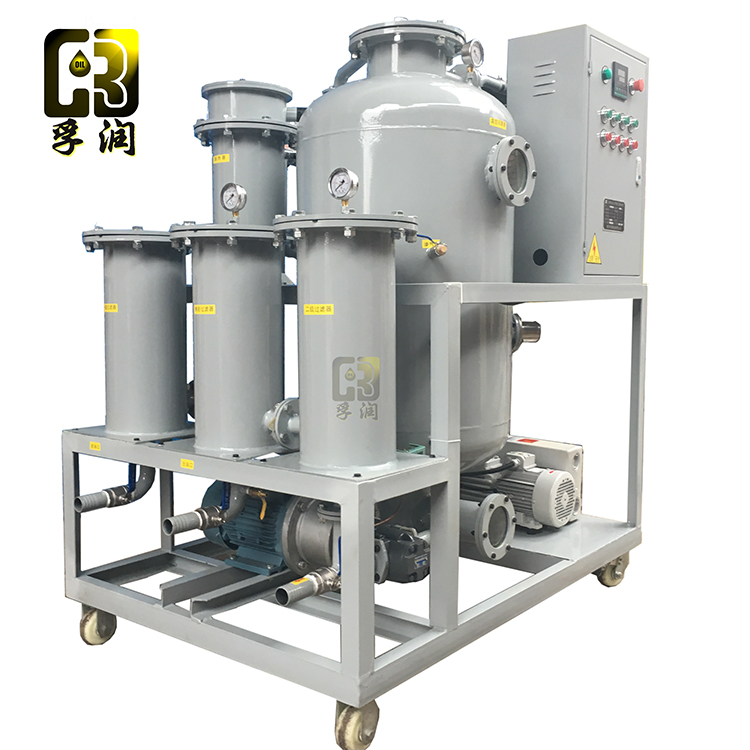

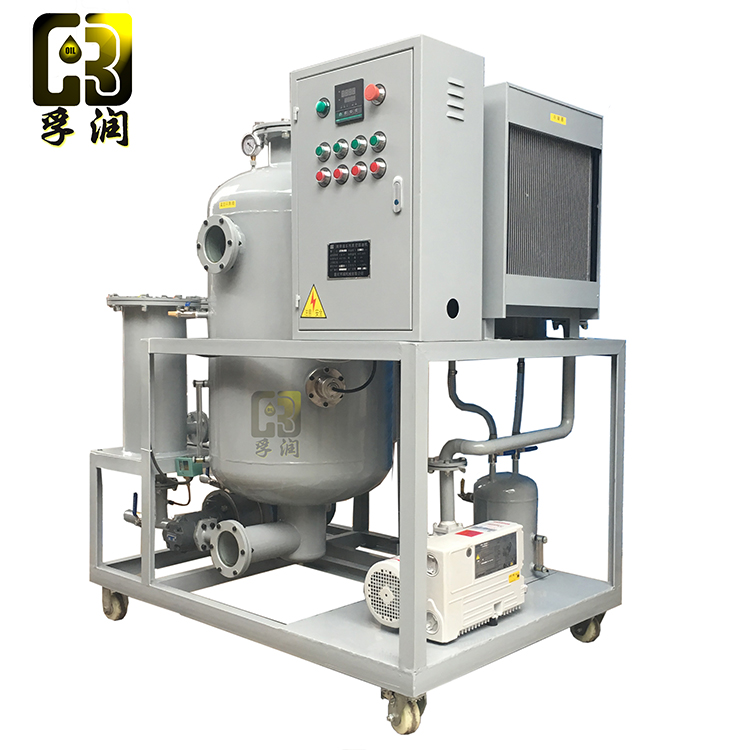

TYA Series Vacuum Oil Filter Machine for Lubricants

One、Usage:

The TYA series vacuum oil purifier is mainly used in mining, metallurgy, cement, oil, railway, machinery, chemical industry, textile, instruments, and other industrial sectors. It processes various types of lubricating oils, hydraulic fluids, engine oils, industrial gear oils, refrigerating oils, compressor oils, bearing oils, quenching oils, vacuum pump oils, rolling oils, heat treatment oils, diesel, kerosene, and more. Each type of equipment has specific technical requirements and standards for its oils, with corresponding configurations for each variety. It plays a significant role in purifying and reconditioning various industrial lubricating oils, extending the maintenance cycle and lifespan of equipment, and reducing production costs.

TYA series vacuum oil purifiers effectively remove contaminants from oil products such as moisture, gases, and mechanical impurities, enhancing the oil's kinematic viscosity, flash point, and emulsifying properties. This allows the oil to quickly restore to the required performance standards, approaching or reaching the relevant specifications.

Two、Features:

1. Strong impurity removal capability; large area, deep-layer precision filter materials can remove fine particles from oil, and a strong magnetic filter is also equipped to remove ferrous impurities.

2. Dehydration and degassing system, utilizing three-dimensional evaporation technology and multi-level oil-water separation techniques, quickly separates moisture and gases from the oil.

3. The heating system features an optimized pipeline design, ensuring even heating and stable oil temperature.

4. Precision filtration system with multi-stage filtration for enhanced purification and high dirt-holding capacity. Effectively removes impurities from oil and features an automatic detection function for filter element contamination.

5. Automatic temperature control system, automatic liquid level control system, automatic pressure protection system, and superior configuration ensure high-performance operation of the equipment.

6. Online oil filtering, capable of unattended operation; running status indicated by indicator lights.

7. User-friendly design with low noise, easy operation, long maintenance intervals, low energy consumption, and cost savings in operation.

8. The entire unit is equipped with interlocked safety protection, where the oil filling and heating systems are interlocked to prevent adverse effects from accidental operation.

9. Equipped with filter element change indicator and filter element saturation shutdown device.

10. Equipped with a leakage and overload shutdown device to protect the motor.

11. Equipped with phase sequence and phase loss protection, as well as a sudden shutdown safety mechanism.

Optional Mode：

1. Optional PLC intelligent control, touch screen operation, with dynamic display available based on customer requirements.

2. Optional online moisture detection instrument

3. Optional water ring vacuum pump available.

4. The entire machine structure can be made into portable, fixed, trailer, fully enclosed, awning, canvas tent, and open styles.

※ The equipment's appearance, dimensions, and technical specifications are for reference only and may slightly vary with the continuous development of the product. Please refer to the actual product.

Section 4: Workflow

During operation, the vacuum oil purifier first introduces the contaminated oil into the preliminary filter to remove larger mechanical impurities. The oil is then heated in an electric heater, reducing its viscosity through temperature increase. Subsequently, through a series of actions including spraying, flash vaporization, and atomization, the moisture in the oil is converted from a liquid to a vapor state, condensed back into liquid droplets through the gas pipeline, and expelled. At this point, the oil passes through an oil pump and is filtered through a secondary filter and a precision filter via the oil pipeline, resulting in oil free of impurities and moisture. This oil meets the standards for recycled oil use and can be reused, thereby saving oil costs. For deep purification and filtration of the oil, it can be introduced into a regeneration tank to regenerate degraded oil, removing acid values, soaps, and pigments. Refer to Figure 1 for the workflow (the de-acidification unit is configured as needed.)

Section 5: Schematic Diagram of Vacuum Filtration Oil Machine
