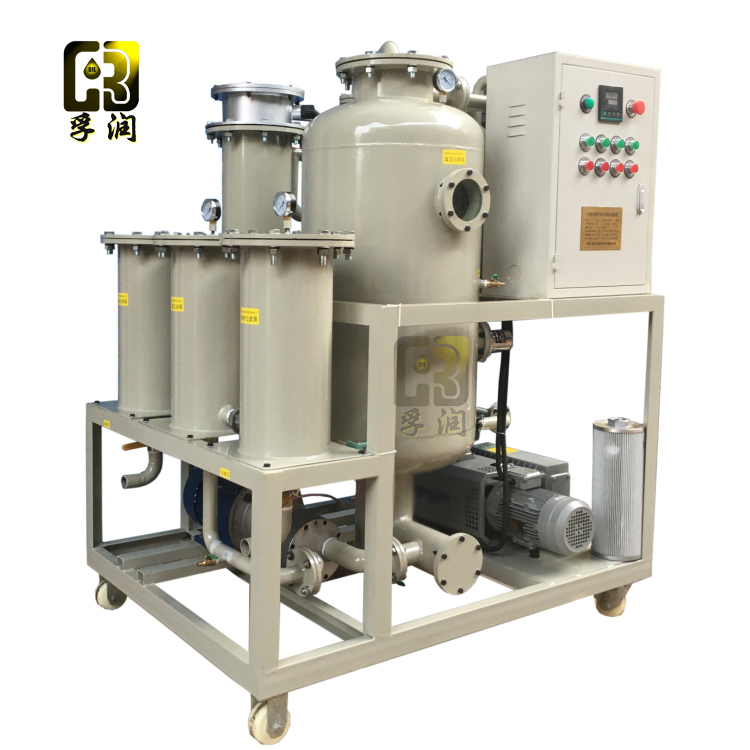

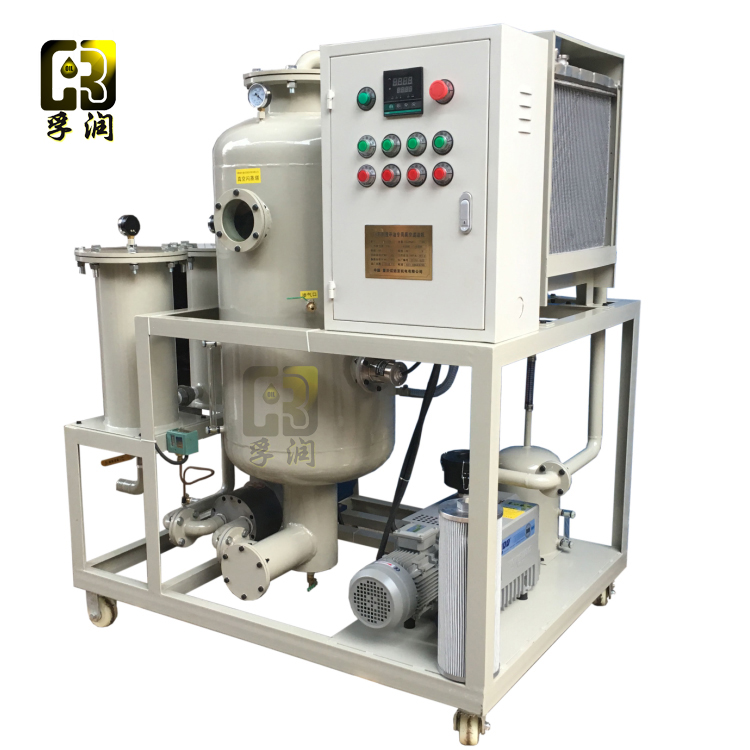

TYA Series Vacuum Oil Filter Machine
Please provide the Chinese content that you would like translated into American English.、Usage:
The TYA series vacuum oil purifiers are primarily used in various industrial sectors such as mining, metallurgy, cement, petroleum, railroads, machinery, chemicals, textiles, and instruments. They process a wide range of lubricating oils, hydraulic fluids, engine oils, industrial gear oils, refrigeration oils, compressor oils, bearing oils, quenching oils, vacuum pump oils, rolling oils, heat treatment oils, diesel, kerosene, and more. Each device is tailored to meet the specific technical requirements and standards for different types of oil. These purifiers significantly contribute to the purification and regeneration of contaminated and degraded industrial lubricants, extending equipment maintenance cycles and service life, and reducing production costs.
TYA series vacuum oil purifiers effectively remove contaminants from oils such as moisture, gases, and mechanical impurities, enhancing the oil's kinematic viscosity, flash point, and emulsification properties. This allows the oil to quickly restore to the required performance levels, nearing or meeting the relevant standards.
Two、Features:
1. Strong decontamination capability, precision filter materials with large area and deep layers can remove fine particles from oil, and a strong magnetic filter is also equipped to remove ferrous impurities.
2. Dehydration and degassing system, utilizing three-dimensional evaporation technology and multi-level oil-water separation techniques, rapidly separating moisture and gas from the oil.
3. The heating system features an optimized pipeline design to ensure even heating and stable oil temperature.
4. Precision filtration system with multi-stage filtering for enhanced purification and high dirt-holding capacity. Effectively removes impurities from oil and features an automatic filter element contamination detection function.
5. Automatic temperature control system, automatic liquid level control system, automatic pressure protection system, and fine configuration ensure high-performance operation of the equipment.
6. Online oil filtering, capable of unattended operation; status indicated by indicator lights.
7. User-friendly design, low noise, easy operation, long maintenance intervals, low energy consumption, and cost savings in operation.
8. The entire unit is equipped with interlocked safety protection, linking the oil filling and heating systems to prevent adverse effects from incorrect operation.
9. Features a filter core replacement indicator, and a filter core saturation shutdown device.
10. Equipped with a leakage and overload shutdown device to protect the motor.
11. Features phase sequence and phase loss protection, as well as a sudden shutdown safety mechanism.
Optional Models：
1. Available with optional PLC intelligent control, touch screen operation, and dynamic display features.
2. Optional online moisture measurement instrument
3. Optional water ring vacuum pump available.
4. The complete machine structure can be made into portable, fixed, trailer, fully enclosed, awning, canvas tent, and open styles.
※ The appearance, dimensions, and technical specifications of the equipment are for reference only and may vary slightly with the continuous development of the product. Please refer to the actual product.
Four: Workflow
During operation, the vacuum oil purifier first introduces the contaminated oil into the primary filter to remove larger mechanical impurities. It then enters the electric heater, where it is heated to lower the oil's viscosity. Subsequently, through a series of actions including spraying, flash vaporization, and atomization, the moisture in the oil is converted from a liquid to a vapor state, condensed back into liquid droplets through the gas pipeline, and then discharged. At this point, the oil is pumped through the oil pipeline and filtered by a secondary filter and a precision filter. The resulting oil is free of impurities and moisture, meeting the standards for recycled oil use and enabling its reuse, thereby saving oil costs. For deep purification and filtration of the oil, it can be introduced into a regeneration tank to regenerate degraded oil, removing acid values, soaps, and pigments. Refer to Figure 1 for the workflow (the de-acidification unit is configured as needed.)
Section 5: Schematic Diagram of Vacuum Filtration Oil Machine
