TYA Series Vacuum Filtration Oil Purifier
One、Usage:
The TYA series vacuum oil filter is primarily used in mining, metallurgy, cement, petroleum, railway, machinery, chemical, textile, and instrument industries. It processes various types of lubricating oils, hydraulic oils, engine oils, industrial gear oils, refrigeration oils, compressor oils, bearing oils, quenching oils, vacuum pump oils, rolling oils, heat treatment oils, diesel, and kerosene. Given the varying technical requirements and standards for equipment oils, each variety of oil is appropriately configured for the equipment. It significantly contributes to the purification and regeneration of various industrial lubricating oils, extending equipment maintenance cycles and lifespan, and reducing production costs.
TYA series vacuum oil purifiers effectively remove impurities from oils such as moisture, gases, and mechanical contaminants, enhancing the oil's kinematic viscosity, flash point, and emulsifying properties. This allows the oil to quickly restore to the required performance levels, approaching or meeting the relevant standards.
Two、Features:
1. Strong decontamination capability, large-area and deep-layer precision filter materials can remove fine particles in oil, equipped with a strong magnetic filter to remove ferrous impurities.
2. Dehydration and degassing system, utilizing three-dimensional evaporation technology and multi-level oil-water separation techniques, rapidly separating moisture and gas from the oil.
3. The heating system features an optimized pipeline design to ensure even heating and stable oil temperature.
4. Precision filtration system with multi-stage filtration for enhanced purification and high dirt-holding capacity. Effectively removes impurities from oil and is equipped with an automatic filter element contamination detection feature.
5. Automatic temperature control system, automatic liquid level control system, automatic pressure protection system, and superior configuration ensure high-performance operation of the equipment.
6. Online oil filtering, capable of unattended operation; operating status indicated by indicator lights.
7. User-friendly design, low noise, easy operation, long maintenance intervals, low energy consumption, and cost-saving operation.
8. The entire unit is equipped with interlock safety protection, where the oil supply and heating systems are interlocked to prevent adverse effects from incorrect operation.
9. Features a filter element replacement indicator and a filter element saturation shutdown device.
10. Equipped with a leakage and overload shutdown device to protect the motor.
11. Equipped with phase sequence and phase loss protection functions, as well as a sudden shutdown safety mechanism.
Optional Mode：
1. Optional PLC intelligent control, touch screen operation, with dynamic display available based on user requirements.
2. Optional online moisture measurement instrument
3. Optional water ring vacuum pump available.
4. The complete unit structure can be made into mobile, fixed, trailer, fully enclosed, awning, canvas tent, and open styles.
※ The appearance, dimensions, and technical specifications of the equipment are for reference only and may vary slightly with the continuous development of the product. Please refer to the actual item.
Section 4: Workflow
During operation, the vacuum oil purifier first feeds the contaminated oil into an initial filter to remove larger mechanical impurities. The oil then enters an electric heater, where it is heated to reduce viscosity. Subsequently, through a series of actions including spraying, flash vaporization, and atomization, the moisture in the oil is converted from a liquid to a vapor state, condensed back into liquid droplets through the gas pipeline, and then排出. At this point, the oil passes through an oil pump and is filtered through a secondary filter and a precision filter via the oil pipeline, resulting in oil free of impurities and moisture. This oil meets the standards for recycled oil use and can be reused to save on oil costs. For deep purification and filtering of the oil, it can be introduced into a regeneration tank to regenerate degraded oil, removing acid values, soaps, and pigments. Refer to Figure 1 for the workflow (the de-acidification unit is configured as needed.)

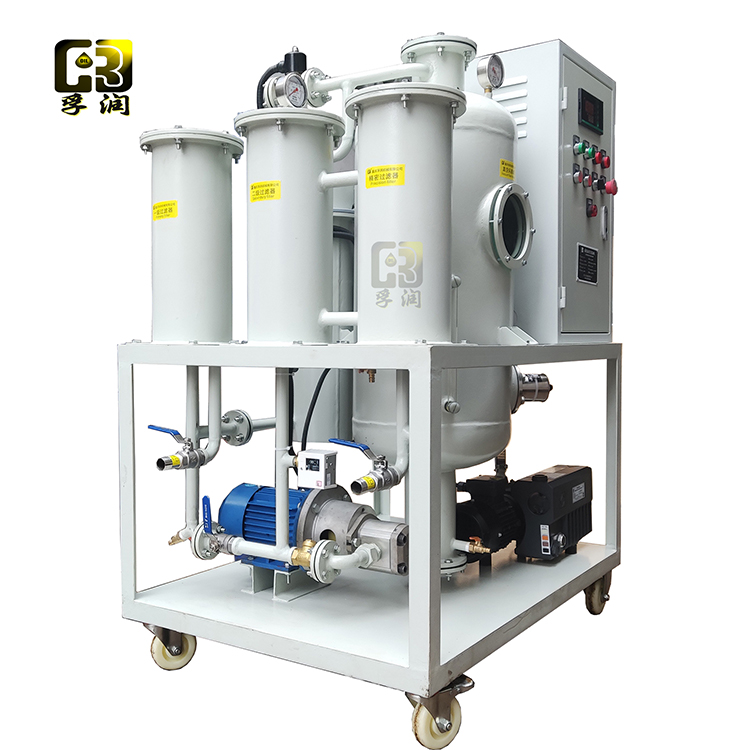

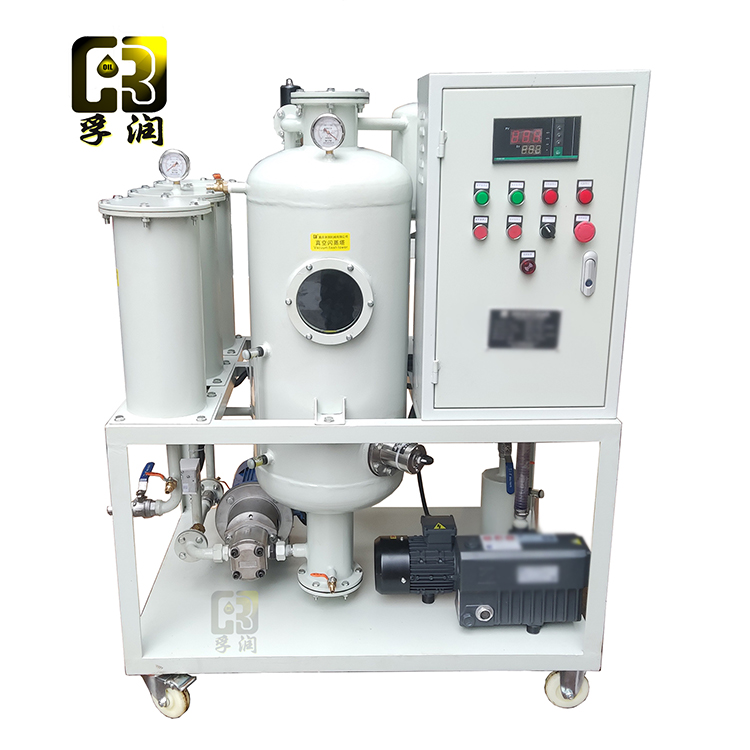

V. Vacuum Oil Filter Machine Illustration
