Usage:

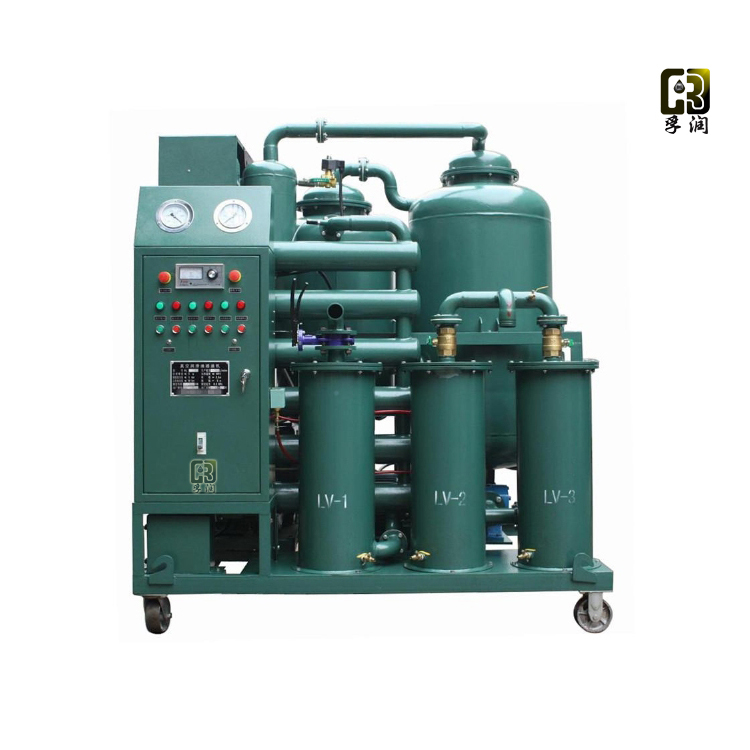

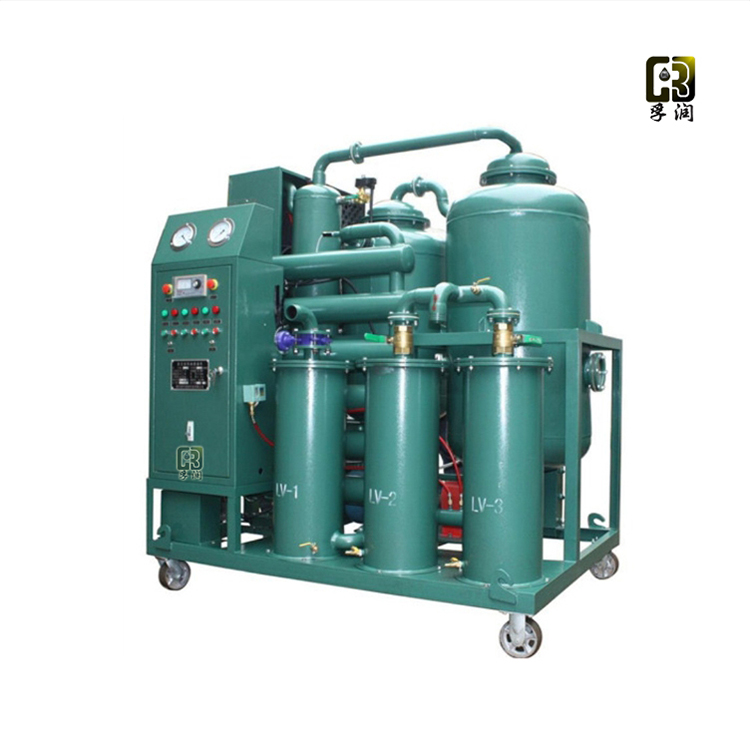

The ZL series transformer oil vacuum degassing machine is a new type of oil purification equipment developed and produced by Chongqing Furen Machinery Co., Ltd. utilizing vacuum drying principles, separation engineering, and precise filtration technology. It is an ideal device for filtering and purifying severely degraded and deteriorated insulating oil.
The ZL series transformer oil vacuum filter is suitable for power plants, power stations, electric power companies, substation industries, metallurgy, petrochemical, and machinery industries. Mainly used for various insulating oils, such as high-voltage transformers, current transformers, capacitors, circuit breakers, and oil switches, for the purification of transformer oil. The equipment can purify deteriorated transformer, transformer, and oil switch oils without interrupting power supply. It not only de-gases, dehydrates, and removes impurities but also has the function of removing impurities, acid value, and reducing dielectric loss from insulating oil, restoring the oil's service performance.
Features:
High-efficiency degassing and dehydration system, utilizing three-dimensional flash vaporization technology, quickly removes moisture and gases from the oil.
The heating system employs an optimized pipeline design, ensuring even heating and stable oil temperature.
Precision filtration system, multi-stage filtration with increasing density, high dirt-holding capacity. Effectively removes impurities from oil and features an automatic detection function for filter element contamination.
Automatic temperature control system, automatic liquid level control system, automatic pressure protection system, and exquisite configuration ensure high-performance operation of the equipment.
Online oil filtering, can operate unmanned, with operational status indicated by indicator lights.
User-friendly design, low noise, easy operation, long maintenance intervals, low energy consumption, saving operation costs.
The entire unit is equipped with interlocked safety protection, with the oil filling and heating systems interlocked to prevent adverse effects from incorrect operation.
Filter change indicator and core saturation shutdown device are available.
Equipped with a leakage and overloading shutdown device to protect the motor.
Phase sequence and phase-loss protection features, as well as a sudden shutdown safety mechanism.
Optional Modes:
PLC intelligent control, touch screen operation, and dynamic display are optional based on customer requirements.
Select online moisture detection instruments, online pressure resistance value detectors.
Optional water ring vacuum pump available.
Optional flowmeters with cumulative function.
The complete structure can be made into portable, fixed, trailer-mounted (half or full axle), fully enclosed, awning-style, canvas tent, and open-style.
※The equipment's appearance, dimensions, and technical specifications are for reference only and may slightly vary with the continuous development of the product. Please refer to the actual product.
