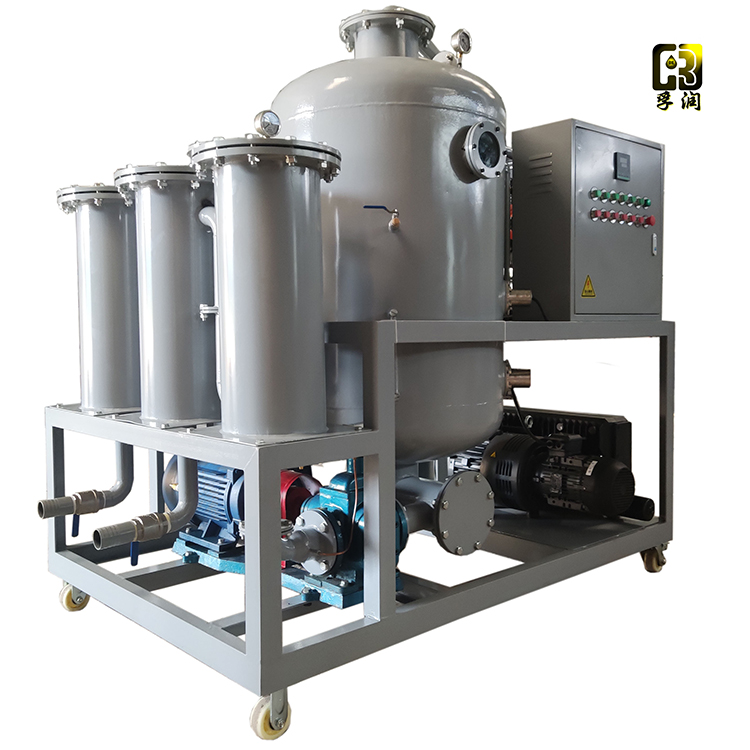

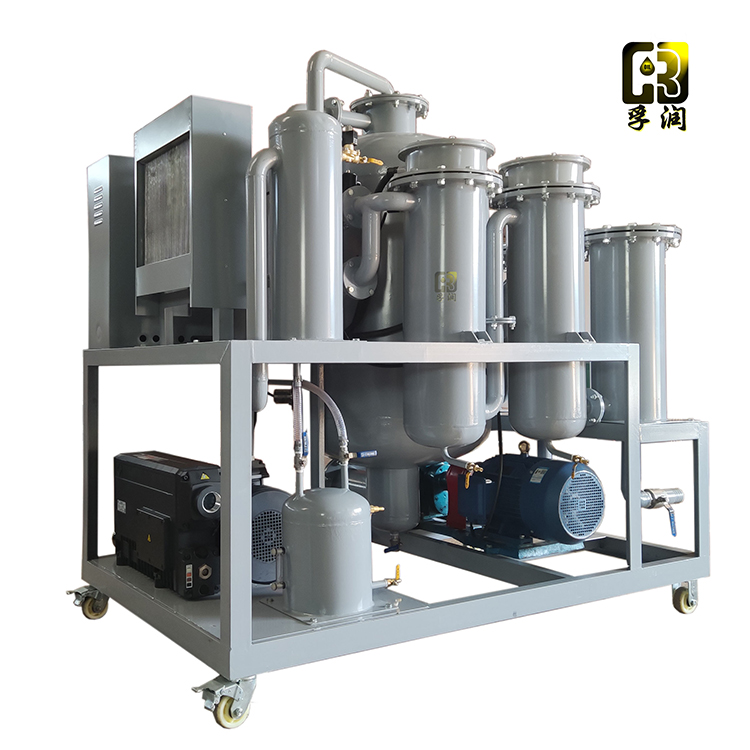

TYA Series Lubricant Filter Machines
One、Usage:
The TYA series oil filter is primarily used in mining, metallurgy, cement, oil, rail, machinery, chemical, textile, and instrument industries. It processes various types of lubricating oils, hydraulic oils, engine oils, industrial gear oils, refrigeration oils, compressor oils, bearing oils, quenching oils, vacuum pump oils, rolling oils, heat treatment oils, diesel, kerosene, and more. Given the varying technical requirements and standards for oils used in different equipment, each type of equipment has been configured accordingly. It significantly contributes to the purification and regeneration of various industrial lubricants, extending equipment maintenance cycles and lifespans, and reducing production costs.
TYA series oil filter machines effectively remove impurities from oil products such as water, gases, and mechanical contaminants, enhancing the oil's kinematic viscosity, flash point, and emulsifying properties. This quickly restores the oil to the required performance specifications, approaching or reaching the relevant standards.
Two、Features:
1. Strong decontamination capability, large-area, deep-layer precision filter materials can remove fine particles from oil, while equipped with a strong magnetic filter to remove ferrous impurities.
2. Dehydration and degassing system, utilizing three-dimensional evaporation technology and multi-level oil-water separation techniques, quickly separates moisture and gases from the oil.
3. The heating system utilizes an optimized pipeline design to ensure even heating and stable oil temperature.
4. Precision filtration system with multi-stage filtration for enhanced purification and high dirt-holding capacity. Effectively removes impurities from oil and features an automatic detection function for filter element contamination.
5. Automatic temperature control system, automatic liquid level control system, automatic pressure protection system, and superior configuration ensure high-performance operation of the equipment.
6. Online oil filtering, capable of unattended operation; the operating status is indicated by the LED lights.
7. User-friendly design with low noise, easy operation, long maintenance intervals, low energy consumption, and cost-saving operation.
8. The entire unit is equipped with interlocked safety protection, with the oil filling and heating systems interlocked to prevent adverse effects from accidental operation.
9. Equipped with a filter core replacement indicator and a filter core saturation shutdown device.
10. Equipped with a leakage and overload shutdown device to protect the motor.
11. Equipped with phase sequence and phase loss protection features, as well as a sudden shutdown safety mechanism.
Optional Mode：
1. Available with PLC intelligent control options, touch screen operation, and dynamic display features as per customer requirements.
2. Optional online moisture detection instrument
3. Optional water ring vacuum pump available.
4. The complete machine structure can be made into portable, fixed, trailer-mounted, fully enclosed, awning-style, canvas canopy, and open-style.
※ Dimensions, appearance, and technical specifications of the equipment are for reference only and may vary slightly with the continuous development of the product. Please refer to the actual product for accuracy.
Four: Workflow
During operation, the vacuum oil purifier first feeds the contaminated oil into the preliminary filter to remove larger mechanical impurities. The oil then enters the electric heater, where it is heated to reduce viscosity. Subsequently, through a series of actions including spraying, flash vaporization, and atomization, the moisture in the oil is converted from a liquid to a vapor state, condensed back into liquid droplets through the gas pipeline, and then expelled. At this point, the oil passes through an oil pump and is filtered through a secondary filter and a precision filter via the oil pipeline, resulting in oil free of impurities and moisture. This oil meets the standards for recycled oil use and can be reused, thereby saving oil costs. For deep purification and filtration of the oil, it can be introduced into a regeneration tank to regenerate degraded oil, removing acid value, soaps, and pigments. Refer to Figure 1 for the workflow (the de-acidification unit is configured as needed.)
V. Schematic Diagram of Vacuum Oil Filter Machine
