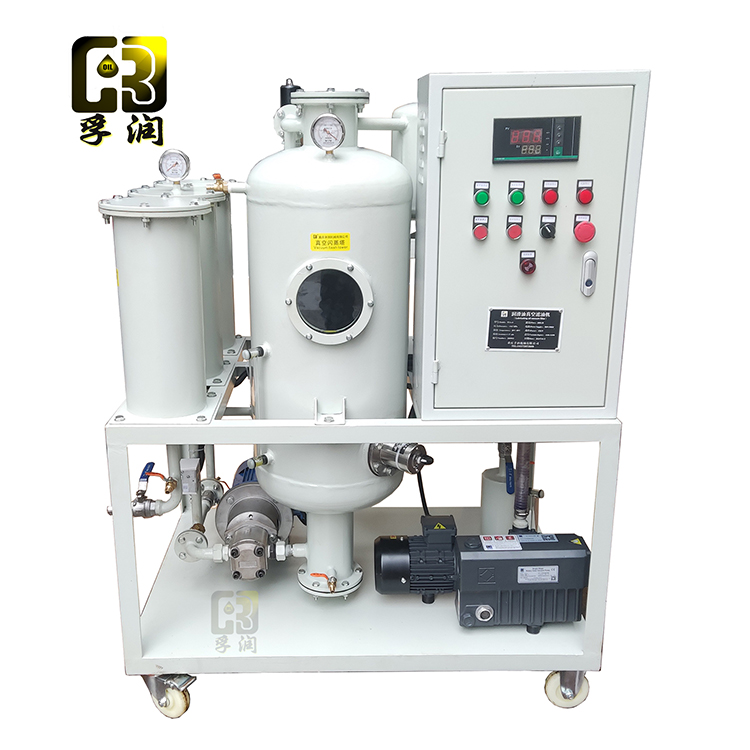

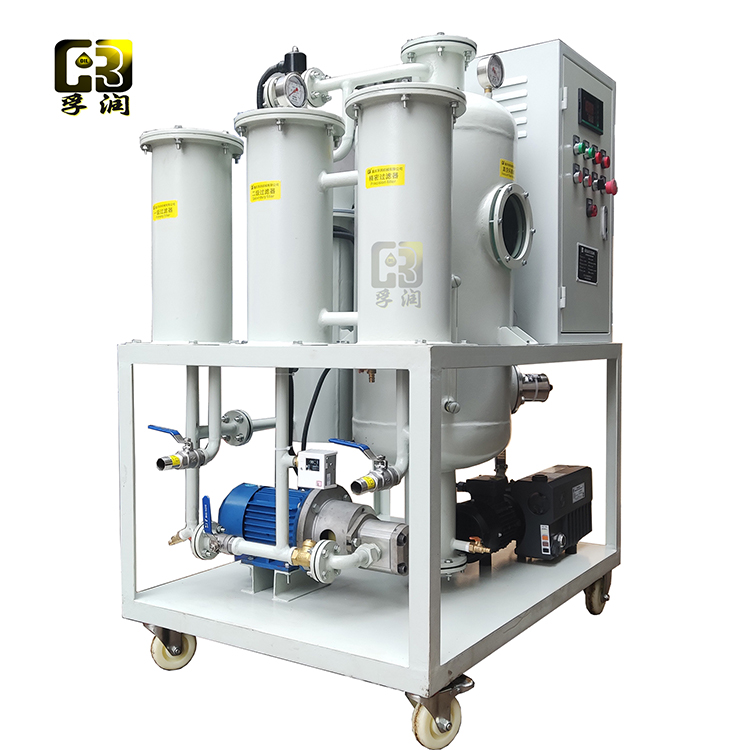

TYA Series Lubricant Filter Machines
One、Usage:
TYA series oil filter machines are primarily used in various industrial sectors such as mining, metallurgy, cement, oil, rail, machinery, chemical industry, textiles, and instruments. They handle a variety of lubricating oils, hydraulic fluids, diesel engine oils, industrial gear oils, refrigeration oils, compressor oils, bearing oils, quenching oils, vacuum pump oils, rolling oils, heat treatment oils, diesel, and kerosene. Given the different technical requirements and standards for oils used in various equipment, each machine is configured for each type of oil. They play a significant role in purifying and regenerating various industrial lubricating oils, extending the maintenance cycle and service life of equipment, and reducing production costs.
TYA series oil filter machines effectively remove contaminants from oil products such as moisture, gases, and mechanical impurities, enhancing the oil's kinematic viscosity, flash point, and emulsifying properties. This quickly restores the oil to the required performance specifications, approaching or meeting the relevant standards.
Two、Features:
1. Strongly effective in removing impurities, large-area and deep-layer precision filter materials can remove fine particles from oil, while a strong magnetic filter is also equipped to remove ferrous impurities.
2. Dehydration and degassing system, featuring a three-dimensional evaporation technology and multi-level oil-water separation technology, rapidly separating moisture and gases from the oil.
3. The heating system features an optimized pipeline design, ensuring even heating and stable oil temperature.
4. Precise filtration system with multi-stage filtration for enhanced purification and high dirt-holding capacity. Effectively removes impurities from oil and features an automatic detection function for filter element contamination.
5. Automatic temperature control system, automatic liquid level control system, automatic pressure protection system, and excellent configuration ensure high-performance operation of the equipment.
6. Online oil filtering, capable of unattended operation; operating status indicated by indicator lights.
7. User-friendly design with low noise, easy operation, long maintenance intervals, low energy consumption, and cost savings in operation.
8. The entire unit is equipped with interlock safety protection, with the oil inlet and heating system interlocked to prevent adverse effects caused by improper operation.
9. Equipped with filter element change indicator, filter element saturation shutdown device.
10. Equipped with a leakage and overloading shutdown device to protect the motor.
11. Equipped with phase sequence and phase loss protection, as well as a sudden shutdown safety mechanism.
Optional Mode：
1. Optional PLC intelligent control, touch screen operation, with dynamic display available based on user requirements.
2. Optional online moisture measurement instrument
3. Optional water ring vacuum pump available.
4. The complete machine structure can be made into mobile, fixed, trailer, fully enclosed, awning, canvas tent, and open styles.
※ The appearance, dimensions, and technical specifications of the equipment are for reference only and may slightly vary with the continuous development of the product. Please refer to the actual product for accuracy.

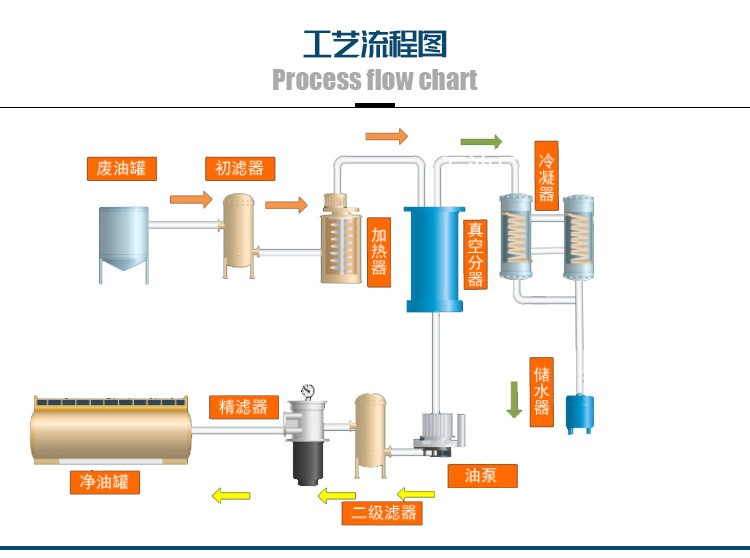

Four: Workflow
During operation, the vacuum oil purifier first introduces the contaminated oil into the preliminary filter to remove larger mechanical impurities. The oil is then heated by an electric heater, reducing its viscosity through temperature increase. Subsequently, through a series of actions including spraying, flash vaporization, and atomization, the moisture in the oil is converted from a liquid to a vapor state, condensed back into liquid droplets through the gas pipeline, and then排出. At this point, the oil passes through an oil pump and is filtered through a secondary filter and a precision filter via the oil pipeline, resulting in oil free of impurities and moisture. This oil meets the standards for recycled oil use and can be reused, thereby saving oil costs. For deep purification and filtering of the oil, it can be introduced into a regeneration tank to regenerate degraded oil, removing acid value, soaps, and pigments. Refer to Figure 1 for the workflow (the de-acidification unit is configured as needed.)

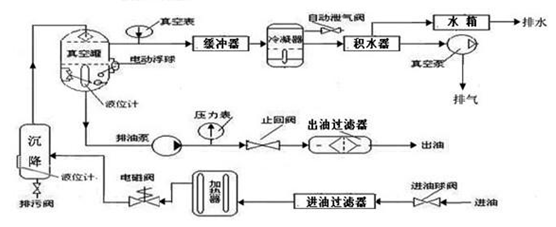

V. Schematic Diagram of Vacuum Oil Filter Machine
