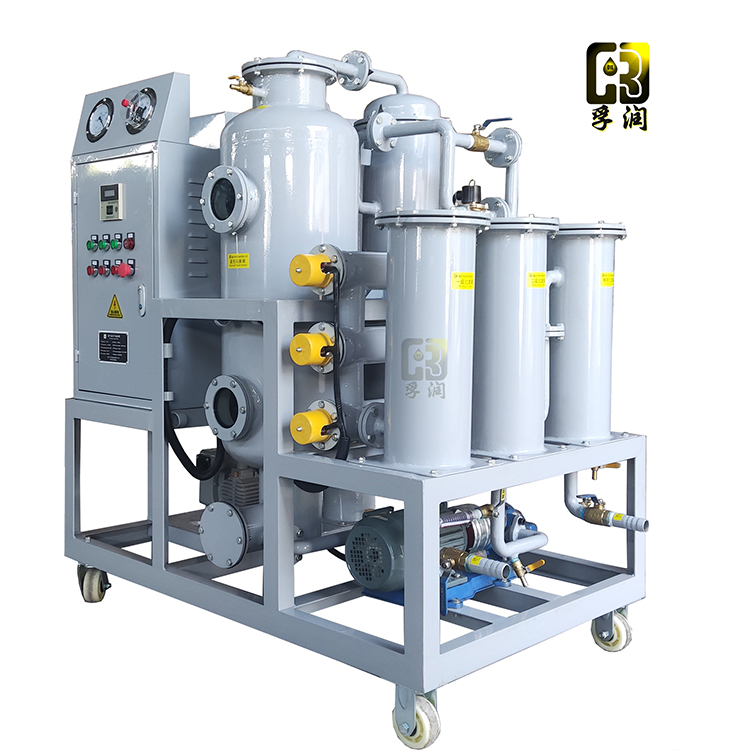

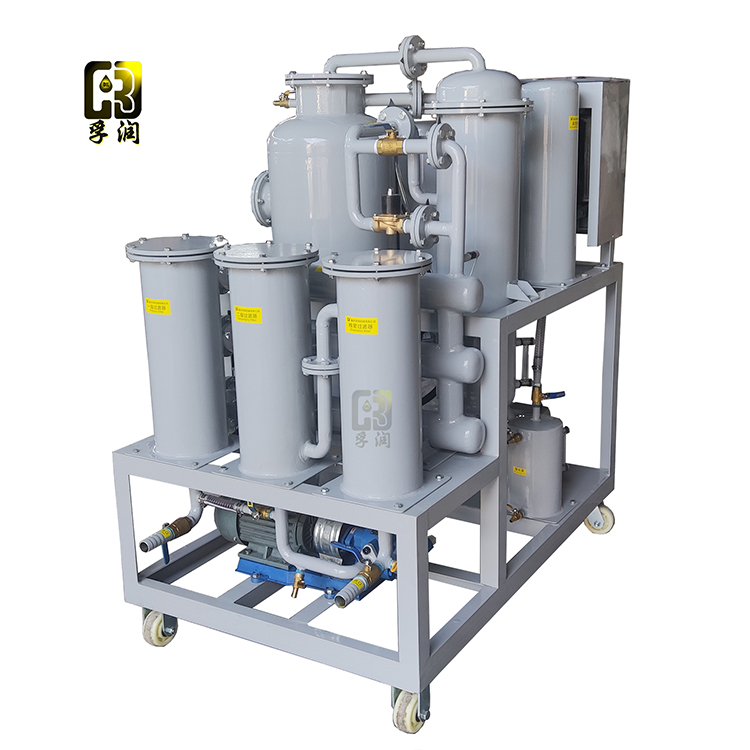

TY Series Turbine Oil (Steam Turbine Oil) Vacuum Filtration Machine
Application:
TY Series Turbine Oil (Steam Turbine Oil) Vacuum Filtration Machines, specifically designed for purifying turbine oil (steam turbine oil) and low-viscosity circulating lubricating oil in generator sets. Suitable for industries such as power, chemical, petroleum, metallurgy, mining, railway, aviation, shipping, and machinery processing. Primarily targets the removal of water, gases, acid value, mechanical impurities, and solid particles from contaminated oil. Solves issues caused by shaft seal leakage, steam seal steam leakage, oil cooler leakage, poor de-watering effect of oil purification equipment in existing generator sets, leading to rusting of components, failure of speed regulation, and oil contamination affecting effective and normal operation.
TY Series Turbine Oil Vacuum Filtration Machines, in addition to dehydrating, demulsifying, and purifying filtration applications, can also be connected in series with power generation sets for online operation. They regularly remove various solid particles and mechanical impurities that affect the normal operation of the oil in the power generation set pipelines and equipment. The turbine oil (turbine oil) processed by the clean oil machine meets the standard GB/T7596-2000 for Turbine Oil Quality during Power Plant Operation.
Features:
This series of equipment utilizes reinforced oleophilic and hydrophobic technology to alter the oil-water interface. It combines the advantages of gravity separation, vaporization, coalescence, and vacuum separation into one.
Highly effective in removing impurities, the large-area, deep-layer precision filter material can remove fine particles from oil.
Dehydration and degassing systems, utilizing three-dimensional evaporation technology and multi-level oil-water separation techniques, quickly separate moisture and gases from the oil.
The heating system features an optimized pipeline design to ensure even heating and stable oil temperature.
Precision filtration system, multi-stage filtration for enhanced density, high dirt-holding capacity. Effectively removes impurities from oil and features an automatic detection function for filter element contamination.
Advanced automatic temperature control system, automatic liquid level control system, automatic pressure protection system, and exquisite configuration ensure high-performance operation of the equipment.
Available with explosion-proof devices upon customer's request, featuring explosion-proof grades of ExdII BT4 and ExdII CT4.
Online oil filtering, capable of unattended operation; operating status indicated by indicator lights.
User-friendly design, low noise, easy operation, long maintenance intervals, low energy consumption, cost-effective operation.
The entire unit is equipped with interlocked safety protection, with the oil filling and heating systems interlocked to prevent adverse effects from improper operation.
Filter change indicators and core saturation shutdown devices are available.
Equipped with a leakage and overload shutdown device to protect the motor.
Sequence protection and phase loss protection features, as well as a sudden shutdown safety mechanism.
※ The equipment's appearance, dimensions, and technical specifications are for reference only and may slightly vary with the continuous development of the product. Please refer to the actual product.
Section 4: Workflow
During operation, the vacuum oil purifier first sends the contaminated oil to the preliminary filter to remove larger mechanical impurities. The oil then enters the electric heater, where it is heated to reduce viscosity. Subsequently, it undergoes a series of actions including spraying, flash vaporization, and atomization to convert the moisture in the oil from a liquid to a vapor state, which is then condensed into liquid droplets and expelled through the gas pipeline. The oil at this point is pumped through the oil pipeline and filtered by a secondary filter and a precision filter, resulting in oil that is free of impurities and moisture. This oil meets the standards for recycled oil use and can be reused to save on oil costs. For deep purification and filtration, the oil can be introduced into a regeneration tank to regenerate degraded oil, removing acid values, soaps, and pigments. Refer to Figure 1 for the workflow (the de-acidification unit is configured as needed.)
Section 5: Schematic Diagram of Vacuum Oil Filter Machine
