Application Range

1. Suitable for explosive gas environment in Zones 1 and 2 hazardous areas.

2. Suitable for II A, II B, II C explosive gas environments.

3. Suitable for combustible dust environments in Zones 20, 21, and 22.

4. Suitable for environments with temperature categories T1-T6.

5. Suitable for explosive hazardous environments in the oil and petrochemical, chemical, brewing, pharmaceutical, paint, textile, dyeing and finishing, and facility industries.

Product Features:

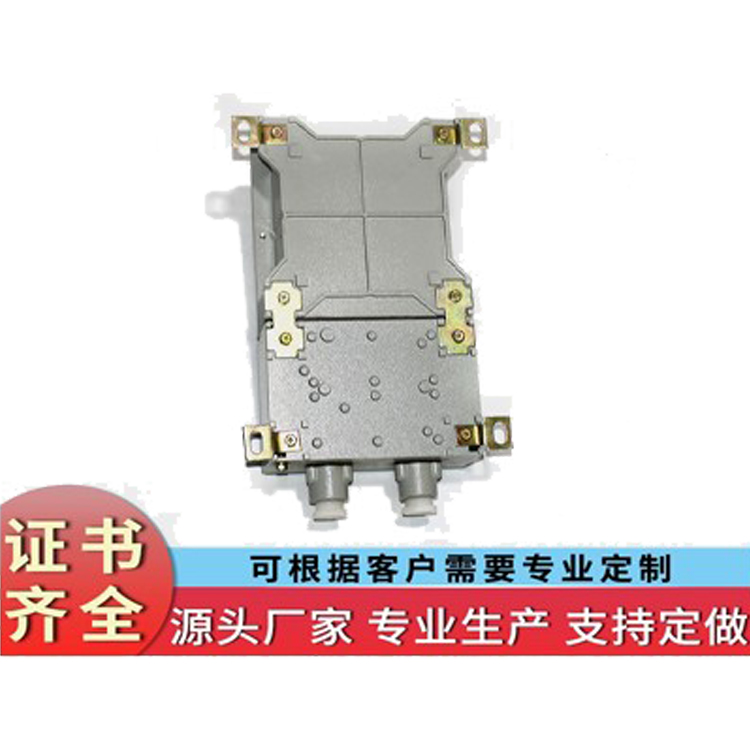

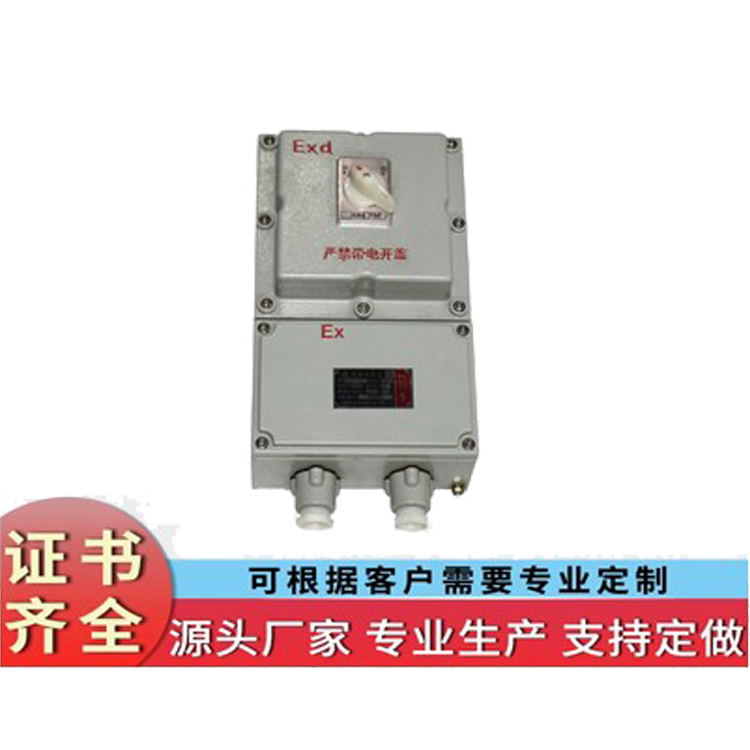

1. This product is a Senon explosion-proof item, which can internally accommodate explosion-proof buttons, explosion-proof indicator lights, explosion-proof ammeters, explosion-proof switches, explosion-proof voltmeters, and various other instruments and control components.

2. Can operate on the box surface or remotely, or operate from both locations.

3. Available for customer's request to add a protective case, which can display the internal control part and offers high outdoor protection.

All fasteners are made of corrosion-resistant 304-316L stainless steel.

Technical Specifications:

Explosion-proof marking: ExdIIA - C T4 - T6 DIP A20, A21 TA, T4 - T6

Rated Voltage: AC 220-380V DC 12V-127V

Corrosion Resistance Grade: F2/WF2

Protection Rating: IP54, IP56, IP65

Thread Specifications: DN15 - DN100/G1/2' - G4'

Flow direction: Inflow upward, outflow downward; left inflow, right outflow (unrestricted)

Line specification: 4mm - 80mm (detailed drawings will be provided)

Installation and Maintenance

1. Check that the data matches the actual usage before installation.

2. Inspect all fasteners for looseness; if loose, tighten them accordingly.

3. Ensure the internal and external grounding of the junction box is reliable and effective.

4. During installation, the cable must be passed through a sealing ring, a metal washer, and then tightened with a locknut to ensure sealing and prevent the cable from becoming loose. Unused terminal connections should be sealed with a sealing ring and a metal washer.

5. Disconnect the power source before opening the cover during maintenance checks.
