Application Scope

1. Suitable for explosive gas environments in Zones 1 and 2 hazardous areas.

2. Suitable for IIA, IIB, IIC explosion-proof gas environments.

3. Suitable for combustible dust environments in Zones 20, 21, and 22.

4. Suitable for environments in temperature groups T1-T6.

5. Suitable for explosive and hazardous environments in the petrochemical, chemical, winemaking, pharmaceutical, paint, textile, dyeing, and facility industries.

Product Features:

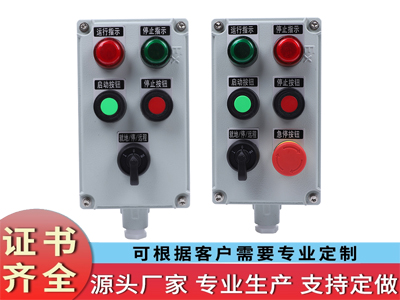

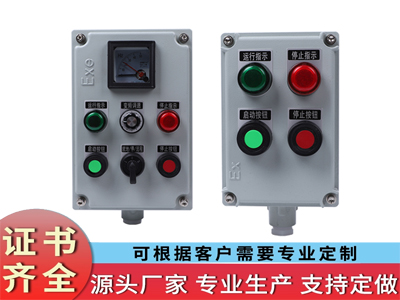

1. This product is a SenEn explosion-proof model, featuring the capability to house explosion-proof buttons, indicator lights, current meters, switches, voltage meters, and other instruments and control components as required.

2. Can operate on the box surface or remotely, or operate from both locations.

3. Available for installation of protective cases upon customer request, featuring display of internal control sections with high outdoor protection effectiveness.

All fasteners are made of corrosion-resistant 304-316L stainless steel.

Technical Specifications:

　　Explosion-proof Mark: ExdIIA——C T4——T6 DIP A20, A21 TA, T4——T6

Rated Voltage: AC 220-380V, DC 12V-127V

Corrosion Resistance Grade: F2/WF2

Protection Level: IP54, IP56, IP65

Thread Specifications: DN15 - DN100/G1/2' - G4'

Flow Direction: Inflow at the top, outflow at the bottom; left inflow, right outflow (unrestricted)

Line Specifications: 4mm - 80mm (drawings will indicate)

Installation and Maintenance

Before installation, verify that the data matches the actual usage.

2. Inspect all fasteners for looseness; if any are loose, tighten them accordingly.

3. The internal and external grounding of the junction box must be good and reliable.

4. During installation, the cable must be threaded through a seal, a metal washer, and then secured with a tightening nut to ensure a seal and prevent the cable from becoming loose. Unused terminal ports should be sealed with a seal and a metal washer.

5. Disconnect power before opening the cover for maintenance inspection.
