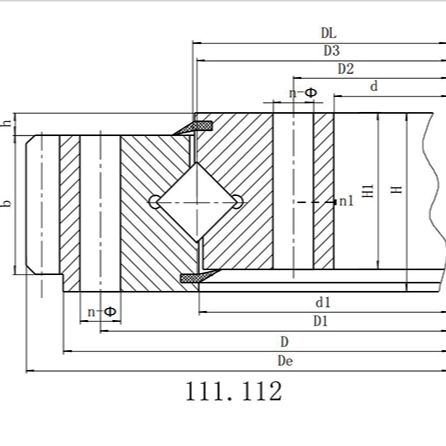

(11 Series) Single-row Crossed Roller Spherical Plain Bearings - External Tooth Type

Structural Features, Performance, Application Range

Single-row crossed roller bearing, consisting of two rings, features compact structure, light weight, high manufacturing precision, small assembly clearance, and high installation precision requirements. The rollers are arranged in a 1:1 crossed pattern, capable of simultaneously withstanding axial forces, overturning moments, and significant radial forces. Widely used in lifting and transportation equipment, as well as construction machinery products.
