Product Introduction

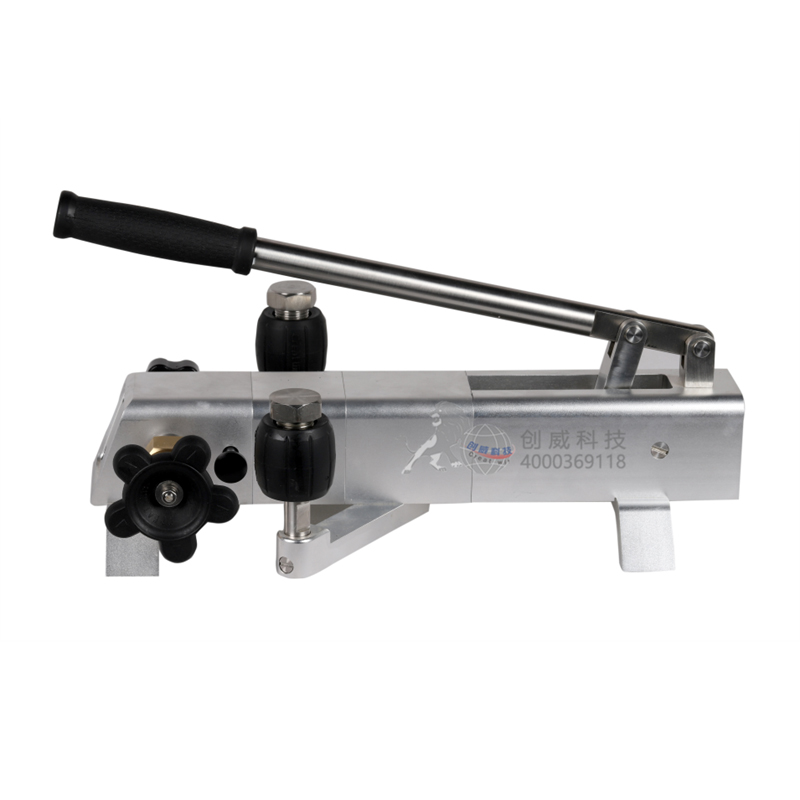

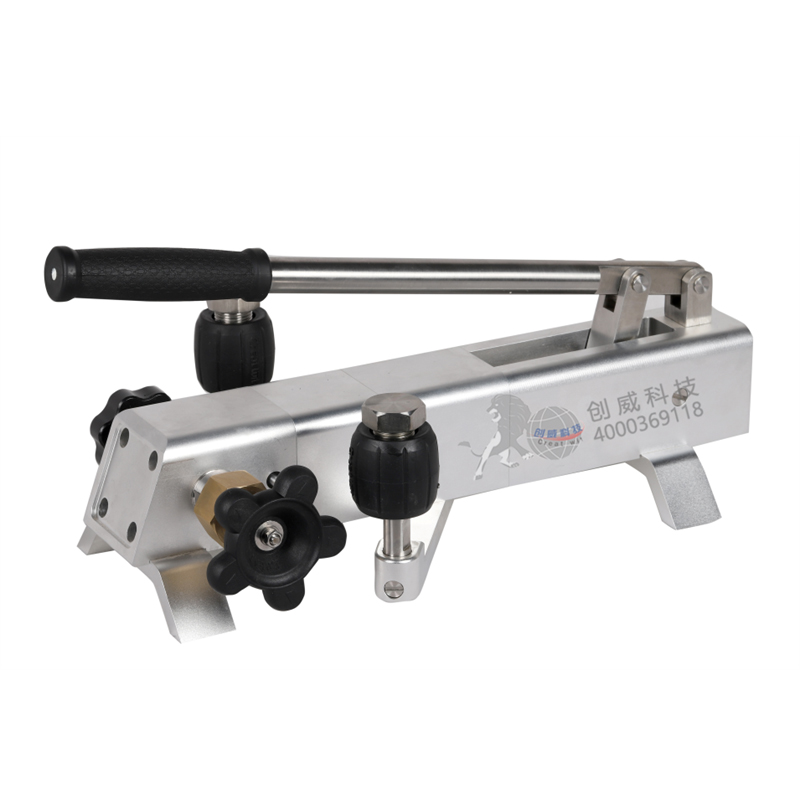

Portable pressure source features a compact structure, easy to carry, and leakage-resistant. It utilizes a combination of lever and screw fine-tuning for pressure application, providing a stable and reliable pressure supply. It is suitable for calibrating transmitters, pressure switches, pressure gauges, pressure sensors, etc., in the range of 0.095～14MPa in laboratories or industrial sites. Meets industry standards.

Product Application

Manual portable pressure pumps serve as pressure sources for pressure gauges within the range of 0.095MPa to 14MPa for on-site calibration. When used in conjunction with the CWY122 intelligent digital pressure calibrator, they provide a solution for calibrating various pressure transmitters, pressure switches, pressure gauges, and other pressure instruments and meters in industrial settings.

Technical Specifications

△ Model: V18

△Pressure range: (-0.095 ~ 14) MPa

△Medium: Air

△Adjustment Range: 10 Pa

△Nominal External Dimensions: 360mm x 204mm x 100mm

△Weight: 5 kg

△Pressure connection: M20*1.5 (2 pcs)
