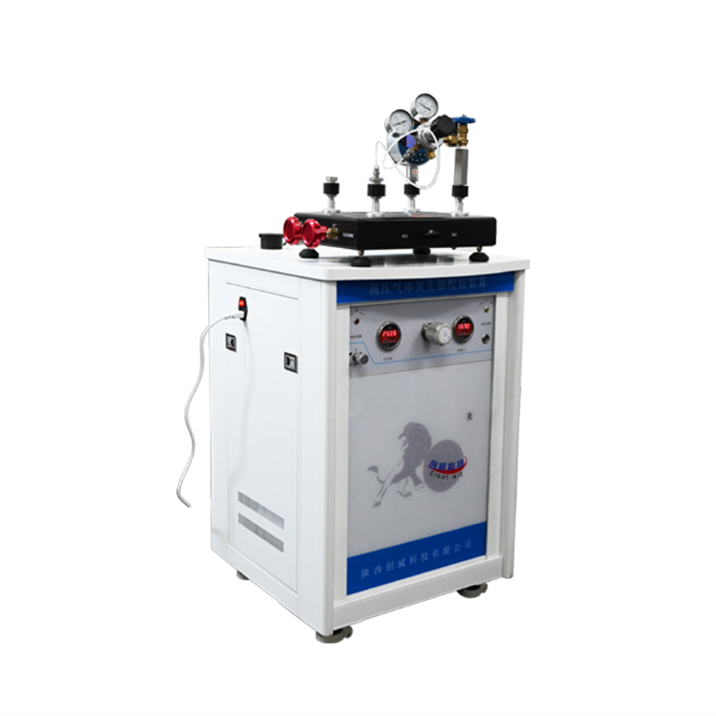

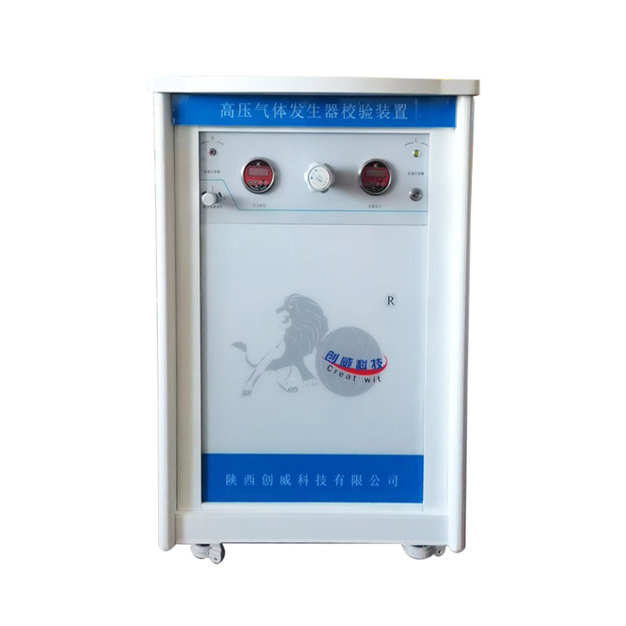

Continuous high-pressure gas workstations provide stepless pressure regulation output. The pressure station serves as the pressure source, obtaining medium to high-pressure gas pressure. It uses volume tanks for automatic pressure generation and storage, allowing for adjustable output pressure. This workstation maintains a constant pressure source with the required upper range for pressure calibration at all times. For frequent batch pressure gauge calibration, this system is more time and labor-saving than manual or electrically powered pressure pumps, enhancing calibration efficiency and ensuring pressure does not exceed limits, making it an excellent assistant in calibration work.

Key Features:

Ø Built-in electric air pump, no need for external gas source or boost, automatically generates gas pressure.

Flow Regulation: Equipped with an internal gas storage tank and a flow control valve, capable of controlling the output gas flow and maintaining a constant pressure output with load.

High-pressure gas sources produce compressed air with gas pressure, which can be stepped out at different pressure levels.

Overload-proof, non-overpressurized, no need for filtering.

Ø Compatible with pressure gauge mounting brackets, gas regulators, and can be connected to other pressure calibration benches. Gas source features a unidirectional output, preventing reverse entry into other mediums, ensuring the workbench remains in a gaseous medium state.

Clean System: Single-cycle gas pressure output

Wastewater System: Single-loop setup, directly discharge used gases from the pipeline

Control Features: Upper and Lower Limit Settings, Automatic Start/Stop for Pressure Compensation

Material Used: Aluminum Alloy for cabinet, Cold Rolled Steel Plate, Wooden Structure for countertop

Configuration Expansion: Pre-allocated 2U/3U chassis dimensions for use with full automatic pressure controllers and other instruments

Surface Treatment: Phosphate primer coating, powder coating on the exterior, color RAL 7035, acrylic crystal panel

Mobile Condition: Equipped with (Fuma wheel) silent casters

Cabinet Security: Equipped with a dedicated anti-theft lock to prevent unauthorized access

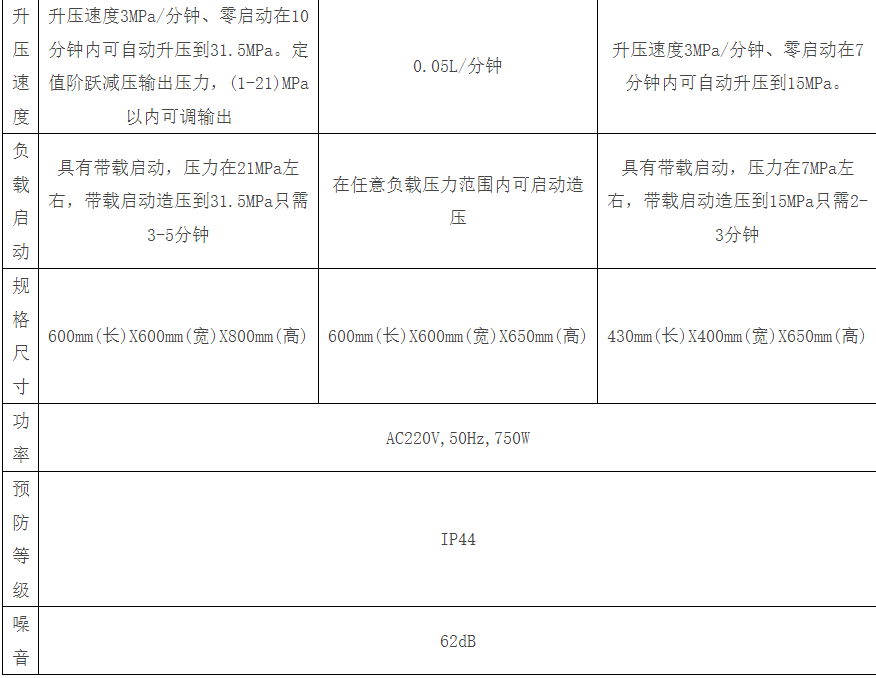

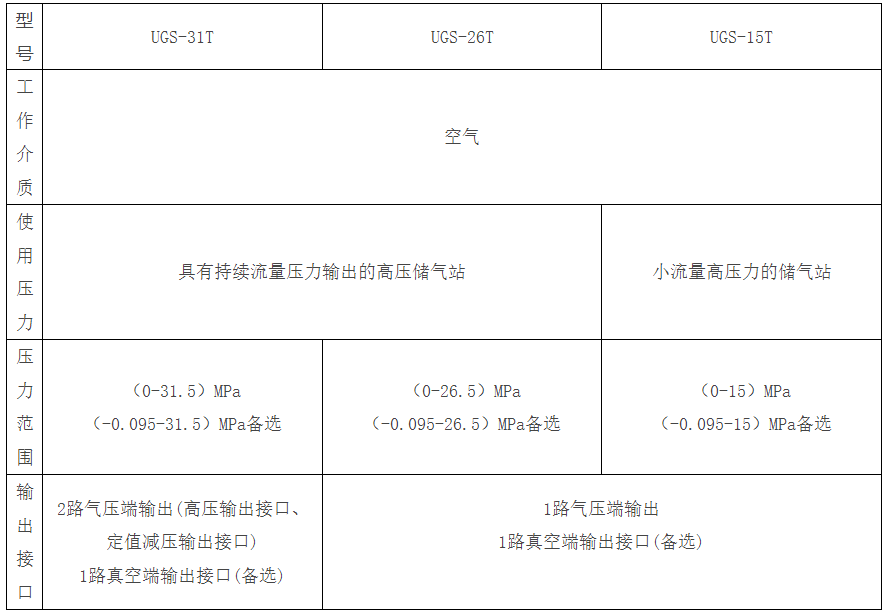

Parameters for each pressure range section

Integrated Verification Solution:

Suitable for use with fully automatic controllers and various verification bench integration. Used for calibration of measurement transfer, general pressure gauges, oil-ban pressure gauges, pressure switches, pressure sensors, gas regulators, and more.
