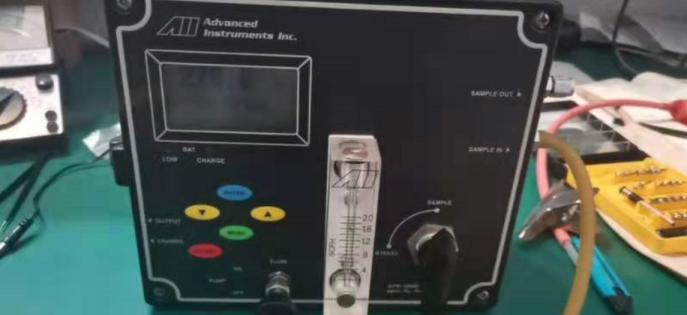

For the repair issues of the Advanced Instruments Inc. GPR 1200 Analyzer, the following is a systematic solution and step-by-step guide:
1. Fault Diagnosis
Common Fault Phenomena:
Boot failure/no display
Abnormal measurement results (such as large deviations, poor repeatability)
Communication Error (Failed to Connect to Computer or Software)
Mechanical parts jamming (such as injection needles, stirrers)
Alarm alerts (such as sensor errors, abnormal temperatures)
Initial investigation:
Power Check: Verify that the power cord and screw are in good condition and the output voltage meets the specifications (refer to manual).
Sensor Calibration: If data is abnormal, attempt to execute the built-in calibration program (requires standard solution).
Connectivity Test: Replace the USB/RS-232 cable, check driver or software settings.
2. Repair Procedures
Hardware Maintenance
Power module failure:
Check the power board output with a multimeter (e.g., ±12V, 5V).
Replace damaged capacitors or voltage regulators IC (soldering required).
Sensor Issues:
Clean optical sensors or electrodes (avoid scratching).
If the pH/conductivity sensor has aged, replace with the original manufacturer's parts (e.g., AII part# XYZ 123).
Mechanical component maintenance:
Lubricate tracks or gears (using instrument-grade lubricant).
Check if the sample needle is clogged, and treat it with an ultrasonic cleaner.
Software/Firmware Issues
Restore Factory Settings
Enter the service menu (such as by holding down "Menu+Power" to activate), then select the reset option.
Firmware Upgrade:
Download the firmware and flash it via USB or serial port (ensure power is not interrupted).
3. Support and Alternative Solutions
Contact Advanced Instruments Inc.:
Technical Support Hotline: +1 (800) XXX XXXX (USA).
Please provide the equipment serial number (located on the body label) for targeted assistance.
Alternative Repair Channels:
Authorized Service Provider List: Refer to [Service Centers]()
Third-party repair company (must confirm compatibility with GPR 1200 model).
4. Safety and Precautions
Anti-static measures: Wear an earthing bracelet before maintenance.
Avoid mishandling: Record original settings (such as calibration parameters) before disassembly.
Waste Parts Disposal: Dispose of in accordance with electronic waste regulations
