I. Technical Specifications:

Power Source: AC 220V ±10% 50Hz

2. Heating Power: 1.6 kW

3. Temperature Control Accuracy: ±0.5℃

4. Temperature Control Range: Room temperature to 99.9℃

5. Stirrer Motor: 15W

II. Performance Features

1. The instrument is composed of a bath tank, temperature control gauge, mixing motor, heater, and temperature control circuit. The bath tank is made of stainless steel, offering advantages such as corrosion resistance and a long service life.

2. The temperature control section is composed of a digital temperature controller and related circuits. The temperature controller is easy and intuitive to adjust the temperature, allowing for a direct display of the bath tub temperature and precise control. (For specific operating steps of the temperature controller, please refer to the temperature controller's manual.) The temperature control circuit maintains a constant temperature of the medium inside the bath tub, while the stirrer motor ensures uniform temperature distribution, resulting in a higher temperature stability accuracy of the medium within the bath tub.

3. The instrument features a compact overall structure, reliable operation, and is fully adaptable to the needs of laboratory work.

4. LiquefiedOil & GasCopper Sheet Corrosion Tester is based on SH/T0232 "Liquefied Petroleum Gas Storage Tank Coating System"Petroleum GasCorrosion Test Method for Copper Sheets, designed and manufactured for use in liquefaction.Petroleum GasAssessment of copper sheet corrosion extent.

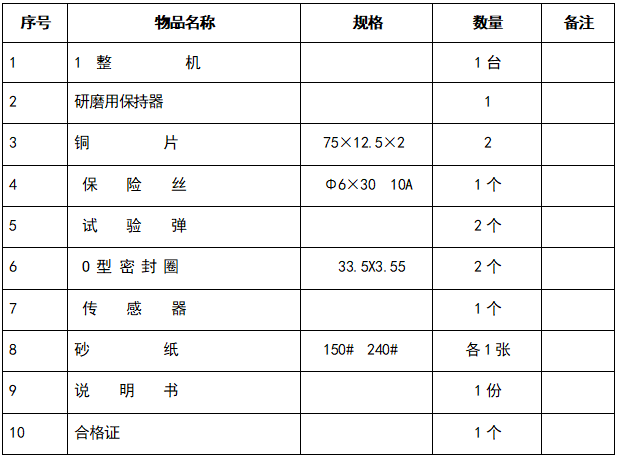

Section 3: Configuration List
