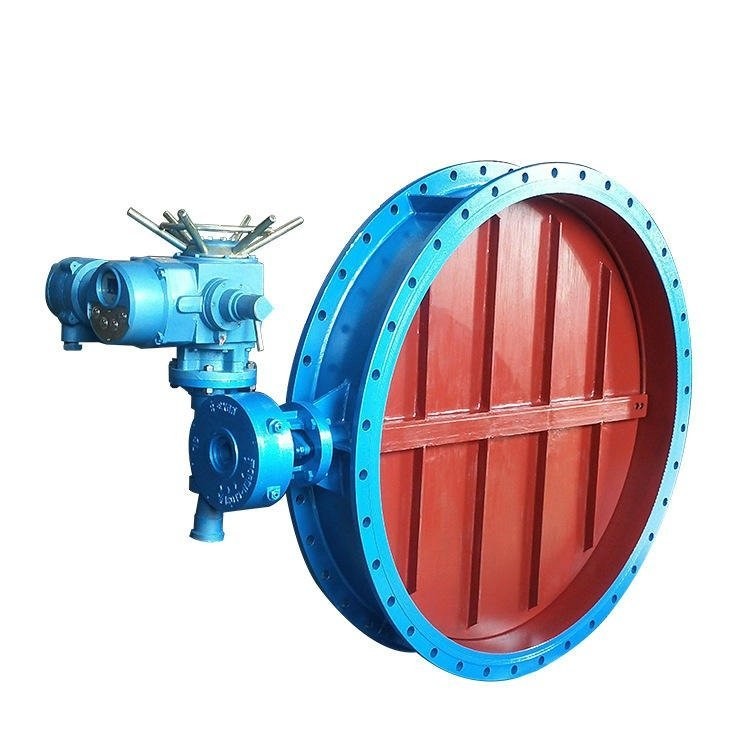

Large Diameter Electric Actuated Butterfly Valve is a butterfly valve driven by an electric actuator, primarily used for ventilation regulation, suitable for adjusting various gas, gas, and duct processes. It features a compact structure, light weight, and easy installation, particularly suitable for pipeline systems with limited space.

Structural Features

Compact Design: The large-diameter electric actuated butterfly valve features a mid-line butterfly plate and short structural steel plate welding design, offering a compact structure, light weight, easy installation, low flow resistance, high flow capacity, and resistance to the effects of high-temperature expansion, with easy operation.

Electromagnetic actuator: Driven by an electromagnetic actuator, it achieves the opening and closing of the valve, offering flexible, convenient, and labor-saving operation, unaffected by the medium pressure levels.

‌Sealing Performance: Utilizes stainless steel "U" type sealing rings, offering excellent sealing and elasticity, maintaining superior sealing even under high and low temperatures.‌

‌Material Variety: Valve bodies can be selected according to the operating conditions and medium requirements, such as carbon steel, cast steel, stainless steel, etc., offering excellent corrosion and wear resistance._

Application Scenario

Large diameter electric butterfly valves are widely used on pipelines with medium temperatures ≤300℃ and nominal pressure of 0.1Mpa in the production processes of building materials, metallurgy, mining, and power industries. They are used for connecting, opening, or regulating the flow of media. Particularly in high-flow, high-pressure pipeline systems, the large diameter design allows it to meet the flow control needs of various large-scale industrial equipment. Moreover, its energy-saving feature makes the opening and closing of the butterfly valve faster, reducing fluid resistance losses in the pipeline and improving the overall efficiency of the system.
