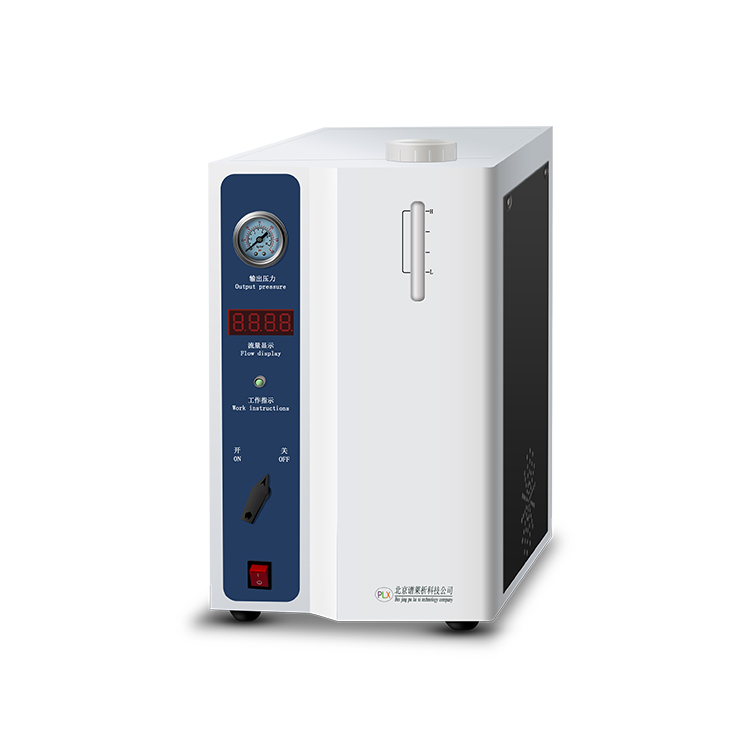

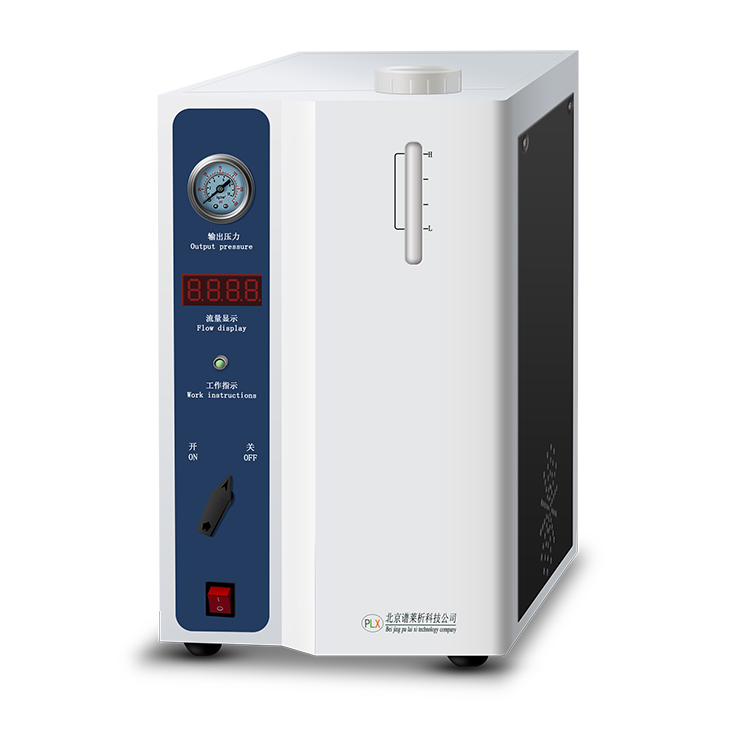

I. Product Overview

This series of pure water oxygen generators utilizes Solid Polymer Electrolyte (SPE) oxygen production technology, using pure water as the electrolyte and generating high-purity oxygen through electrolysis with titanium metal electrodes. The oxygen is then separated from water, dried, and purified before output. It boasts core advantages such as stable pressure (fluctuation < 0.001 MPa), immediate production upon use, and zero addition of alkaline liquid, making it suitable for laboratory, medical, and industrial applications.

III. Instrument Features

1. Smart Control System

One-touch operation: Simply press the power switch to start gas production, supporting continuous or intermittent operation.

Accurate Monitoring: Highlighted LED digital screens display flow (±1ml accuracy) and pressure values in real time, with data being clear and prominent.

Pressure Adaptive: The system automatically adjusts the gas production volume when the pressure reaches the preset value (e.g., 0.4 MPa), ensuring that the output pressure fluctuation is ≤0.001 MPa.

2. Low-maintenance design

Simplified Maintenance: Simply replenish with pure water or distilled water periodically.

3. Safety Protection

Anti-siphon Technology: Integrated anti-siphon device, eliminating the risk of liquid backflow.

Multiple Protection: Over-pressure and low-liquid automatic shutdown to ensure equipment and operation safety.

4 High-efficiency compact structure

High conversion efficiency: Electrolytic cell efficiency ≥ 95%, maximum gas output up to 5000ml/min, meeting high load requirements.
