I. Overview

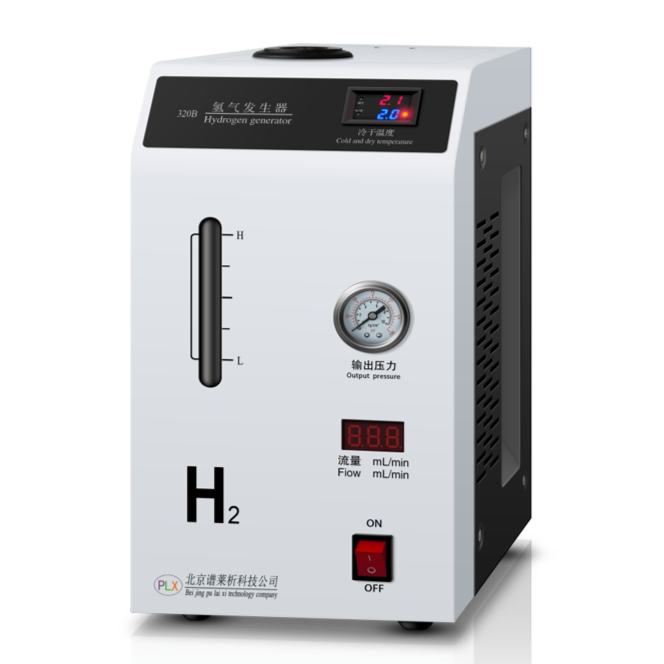

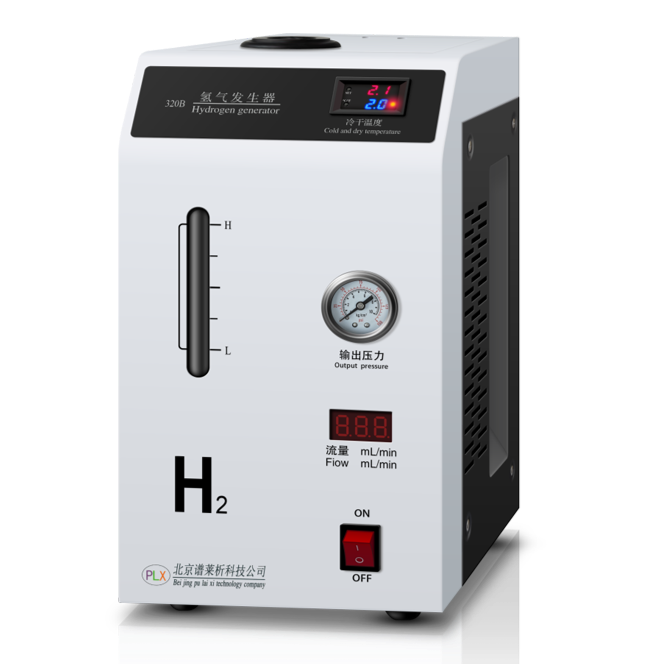

Maintain-Free 320B High Purity HydrogenAirThe generator is compatible with various gas chromatographs worldwide; extensively used in laboratories for analysis and testing in the petroleum, chemical, coal, pharmaceutical, food, beverage, environmental protection, indoor air quality, hygiene, quarantine, electricity, public security, and universities, among others.
High-purity hydrogenGasThe generator is composed of systems including an electrolytic separation tank, switch power supply, pressure control, drying and purification, flow display, electronic refrigeration, temperature display, and automatic water replenishment. The "heart" of this instrumentElectrolytic separation cells feature a cylindrical structure.。ManufactureHydrogenOxygen degassing can be performed simultaneously, offering the advantages of an ultra-large electrolytic area, low pond temperature, excellent performance, and high purity.This instrument is equipped with a non-return fluid device, ensuring effective prevention of liquid backflow.
II. Main Technical Parameters
Power Voltage: 220V, 50Hz
2. Purity of Gas: 99.999% (Relative Oxygen Content)
3. Flow Rate: 0 - 300 ml/min
4. Output Pressure: 0.4 Mpa (For special pressure requirements, please notify the factory in advance for customization)
5. Maximum Power: 150W
6. Environmental Temperature: 0-40℃; Relative Humidity < 85%
7. Environmental Conditions: No large amounts of dust or corrosive gases
8. Dimensions: 380×220×380mm (L×W×H)
9. Weight: 13 kg
III. Instrument Features:
Operation is simple; just turn on the power switch, and it starts producing gas. The output pressure is stable, and the flow rate is clearly displayed on the LED digital screen for better visibility.
2. Simply replenish with distilled water for daily use, may be used continuously or intermittently.
3. The instrument uses a drum-shaped battery structure, which can effectively reduce the temperature inside the pool.
4. Equipped with a non-return fluid device, it effectively ensures there is no backflow in the instrument.
5. Auto-refilling with liquid when low, ensuring safer and more convenient use.
6. Automatically tracks changes in traffic for enhanced safety and practicality.
7. Real-time visible electronic refrigeration temperature
8. No need to replace desiccant.
IV. Quality Assurance
1. The product is warranted for one year from the date of sale, with free repairs during the warranty period and lifetime service support.
2. We offer repair services and trade-in options for gas chromatography and gas source instruments from domestic and international manufacturers.
3. Offering design and construction services for laboratory gas pipeline systems.
4. Should the operator encounter any quality issues with the product during use, please consult technical support.
V. Special Production
Tailor-made solutions to meet your needs, sincerely looking forward to collaborating with you! Export specifications can be customized according to customer requirements.
