Product Description:

1. Adjustable Uniform Light Source System Components

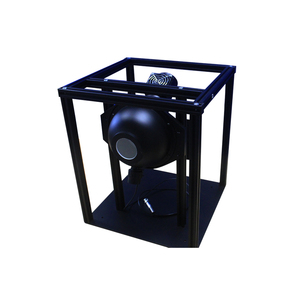

The adjustable brightness uniform light source system typically consists of: an integrating sphere uniform light source, PM2000 multi-functional photometer (dedicated for brightness monitoring), ULC1000 uniform light source controller, adjustable diaphragm, light source power supply, and control software. The brightness of the integrating sphere's output aperture is adjusted by controlling one or more diaphragms via the software.

2 Features of the Adjustable Uniform Light Source System

Integrate spinning formed integral sphere, solving the roundness issue of traditional processes.

Export area can be customized according to customer requirements, currently achieving an opening of 2 meters.

We can provide traceable calibration data back to NIM, offering various calibration values for luminous intensity and radiant intensity.

The light outlet has a Lambertian characteristic, and the uniformity of the light outlet can exceed 98%.

Customizable for specific output brightness and radiant brightness.

Customizable and adjustable output brightness and radiating brightness; manual or programmable adjustment options available.

Customizable to specific color temperature light sources or adjustable color temperature light sources.

Customizable spectral tunable light sources for high-precision calibration of color measurement instruments.

The spectral range is customizable to cover from 200nm to 3000nm.

Available with configurable high-precision optical monitoring system, optional high-precision photometric monitoring system or spectrometer monitoring system.

We offer programmable interfaces and software二次 development interfaces.
