Product Description:
ComprehensiveUltraviolet-Visible-Near InfraredFull-spectrum spectral radiometer
Meets the requirements of CIE-15, IESNA LM-79, GB/T 38120, YY-1081, and other standards

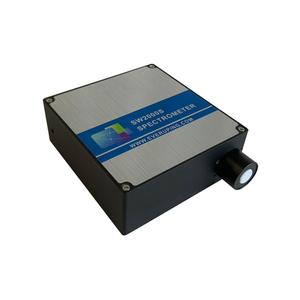

The SW2000S Spectral Radiometer employs multiple patented technologies, integrating spectral, illuminance, and irradiance measurement functions. It is widely used in fields such as light color quality, ultraviolet radiation, plant lighting, and medical device testing.
SW2000S Test Capability:
With dedicated spectral test analysis software, the SW2000S can measure all light color parameters, plant lighting parameters, ultraviolet radiation parameters, and fluorescence effect tests as specified by current standards and regulations.
(1) Light Color Parameters: Luminous intensity (including photopic and scotopic parameters), radiant intensity, candlepower, pupil intensity, absolute spectral radiant intensity distribution, chromaticity coordinates, dominant wavelength, peak wavelength, central wavelength, centroid wavelength, correlated color temperature, color purity, color rendering index, color quality, half-width, red ratio, color tolerance, ANSI quadrilateral.TM30-18Full color gamut index GAI, TLCI-2012, etc.
(2) UV Radiation Parameters: UV Irradiance, UVA, UVB, UVC Segmental Irradiance, Blue Light Hazard Irradiance
(3) Plant Lighting Parameters: Photon Flux Density (PPFD), Effective Photon Flux Density (YPFD), and Band Radiant Emissivity.
Technical Specifications:
(1) Optical Platform: Focal Length 60mm, Symmetrical Non-Crossing C-T Optical Path
(2) Spectral Range: 200nm-850nm / 360nm-1000nm (Special custom options available)
(3) Detector: Genuine Hamamatsu line array sensor
(4) Points Adjustment Range: 11.4us - 10s (Highlighted - Unsaturation)
(5) Wavelength Accuracy: 0.3 nm
(6) Illuminance Accuracy: 2%
(7) Illuminance Range: 1 lx - 10^6 lx
(8) Chromaticity parameters:
Colorimetric accuracy: ±0.003 (under standard light), ±0.0003 (under standard A light).
Color coordinate repeatability: ±0.00015x, ±0.00015y (constant temperature white light LED)
(9) Communication and Power Supply: USB 2.0 Interface
(10) Operating System: WinXP/Win7/Win8/Win10
