Product Description:

The photometric color characteristics of high-power LED devices vary with the LED junction temperature. To ensure consistency in test results, it is necessary to conduct comparative testing of the LED at the same junction temperature.

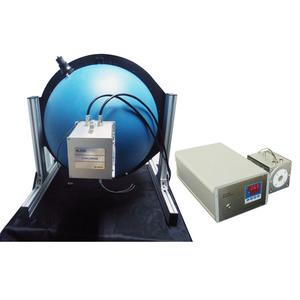

The LED Device Constant Temperature Photoelectric Color Test System is a specialized testing system developed for testing high-power LED devices. The system employs TEC semiconductor refrigeration technology, which maintains a constant temperature of the LED substrate, thereby keeping the LED junction temperature constant.

Technical Specifications:

Temperature Control Range: 5℃ to 80℃ under room temperature of 20℃ and relative humidity of 60%.

(2) Temperature Resolution: 0.1℃

(3) Temperature Accuracy: ±0.5℃

RS-485 standard communication interface

(5) Cooling Method: Forced Air Cooling

(6) Working Environment: 0-40℃; 0-90% RH; Indoor Use

(7) Power Supply: AC 220V ±10%, 50Hz

(8) Dimensions: 220mm W x 150mm H x 355mm D
