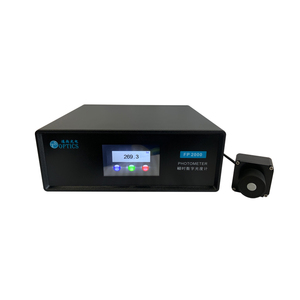

Product Description:

Maximum sampling rate of 100KS/s, meets the requirements of current flicker test standards

Equipped with a touch screen display, capable of single-machine operation to measure luminous intensity/radiance parameters.

The FP2000, paired with dedicated flicker test analysis software, can measure all flicker parameters as specified by current standards and regulations, and automatically determine the flicker safety level according to the relevant standards.

FP2000 Strobe Test Capability:

(1) Time-domain and frequency-domain analysis charts of light radiation fluctuations

(2) Base Frequency, Flicker Percentage (PF), Flicker Index (FI), Modulation Depth (MD)

(3) PstLM (compliant with the latest standards such as IEC, ERP EU2019/2020, NEMA 77, Energy Star Lamps V2.1, etc.)

(4) SVM (compliant with the latest standards such as CIE TN:006, ERP EU2019/2020, NEMA 77, Energy Star Lamps V2.1, etc.).

(5) PAM Concentration Percentage (Compliant with CEC Regulation JA 10)

(6) Mp (compliant with ASSIST recommendations and the latest standards such as Energy Star Lamps V2.1)

(7) The software automatically determines the flicker hazard level according to the corresponding standards.

Key Technical Specifications:

Precision Photometric Detection Device

(1) V(λ) Matching Error: Level 1 f1' ≤ 5%

(2) Cosine correction characteristic: Level 1 f2' ≤ 4%

(3) Illuminance measurement range: 0.1 lx ~ 200,000 lx, special orders available.

(4) Real-time sampling technology
