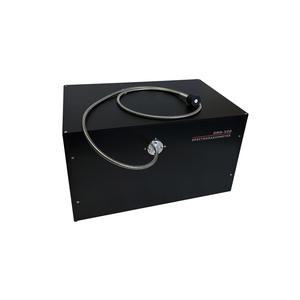

The core equipment of this system is a dual monochromator spectral testing system utilizing the unique co-rotating stage technology (patent pending) designed by Hangzhou Tongshang Optoelectronics Co., Ltd. The co-rotating stage technology ensures the system has an extremely high wavelength accuracy, while the dual monochromator technology guarantees a 10...^-8Scattered Light Suppression, Exceeding 10⁸Our dynamic range features a 0.001mW/klm detection capability, fully compliant with the 2005/32/EC EU directive's testing requirements for energy-saving lamps with UVC ultraviolet content less than 0.01mW/klm. Particularly suitable for measuring scenarios with higher requirements, such as light source and lamp UV leakage.

Key Technical Parameters

●System Coverage: 200nm - 800nm;

●Highest Wavelength Accuracy: 0.1nm

● Linear Dynamic Range: 108

● Light intensity repeatability: 0.2%

● Luminance Linearity: 0.3%

● Light intensity and light radiation intensity test accuracy: 5%

● UVC detection capability up to 0.001 mW/klm
