Product Description:

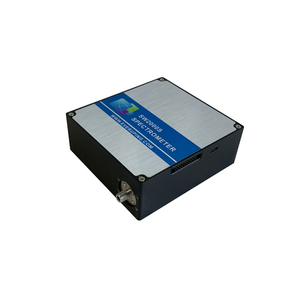

Compared to the SW2000, the SW2000S is a measurement device developed to meet the demand for compact size and wide measurement bandwidth. It has already completed the domestic testing of critical optical components, significantly enhancing its cost-performance ratio.

The SW2000S is a high-precision spectroradiometer with ultra-high dynamic range, capable of responding to UV, visible, and near-infrared wide spectral bands, particularly suitable for LED lighting testing, biological fluorescence detection, UV radiation measurement, and other related scientific applications.

The SW2000S features a Hamamatsu CMOS sensor, paired with a non-intersecting C-T optical platform, and combines Tongshang's professional extinction design and surface treatment to effectively suppress stray light and ensure measurement accuracy.

The SW2000S is equipped with a microUSB port and a 20-pin functional expansion interface (including 1 RS232 level serial port, 1 TTL level serial port, and several input/output IO ports), catering to various user needs. The bottom surface of the SW2000S housing and the surrounding optical fiber interfaces feature threaded mounting holes for easy installation and securing of the SW2000S.

Multi-channel Application

Multiple microspectrophotometers, with the same or different model specifications, can be connected to a single host via USB for multi-channel measurement applications.

We offer Windows, Linux drivers, and dynamic link libraries (DLLs).

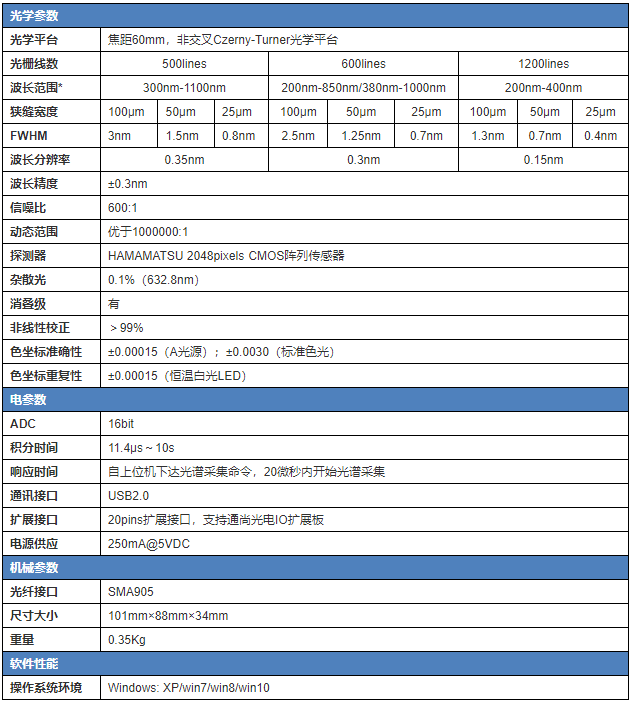

Technical Specifications:
