Product Description:

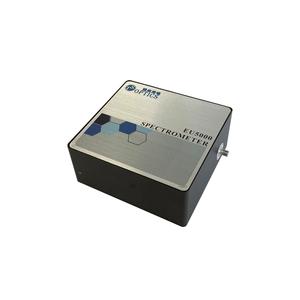

The EU5000 back-illuminated CCD spectrometer utilizes imported high-quality diffraction gratings, features a 75mm telecentric non-crossover C-T structure optical platform, incorporates our patented stray light reduction technology, and is equipped with a genuine HAMAMATSU back-illuminated array CCD sensor from Japan. This elevates its measurement precision and capability to a new level, comparable to professional-grade equipment.

The EU5000 series is equipped with a 64*2048 pixel large area back-illuminated line array CCD sensor, featuring a non-crossover CT optical structure with a focal length of 75mm, achieving an optical resolution up to 0.35nm. The low stray light design allows for stray light levels below 0.1%, with a fast response data transmission speed of up to 4.6 ms/sweep. The recommended integration time range is from 10ms to 100 seconds, greatly expanding the measurement dynamic range. The EU5000 boasts extremely low stray light, low noise, high sensitivity, and wide dynamic range, making it ideal for ultraviolet, UV-visible, and visible-near infrared spectral research and laboratory measurements. The EU5000 is also suitable for fluorescence spectrometers, which typically require high sensitivity due to weak fluorescence spectral signals. Additionally, the EU5000 series can achieve high-precision measurements in the ultraviolet wavelength range.

The EU5000 is an upgraded version for the SW2000. Additionally, the EU 5000 can also be used as a standard fiber optic spectrometer.

Technical Specifications:
