Product Description:

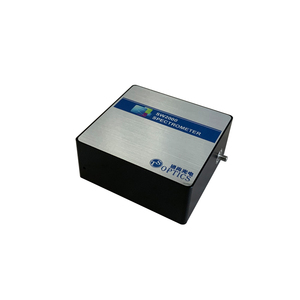

The SW2000 miniature spectrometer is equipped with high-quality imported diffraction gratings, utilizes a 75mm long-focus non-interfering C-T structure optical platform, integrates patent-pending stray light reduction technology, and features an original HAMAMATSU CMOS sensor from Japan, elevating its measurement accuracy and capability to a new level, making its precision comparable to professional-grade equipment.

The SW2000 series is equipped with a 2048-pixel CMOS array sensor, featuring a 75mm non-interfering CT optical structure, with an optical resolution up to 0.35nm. The low stray light design ensures stray light levels below 0.1%, with data transmission speeds of up to 0.4 ms/scan for rapid response times. The recommended integration time range is from 11.4us to 10 s, significantly broadening the measurement dynamic range. The SW2000 series is capable of UV band measurement, making it a cost-effective choice for UV spectral detection.

SW2000 is an upgraded version tailored for the high-end requirements of EU2000, featuring higher precision, faster speed, and a wider detection bandwidth compared to EU2000. Additionally, the SW2000 can also serve as a standardFiber Optic SpectrometerUse.

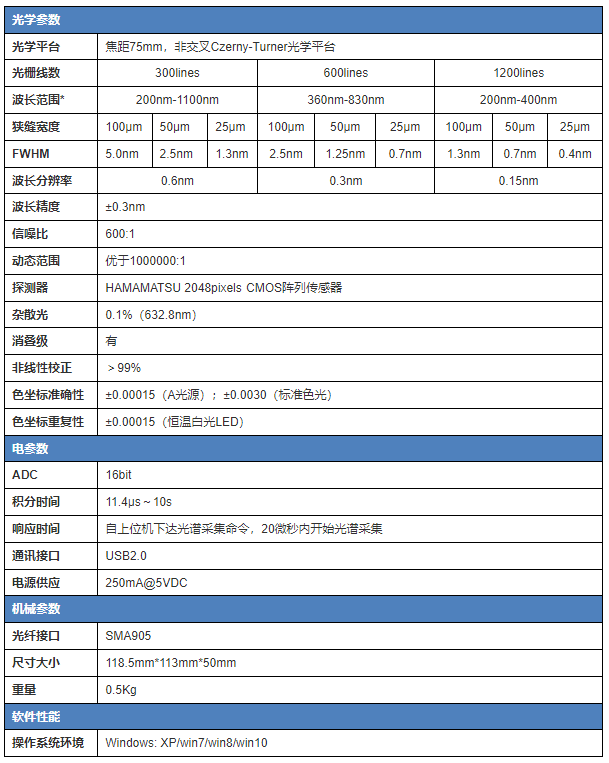

Technical Specifications Table:
