Product Description:

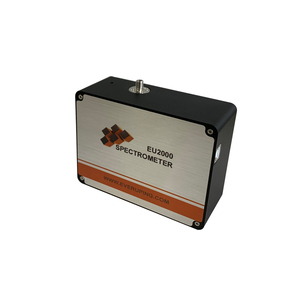

The EU2000 Micro Spectrometer utilizes high-quality domestic diffraction gratings, features a cross C-T structure optical platform, and is equipped with a patented technique for reducing stray light, ensuring high-precision spectral measurement capabilities, ultimately becoming a spectrometer with excellent cost-performance.

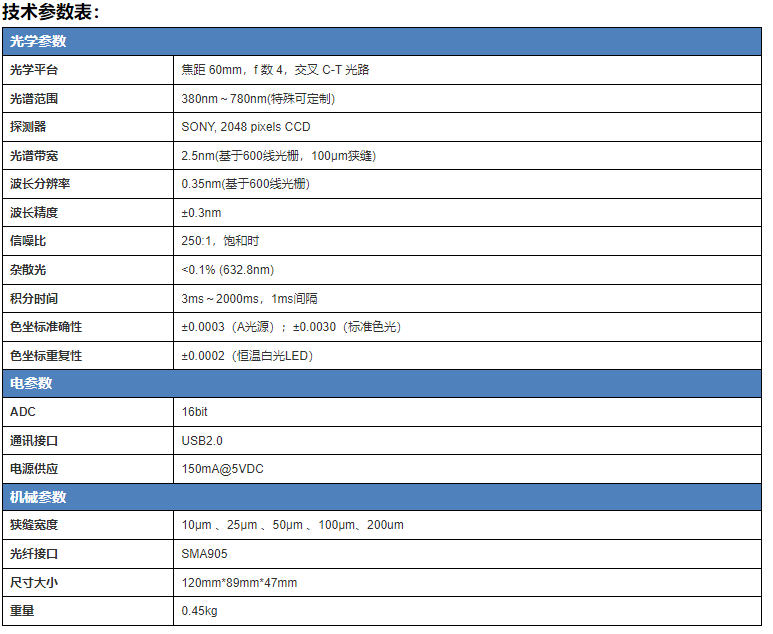

The EU2000 series is equipped with a 2048-pixel CCD array sensor, featuring a 60mm focal length cross CT optical structure that makes the instrument compact, with an optical resolution up to 0.35nm. The low stray light design allows stray light levels as low as 0.1%, with fast data transmission speeds of up to 4.6 ms/scan, and recommended integration time ranges from 3ms to 2 seconds.

The EU2000 was originally designed to provide a high-precision, cost-effective spectrometer for LED color measurement analysis. Thus, the design incorporates high precision, stability, reliability, and cost-effectiveness. After 10 years of development, the EU2000 has become a mature LED spectrometer recognized by a wide range of users. Additionally, the EU2000 can also be used as a conventional fiber optic spectrometer.

Multi-channel application

Multiple microspectrometers of the same or different specifications can be connected to a single host via USB for multi-channel measurement applications.

We offer Windows, Linux drivers, and dynamic link libraries (DLLs).
