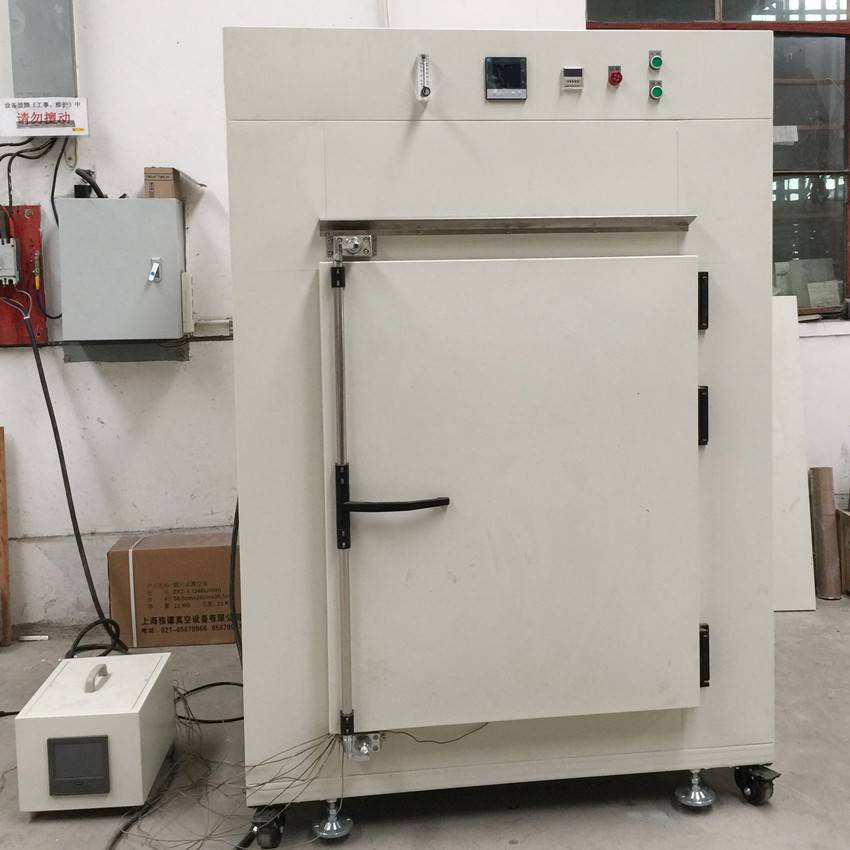

Realbe 100-500°C High Temperature Forced Air Drying Oven HD-200A Precision Industrial Oven

High-Temperature Oven

Application Range: Primarily used for drying, baking, constant-temperature testing, and aging experiments of various non-flammable materials.

Product Features:

Streamlined design, exterior made of high-quality cold-rolled steel plate with electrostatic powder coating, interior of SUS202 stainless steel, cornerless design for easy cleaning.

2. The duct utilizes forced convection to simulate air circulation, with top heating and air exhaust from both sides at the bottom, ensuring a uniform and stable temperature distribution.

3. Equipped with a microcomputer PID control system, featuring automatic temperature control, timing, over-temperature alarm, and an LCD digital display for stable and reliable performance.

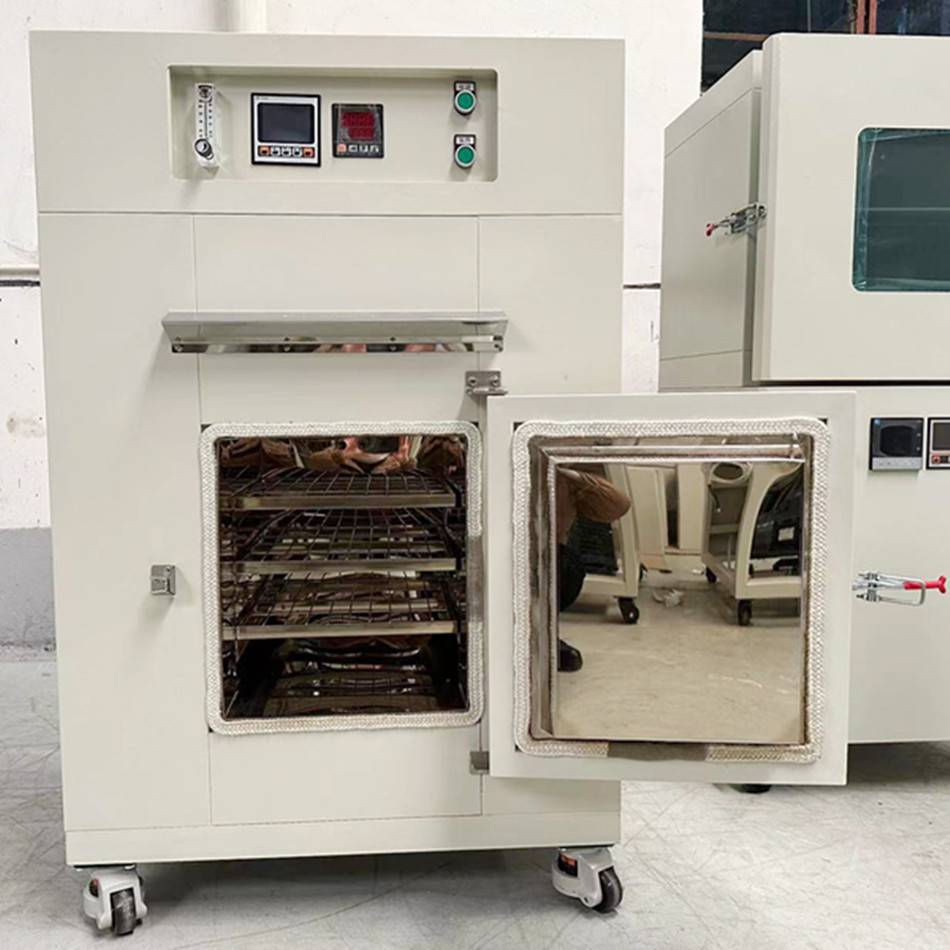

4. The studio features flexible shelving, allowing for adjustable shelf heights and additional quantities as needed.

5. Utilize high-quality thermal insulation technology and materials to minimize temperature loss within the container, thereby reducing energy consumption and promoting energy efficiency.

6. Features an optional independent over-temperature controller (K-type, electronic model), ensuring a dual-protection system for safety.

Model and Specifications:

Optional Options:

LP-LED Liquid Crystal Intelligent Program Controller (18 or 64 Segments)

SC - Independent Temperature Controller (Type K Thermocouple with Electronic Selection)

TH- Reserved Ø25, 50mm test hole/lead hole

PR - Paperless Recorder

TP-Printer (Thermal-sensitive, Panel Type)

RC- Remote Communication capability with computer (R485 interface requires LP option)

HC- Heavy-duty Partition (Supports 50kg)

Optional nitrogen interface and flowmeter function (this option requires full welding process)

Please contact our sales representative for other sizes and features.
