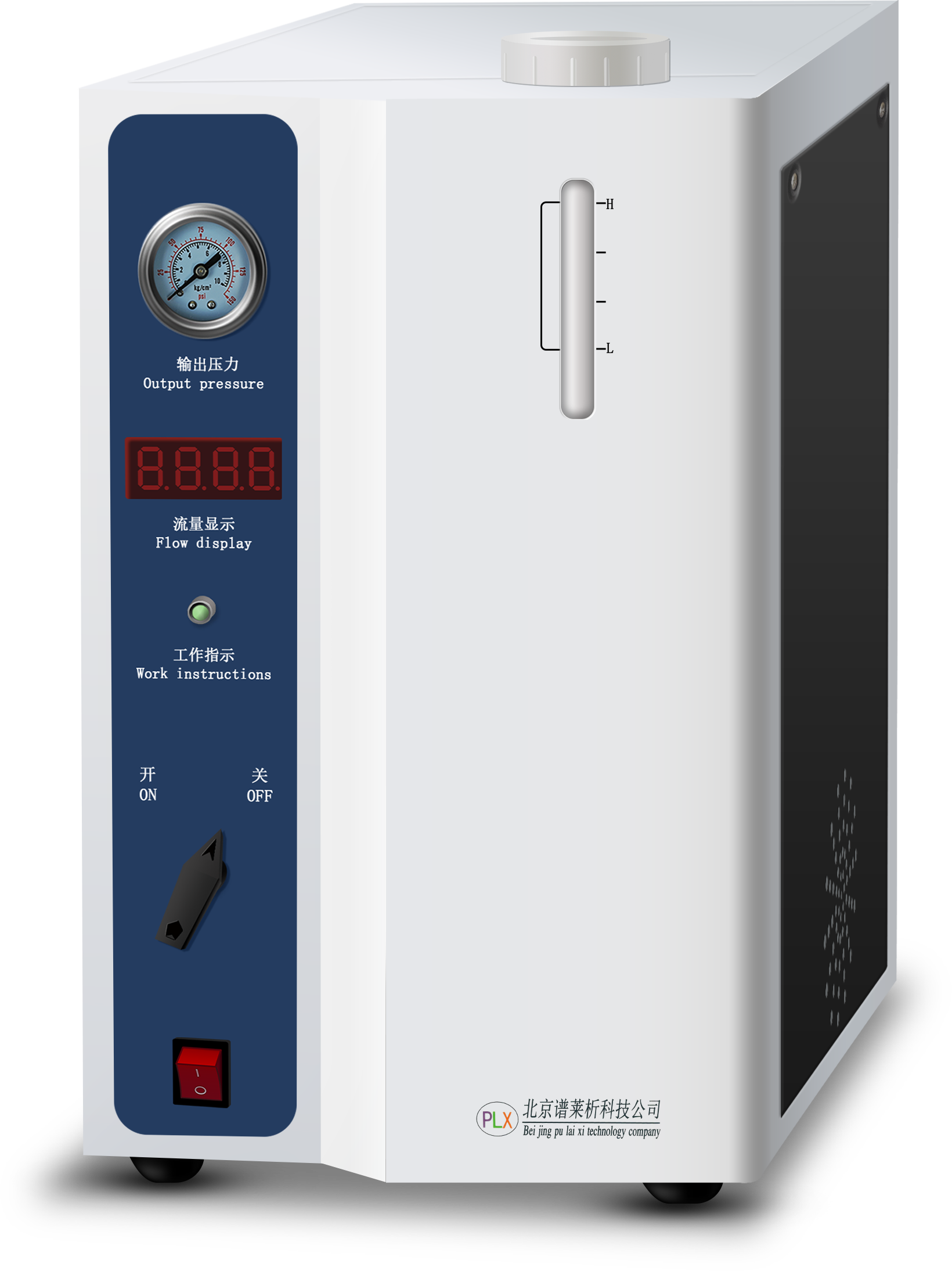

I. Product Overview

This series of pure waterGasGenerator utilizes Solid Polymer Electrolyte Technology (SPE), using pure water as the electrolyte, and generates high-purityqing through electrolysis with titanium metal electrodes.Gas（Oxygen content < 0.1 ppm）.GasAfter gas-water separation, drying and purification, it outputs with stable pressure (fluctuation < 0.001 MPa), ready-to-use production, and zero alkali solution addition, featuring core advantages suitable for laboratory, medical, and industrial applications.

II. Technical Specifications

Product Model

PGH-1000B

Gas purity

99.999% relative oxygen content

Outbound traffic

0-1000ml/min

Output Pressure

0-0.7 MPa (factory default 0.4 MPa)

Maximum Power

360W

Power Voltage

220V 50Hz

Dimensions

550mm*320mm*450mm（L*W*H）

Weight

Approximately 22 kg

Water Quality Requirements

Greater than 2MΩ deionized water or double-distilled water

III. Instrument Features

1. Smart Control System

One-touch operation: Simply press the power switch to start gas production; supports continuous or intermittent operation.

Accurate Monitoring: The high-definition LED digital display screen shows the flow rate (±1ml accuracy) and pressure values in real time, with data being clear and prominent.

Pressure-adaptive: When the pressure reaches the preset value (e.g., 0.4 MPa), the system automatically adjusts the gas output to ensure the output pressure fluctuation ≤ 0.001 MPa.

2. Low-maintenance design

Simplified Maintenance: Simply replenish with pure water or double-distilled water on a regular basis.

3. Safety Protection

Anti-backflow Technology: Equipped with an internal anti-backflow device, eliminating the risk of liquid backflow.

Multiple Protection: Overvoltage and low-liquid automatic shutdown, ensuring equipment and operation safety.

4 Efficient and Compact Structure

High Conversion Efficiency: Electrolytic cell efficiency ≥ 95%, maximum gas output up to 1000ml/min, meets high load requirements.
