I. Overview

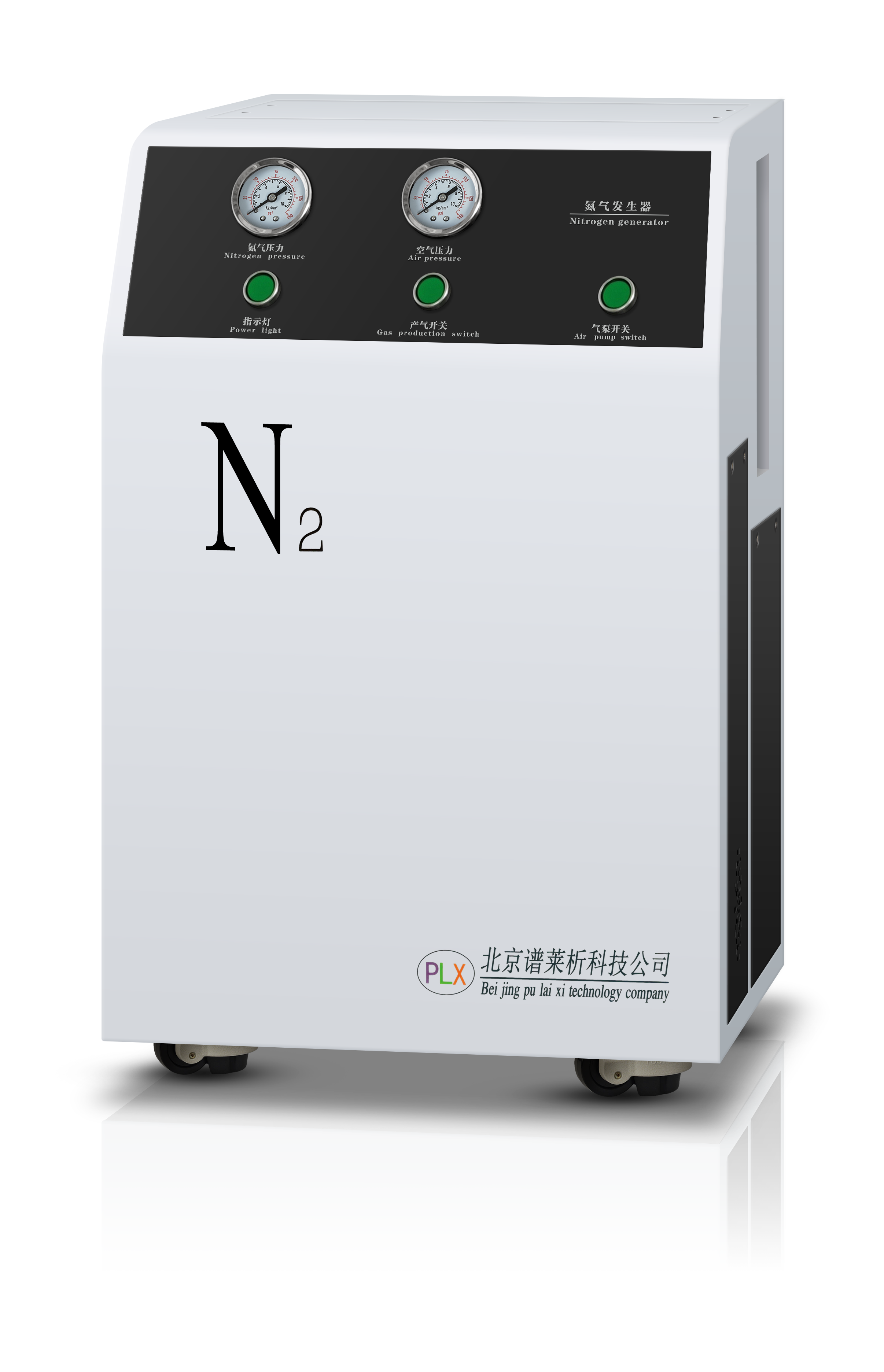

The PGN-30LB High Purity Nitrogen Generator is suitable for various liquid chromatography systems (high pressure) both domestically and internationally. It is widely used in laboratory analysis and testing departments in the oil, chemical, coal, pharmaceutical, food, beverage, environmental protection, indoor testing, health, quarantine, power, public security, and universities.

The High Purity Nitrogen Generator is powered by an air compressor as the raw gas source, featuring a superior dual compressor, self-designed vibration and heat insulation measures, an automatic drainage system, a cooling system, a gas purification and filtration system, and an internal overpressure safety protection device. Advanced membrane separation technology is employed, significantly enhancing the nitrogen production efficiency and purity, earning widespread customer recognition and positive reviews.

The gas storage tank is made of premium stainless steel material, featuring a dual protection system against overpressure and overcurrent. The operation is simple, reliable, and ensures the continuous stability of the machine's operation.

The machine's air circuit is divided into two main parts: the first is air compression and storage, and the second is membrane nitrogen separation. The power source for compression and storage is the compressor. Once the circuit is connected, the compressor begins to compress and store gas. It will automatically stop when the pressure reaches the set value. The nitrogen production process consumes air, and the compressor will automatically start to replenish air when the air pressure falls below the set value. The nitrogen production process uses membrane separation. When the air pressure reaches the nitrogen production requirements, the nitrogen production switch is turned on, and a pressure stabilizing and throttling device is connected in the nitrogen gas circuit. The PGN-30LB high-purity nitrogen generator is a large flow product developed by our company based on the original model to meet customer needs, and it holds a leading position in the market.

This instrument is highly suitable for large-scale supply. The machine has increased the compressor power and nitrogen membrane separation material. Our company boasts mature technology and processes, effortlessly handling continuous, high-load operations. The nitrogen generator, due to its mature technology, ease of use, low cost of gas production, and high purity, has long been replacing steel cylinders. It is increasingly chosen by laboratories, leading to the complete elimination of expensive and dangerous high-pressure steel cylinders from laboratories.

II. Technical Specifications

Output Pressure:116psiAdjustable pressure.

2. Flow Rate: 0-30 L/min

Nitrogen Purity: 95% - 99.9%

4. Particle matter: Content less than 0.01 um

5. Total Power: 1.3 kW

Noise Requirement: ≤58dB(A)

7. Working Conditions: Power supply 220V ±10%, 50Hz

8. Relative Humidity: ≤60%

Ambient Temperature: ≤30℃

10. Dimensions: 800x500x750mm (LxWxH)

11. Weight: 130 kg

Section 3: Instrument Features

Utilizing imported membrane separation technology, nitrogen production is highly efficient with high purity gas output.

2. Dual进口PumpStainless steel gas storage tank, effectively ensuring high-quality nitrogen output.

3. Core components are made from high-quality materials, ensuring durability and stable performance for the entire machine.

4. Equipped with built-in two-stage dehydration and gas purification units.

5. The control system features dual-level protection against overpressure and overcurrent.

6. Fully automatic, maintenance-free 。

7. Scientific and effective shock absorption system, with minimal vibration and low noise.

8. Unique cooling system with low operating temperatures.

9. Equipped with a timer and solenoid valve, cooling water is automatically drained.

10. The built-in air compressor does not require external compressed air supply. The inclusion of swivel wheels allows for easy mobility of the instrument in the lab.

V. Fault Diagnosis and Inspection:

Fault Phenomenon

Reason

Testing Method

Solution

Hint

The instrument is not functioning.

Power is not connected

Check if the power switch light is on

1. Power on

1. Flip the main power switch on

2. Air intake filter dirty

Low output pressure

Stable Pressure Valve Not Stabilizing Pressure

Check if the pressure regulating valve's air intake is blocked

Re-calibrate

Clear Clog

Pipe connection

Low nitrogen purity

Air quality does not meet the standards.

High humidity and temperature

Dehumidification, temperature reduction

Relative Humidity: ≤60%

Ambient Temperature: ≤30℃

Low nitrogen flow rate

Low air pressure

Is the compressor operating normally? Is there any leakage of steam?

Replace compressor or leak detection

Pipe link detached
