I. Overview

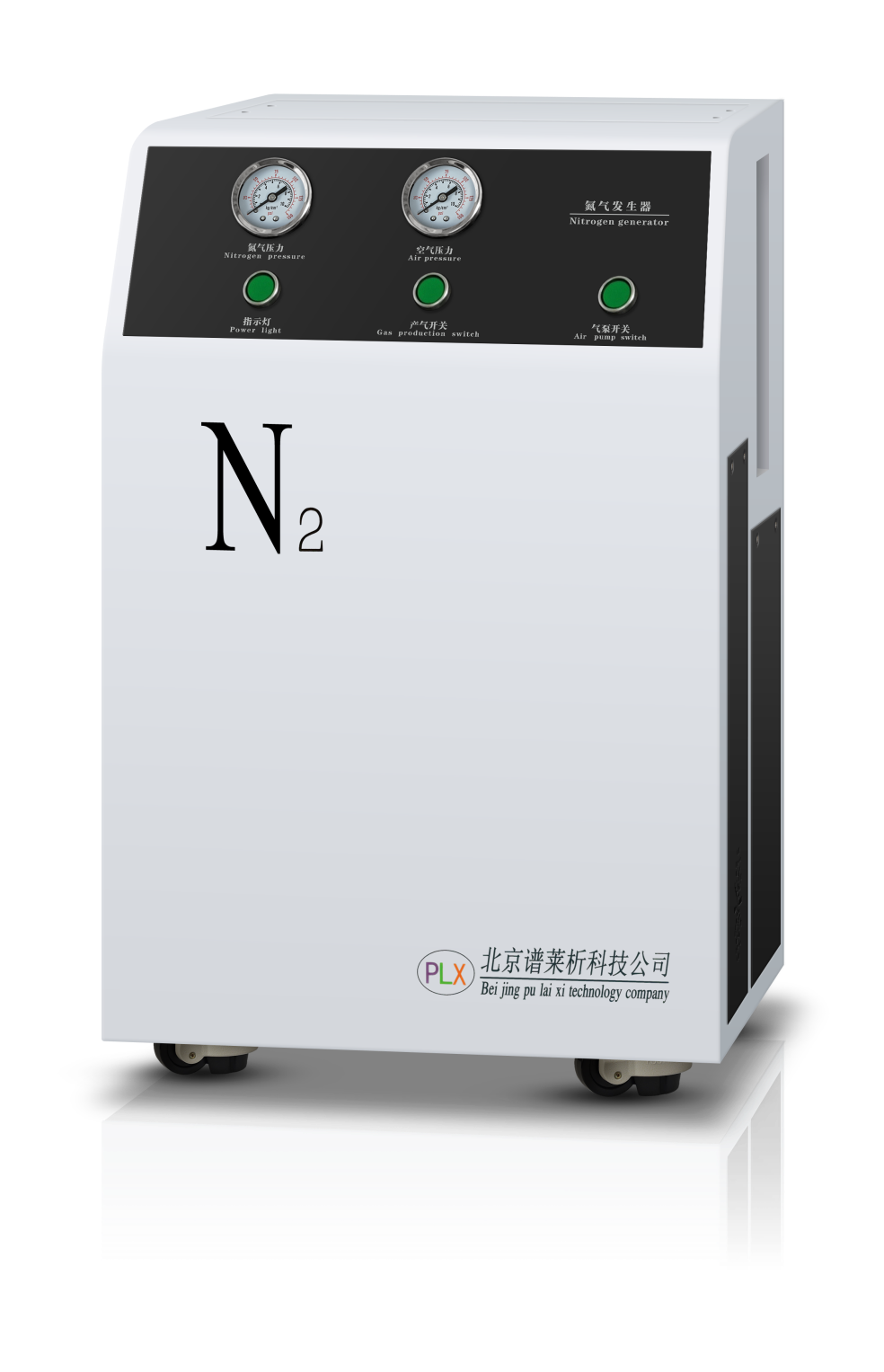

The PGN-20LB high-purity nitrogen generator is compatible with various liquid chromatography systems (high pressure) both domestically and internationally. It is widely used in laboratory analysis and testing departments across various industries such as petrochemicals, chemicals, coal, medicine, food, beverages, environmental protection, indoor air quality testing, sanitation, quarantine, electricity, public security, and universities.
The high-purity nitrogen generator is powered by an air compressor as the raw gas source, featuring a superior dual compressor, self-designed vibration and heat insulation measures, an automatic drainage system, a cooling system, a gas purification and filtration system, and an internal overpressure safety protection device. It employs advanced membrane separation technology, significantly improving nitrogen production efficiency and purity, earning widespread customer recognition and praise.
The gas storage tank is made of high-grade stainless steel material, featuring a control system with dual protection against overpressure and overcurrent. Operation is simple, and the system is reliable and safe, ensuring the stability of continuous machine operation.
The machine's air circuit is divided into two main parts: the first is air compression and storage, and the second is membrane nitrogen separation. The power for compression and storage comes from the compressor, which starts gas production and storage upon circuit connection. It will automatically stop when the pressure reaches the set value. During the nitrogen production process, air is consumed, and the compressor will automatically start to replenish air when the air pressure falls below the set value. The nitrogen production process uses membrane separation. When the air pressure reaches the nitrogen production requirements, the nitrogen production switch is turned on, and there are pressure stabilization and throttling devices connected in the nitrogen gas circuit. The PGN-20LB high-purity nitrogen generator is a large-flow product developed by our company based on the original model to meet customer needs, and it holds a leading position in the market.
This instrument is highly suitable for large-scale supply. The machine has increased the compressor power and nitrogen membrane separation material. Our company boasts mature technology and processes, easily handling continuous, high-load operations. The nitrogen generator, due to its mature technology, safety, ease of use, low cost of gas production, and high purity, has long become a substitute for steel cylinders. It is increasingly chosen by laboratories, leading to the complete elimination of expensive and dangerous high-pressure steel cylinders from the lab.
II. Technical Specifications
Output Pressure:116psiAdjustable pressure.
2. Flow Rate: 0-20 L/min
Nitrogen Purity: 95% - 99.9%
4. Particle matter: Content less than 0.01 um
5. Total Power: 1.3 kW
Noise Requirement: ≤58dB(A)
7. Working Conditions: Power Supply 220V ±10%, 50Hz
8. Relative Humidity: ≤60%
Ambient Temperature: ≤20℃
10. Dimensions: 800x500x750mm (LxWxH)
11. Weight: 120 kg
III. Instrument Features
Utilizing imported membrane separation technology, nitrogen production is highly efficient with high purity gas output.
2. Dual进口PumpStainless steel gas storage tanks, ensuring high-quality nitrogen output.
3. Core components are all made of high-quality materials, ensuring robustness and durability to maintain stable performance of the entire machine.
4. Built-in two-stage desalination and gas purification system.
5. The control system features dual-level protection against overvoltage and overcurrent.
6. Fully automatic, maintenance-free 。
7. Scientific and effective shock absorption device with minimal vibration and low noise.
8. Unique cooling system with low operating temperatures.
9. Equipped with a timer and solenoid valve, cooling water is automatically drained.
10. The built-in air compressor does not rely on external compressed air supply. The inclusion of swivel wheels allows for easy mobility of the instrument within the lab.
V. Fault Diagnosis and Inspection:
Fault Phenomenon
Reason
Inspection Method
Solution
Prompt
The instrument is not functioning.
Power not connected
Check if the power switch light is on
1. Power on
1. Turn on the main power switch
2. Air intake filter is dirty
Low output pressure
Pressure Regulator Not Stabilizing Pressure
Check if the pressure-regulating valve intake is blocked
Re-tune
Clear clogs
Pipe joint
Low purity nitrogen
Air quality does not meet the standards.
High humidity and temperature
Dehumidification, temperature reduction
Relative Humidity: ≤60%
Ambient Temperature: ≤20℃
Low nitrogen flow rate
Low air pressure
Is the compressor operating normally, and is there any steam leakage?
Replace compressor or leak detection
Pipe link detachment
