I. Product Overview

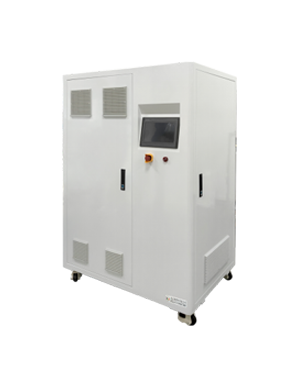

1 cubic meter QingGasGenerator, integrated with Proton Exchange Membrane (PEM) and electrolytic pure water production for high purityqingGasThe system utilizes a water circulation system to deliver purified deionized water to the electrolysis cell for electrolysis, forming negative ions and positive ions. The negative ions are released at the anode, releasing electrons to form oxygen and carrying some water vapor into the water tank, where the oxygen is extracted and vented by the oxygen exhaust pump. The positive ions, on the cathode, gain electrons to form [remaining text is missing in the original Chinese, so it is omitted].GasAfter gas-water separation, the maximum pressure achieved is 3.0 Mpa Qing.Gas。
The system encompasses the development and implementation of a production system including electrolytic cells, as well as power supply facilities, pure water preparation facilities, gas-liquid separation facilities, and more.GasPurification facilities, PLC control systems, etc.
Complete technical utility auxiliary system design, including but not limited to energy management systems, recirculating cooling water systems, chilled water systems, instrument air systems, and auxiliary power supply. Specific equipment includes: circulating pumps, water-gas separators, gas dryers, valve and piping components, constant current power supplies, control panels and control systems, and safety systems.

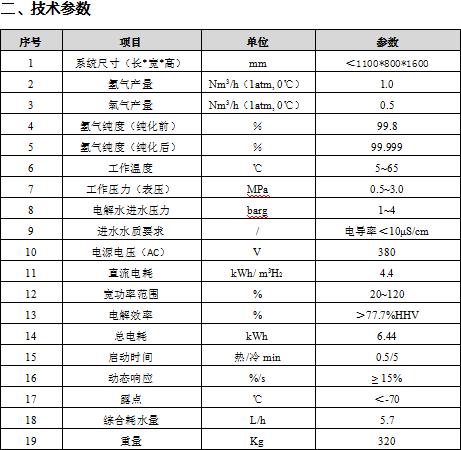

Section 3: Instrument Features
The Qing System is equipped with gas leak detection and comprehensive safety protection features.
2. The Qing system should be well-planned, aesthetically pleasing, and tidy.
3. Automatic back pressure control by Qingqi
4. Features a qing gas-liquid separation processing function, with liquid level monitoring; automatically discharges externally upon reaching the threshold.
5. Recirculating water tank with automatic deionized water replenishment.
6. Preheating and升温 rate of electrolytic cell is 4℃/min.
7. Extra-large touch screen displays real-time flow (±1ml accuracy) and pressure values, with data presented clearly and prominently. Features remote monitoring capability, automatic system control, and safe, unattended operation with real-time dynamics, 24/7.
8. Operating conditions can be freely edited or pre-set conditions can be selected.
9. Voltage, power output monitoring, and protection
10. Equipped with full circuit multi-point temperature and pressure monitoring and protection.
11. Features abnormal conductivity alarm and processing for recirculating water.
12. Features testing for Qing leakage concentration monitoring and protection.
13. Equipped with multi-method safety automatic protection operations, capable of executing load reduction, unloading, circuit breaking, temperature reduction, pressure reduction, and reaction interruption
14. Water supply and safety protection measures
15. Equipped with safety high-altitude straight exhaust function on the clean gas side and oxygen side, fitted with a fire arrester.
16. The "qingqiqi" water separator and recirculating water tank are equipped with liquid level detection capabilities.
17. Equipped with oxygen, nitrogen, normal pressure, ambient temperature, and safe sampling and testing functions.
18. Equipped with emergency stop and interlock protection during emergency stop.
Section 4: Product Advantages
1 Ultra-pure Qing gas produces Qing gas with purity greater than 99.999%, and dew point below -70°C.
Highly adaptable with strong load adaptability, gas production volume is continuously adjustable from 20% to 120%, with rapid response.
3 High-pressure production can reach a pressure of 3.0 Mpa.
4 Can perform cold/hot start, has a hot standby status, reduces energy consumption and increases production efficiency.
5 Safety reliable with gas leakage detection and comprehensive safety protection features, such as emergency stop and interlock protection in emergency stop state.
6 Stable performance and long lifespan, low temperature, consistent performance during extended operation, low failure rate; pressure difference fluctuations during operation are less than 0.05 Mpa.
Easy to install, highly integrated, safe and reliable, user-friendly, compact, and easy to install.
