I. Overview

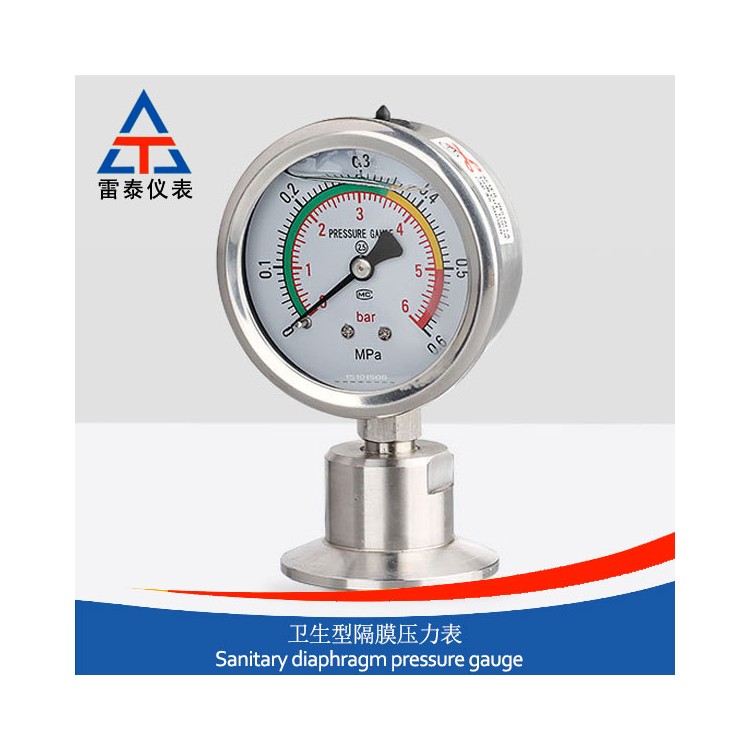

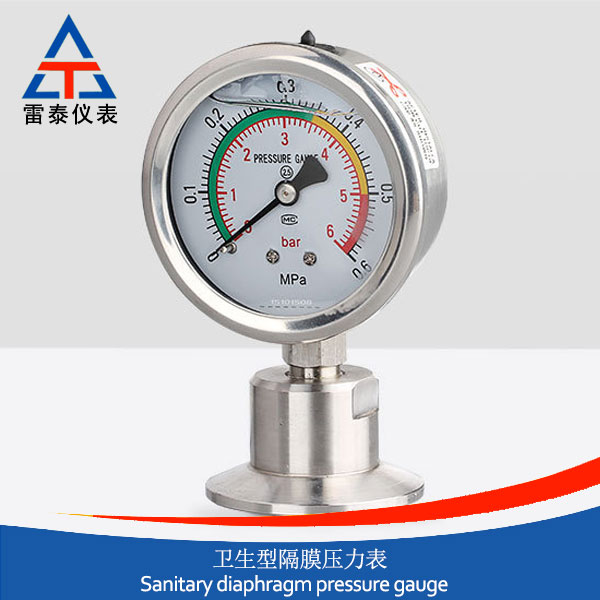

The Sanitary Diaphragm Pressure Gauge with Internal Nut is a membrane pressure gauge system composed of a general-purpose pressure instrument and a diaphragm isolator. It boasts advantages such as quick and easy installation and removal on-site, resistance to contamination, ease of cleaning, and safety and reliability.

II. Main Technical Parameters

◆ Measurement Range and Model Identification

Form Range Limit

(MPa)

MC Clamp 0.6-2.5

(Bolt Flange 1 1/2)

0.4～2.5

Flange 2

MN Nut 0.4～2.5

MH Rectangular Flange

(Homogenizer Grade) 10-60

Note: 1. Users may also choose other general-purpose pressure gauges, and can negotiate with our company during the ordering process.

2. The connection method for the pressure gauge and diaphragm assembly can also be selected in other forms; please consult with our company when placing an order.

◆ Diaphragm meter corrosion resistance

The corrosion resistance of diaphragm gauges can be ensured by appropriately selecting the materials of the diaphragm, flange, and sealing ring in contact with the measuring medium.

Diaphragm Material: 316, 316L

Flange Material: 316, 316L

Seal Material: Silicone Rubber

◆ Selection of Sealing Fluid

To ensure the reliability and safety of using the sanitation-type diaphragm, select the appropriate sealing fluid based on different applications.

Sealed Liquid, Temperature Range of Pressured Section (°C), Specific Gravity, Body Expansion

Glycerol Solution -5 to 100 1.27 0.61×10^-3

Propylene Glycol -30 to 160 1.04 0.70×10^-3

Vegetable Oil -5～100 1.93 1.03×10^-3

Section 3: Diaphragm Assembly Flange Dimensions

◆ Clamp Type Diaphragm Isolator [Code MC]
