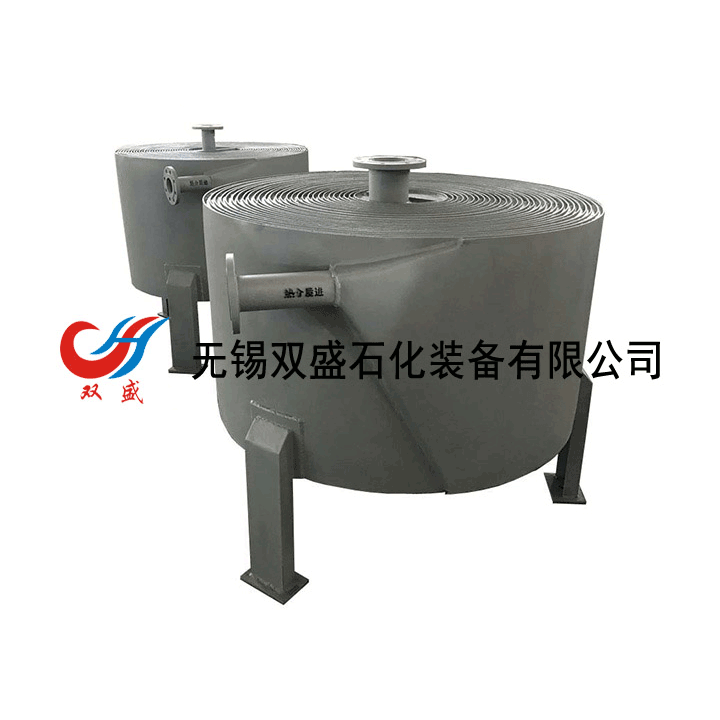

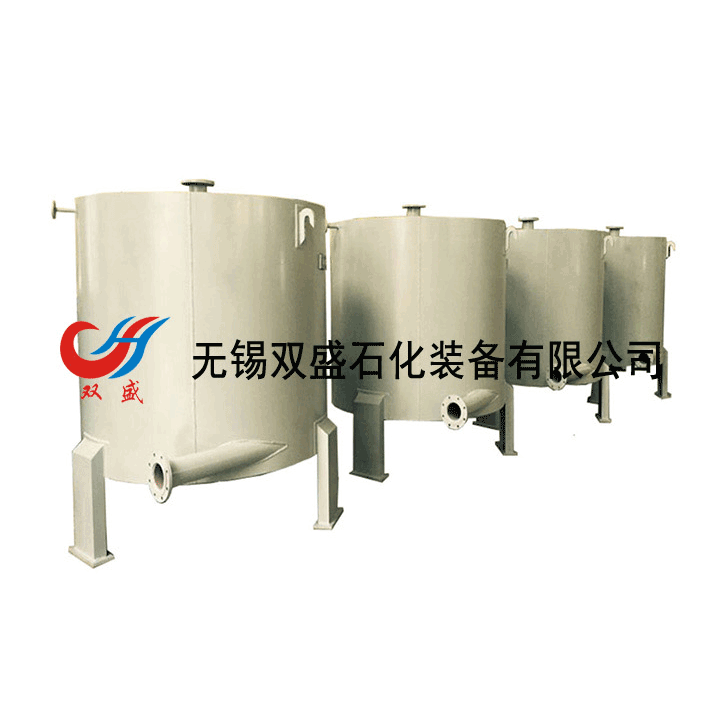

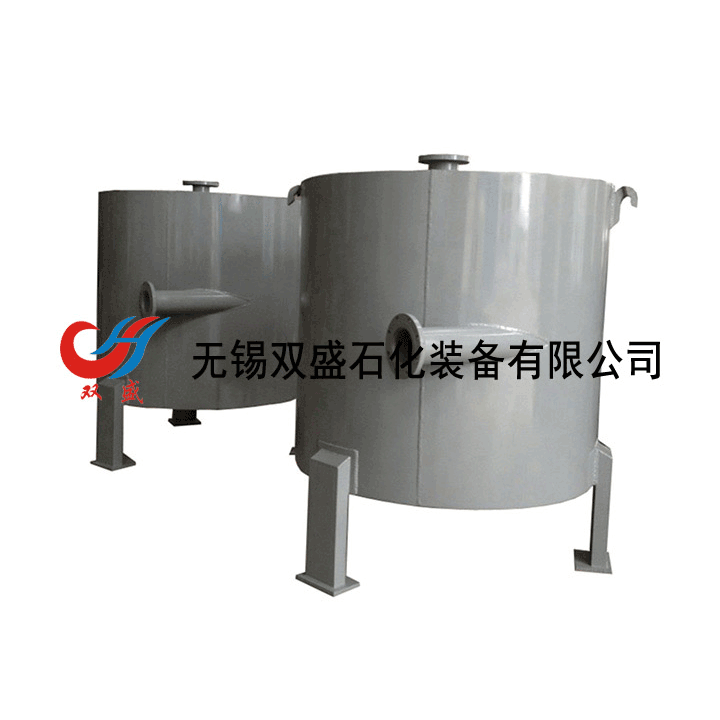

Type I Non-Split Spiral Plate Heat Exchanger

Overview

      The non-disassembled spiral plate heat exchanger is designed according to the JB/TQ724-89 standard for non-disassembled spiral plate heat exchangers, following the specifications for basic parameters and dimensions. It boasts advantages such as simple manufacturing, low cost, compact size, and good heat transfer performance. However, it also has its drawbacks, such as being unable to be mechanically cleaned and difficult to repair if damaged. The selector should choose the specific equipment based on the actual project conditions.

      The I-type non-detachable spiral plate heat exchanger features a welded seal at the ends of its spiral channels, thereby ensuring high sealing integrity.

Technical Specifications

Stainless acid-resistant steel PN0.6, 1.6MPa non-detachable (Type I) spiral plate heat exchanger

Carbon steel Pg6, 16kg/cm² non-removable (Type I) spiral plate heat exchanger
