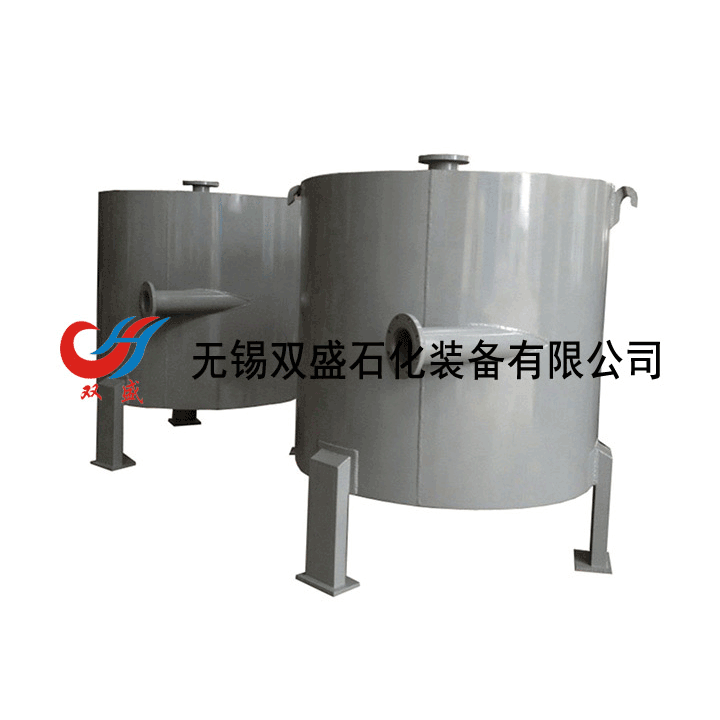

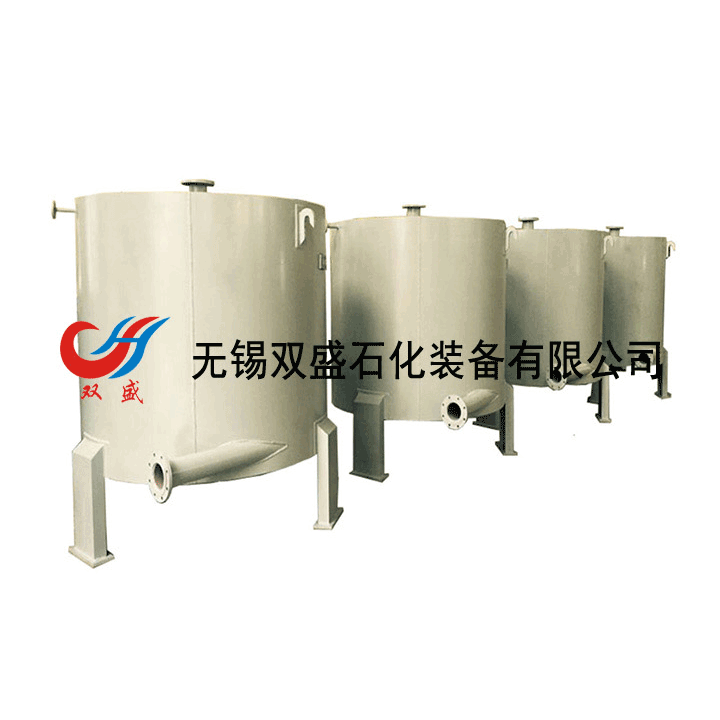

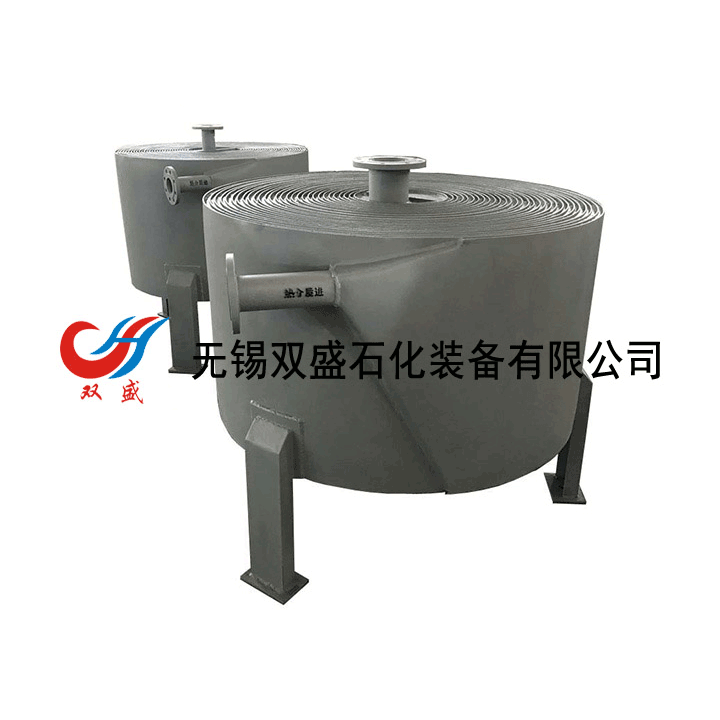

Type I Non-Split Spiral Plate Heat Exchanger

Overview

      The non-detachable spiral plate heat exchanger is designed according to the machine standard JB/TQ724-89 for non-detachable spiral plate heat exchangers, with specifications for basic parameters and dimensions. It boasts advantages such as simple manufacturing, low cost, compact size, and good heat transfer performance. However, it also has its drawbacks, such as being unable to be mechanically cleaned and difficult to repair if damaged. The selector should choose the specific equipment based on the actual conditions of the project.

      The I-type non-detachable spiral plate heat exchanger features a sealed end face in the spiral channel, thereby offering high sealing integrity.

Technical Specifications

Stainless acid-resistant steel PN0.6, 1.6MPa non-detachable (Type I) spiral plate heat exchanger

Carbon steel Pg6, 16 kg/cm² non-detachable (Type I) spiral plate heat exchanger
