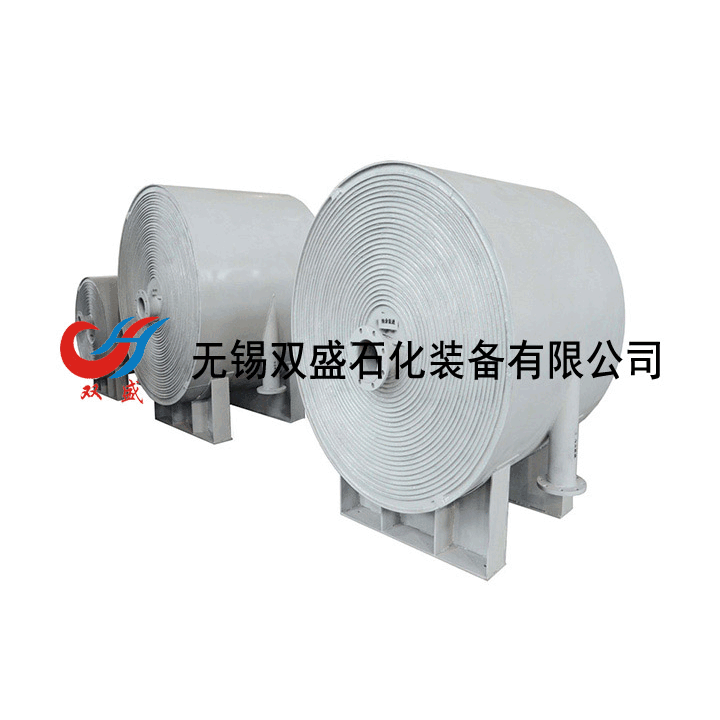

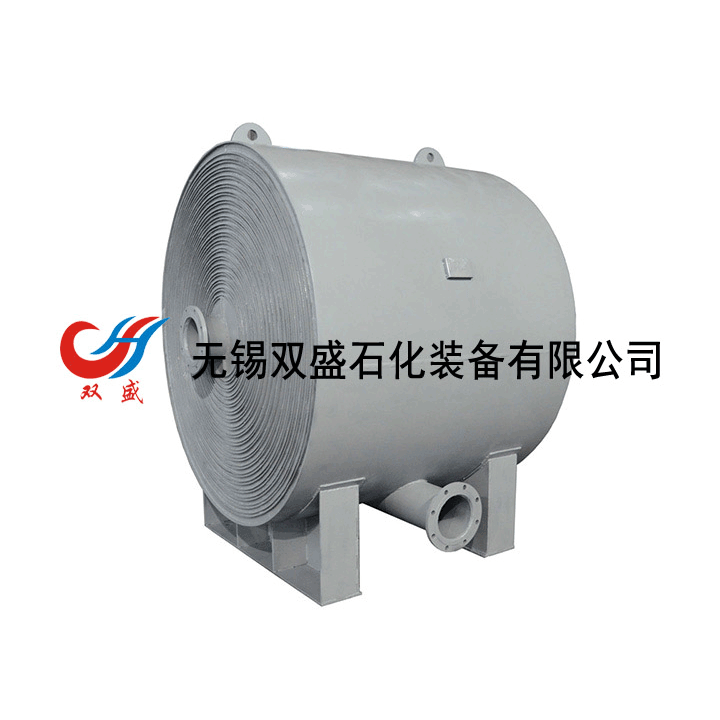

Type I Non-Split Horizontal Spiral Plate Heat Exchanger

Overview

The non-divisible horizontal spiral plate heat exchanger is designed according to the JB/TQ724-89 standard for non-divisible spiral plate heat exchangers, with specifications for basic parameters and dimensions. It boasts advantages such as simple manufacturing, low cost, compact size, and excellent heat transfer performance. However, it also has its drawbacks, such as being unable to be mechanically cleaned and difficult to repair when damaged. Users should select the specific equipment based on the actual circumstances of the project.

The I-type non-detachable horizontal spiral plate heat exchanger features a sealed end face with welding, thus offering high sealing integrity.

Technical Specifications

Stainless acid-resistant steel PN 0.6, 1.6 MPa non-detachable (Type I) spiral plate heat exchanger

Carbon steel Pg6, 16 kg/cm² non-detachable (Type I) spiral plate heat exchanger
