Mine-used steel wire armored control cable MKVV32
Model | Name | Specs | Usage |
MKVV | Copper-core polyethylene insulated polyvinyl chloride sheathed flame-retardant mining control cable | （2-14)*(4-6) (2-61)*(0.75-2.5) | Laid indoors, within cables, pipes, and other fixed installations |
MKVV22 | Copper-core polyethylene insulated polyvinyl chloride sheathed steel stranded flame-retardant mine control cable | (7-61)*(0.75-1.5) (4-14)*(4-6) | Laid indoors, within cables, pipes, and directly buried, capable of withstanding significant mechanical external forces for fixed installations. |
MKVV32 | Copper-core polyethylene insulated PVC sheathed steel wire armoured flame-retardant mining control cable | (2-61)*(0.75-2.5) (4-14)*(4-6) | Laid indoors, inside cables, pipelines, directly buried, or hung vertically, capable of withstanding high tensile forces for fixed installations. |
MKVVP22 | Coal mine use copper core polyethylene insulated polyvinyl chloride sheathed braided屏蔽 steel tape clad flame retardant control cable | (4-14)*(4-6) (4-61)*2.5mm2 | Installation in high-magnetic field rooms, cables, pipelines, direct burial, and suspended, capable of withstanding significant tensile forces for fixed applications. |
MKVVRP | Coal mine use copper-core polyethylene insulated polyvinyl chloride sheathed woven shield flame-retardant control flexible cable | (4-61)*(0.5-2.5) (4-37)*(1.5-2.5) | Laid in fixed locations such as within large magnetic field rooms, cables, pipelines, etc. |
MKVV cable, MKVVP cable, MKVVP2 cable, MKVV22 cable, MKVV32 cable, MKVVR cable, MKVVRP cable, MKVVP22 cable, and other specifications of coal mine flame-retardant control cables. Recommended conductor counts: 2, 3, 4, 5, 7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61 cores.
This factory solemnly declares:
1. Sign a Product Quality Assurance Certificate, committing to "No substandard products will be shipped out."
2. Two-year quality tracking service for products, with customer service records archived for 20 years.
3. In case of quality issues with the product, our factory offers warranty, returns, exchanges, and meets customer requirements.
4. Product Specifications: Custom-made according to customer requirements
5. Product Quantity: Minimum order quantity is 100 meters; prices increase for orders between 100-200 meters.
6. Packaging Description: Short-metered disks are packed by quantity, long-metered cables are packed on drums.
7. Pricing Details: Prices are subject to negotiation over the phone and are updated in real-time based on fluctuations in copper prices.

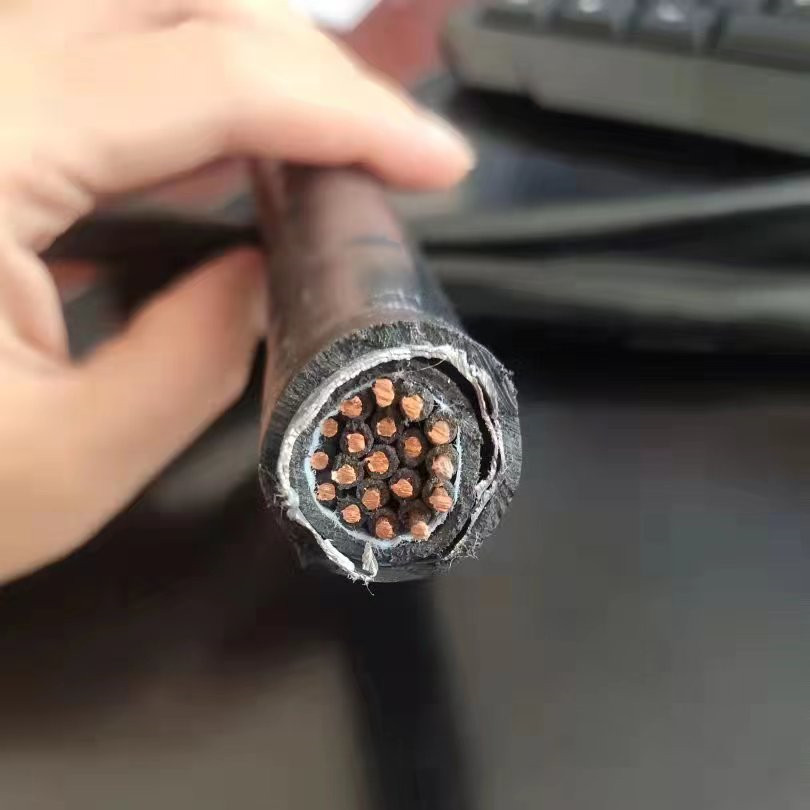

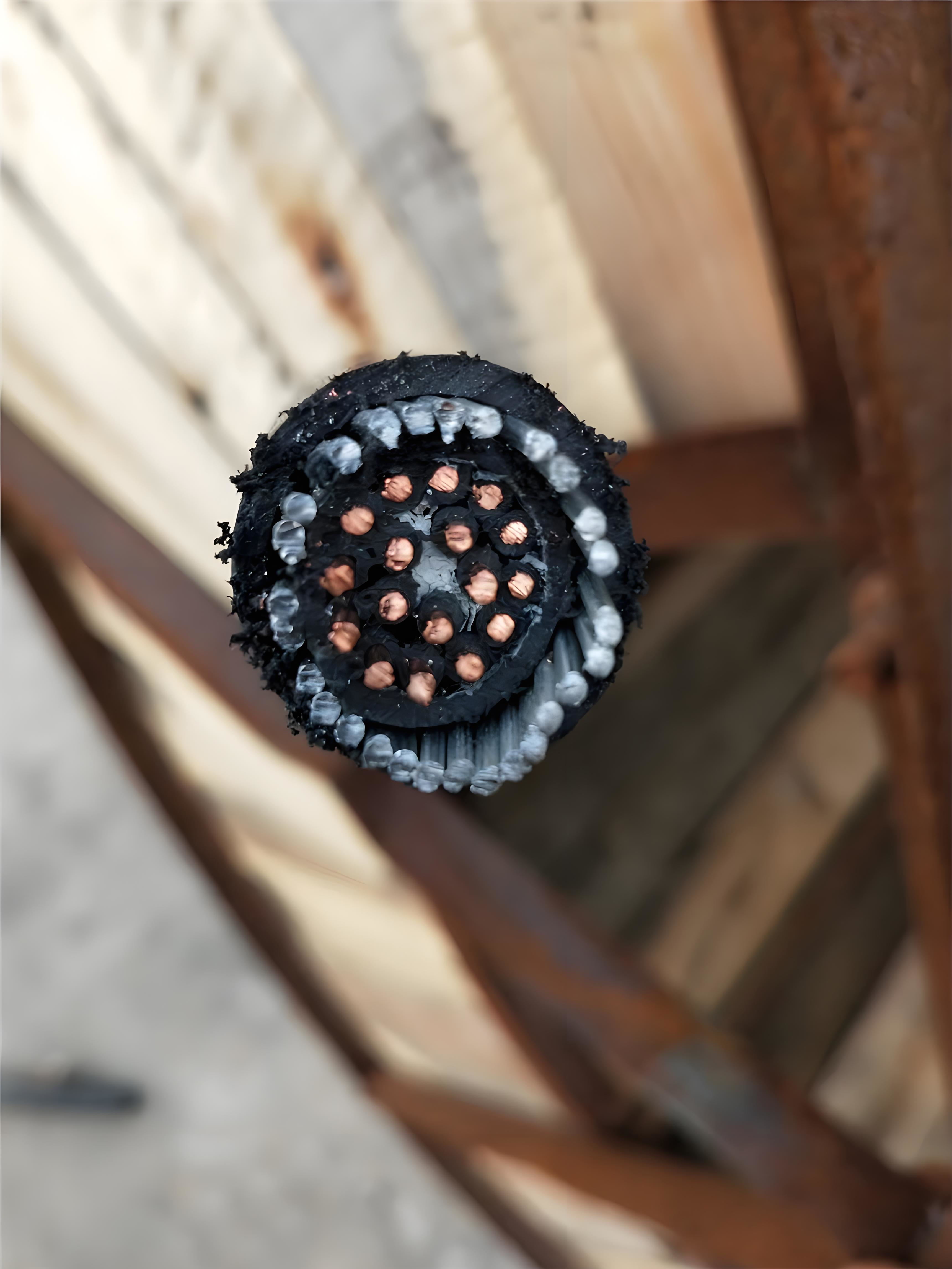

Mine cable with steel wire armor MKVV32
