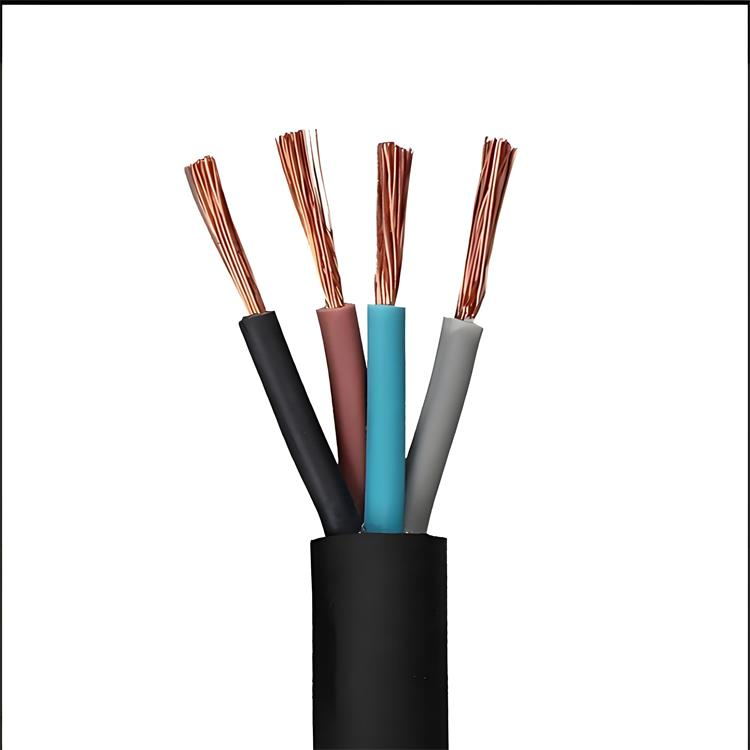

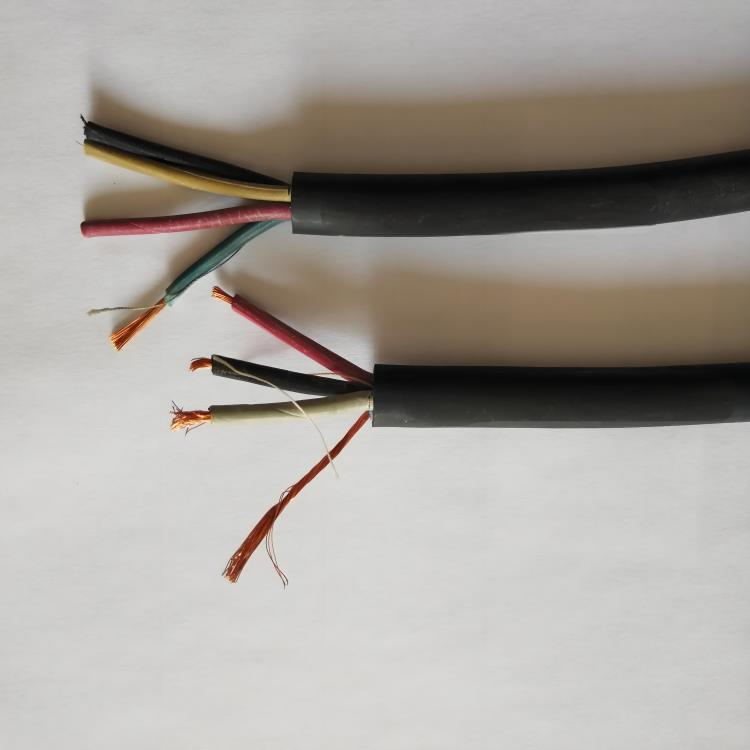

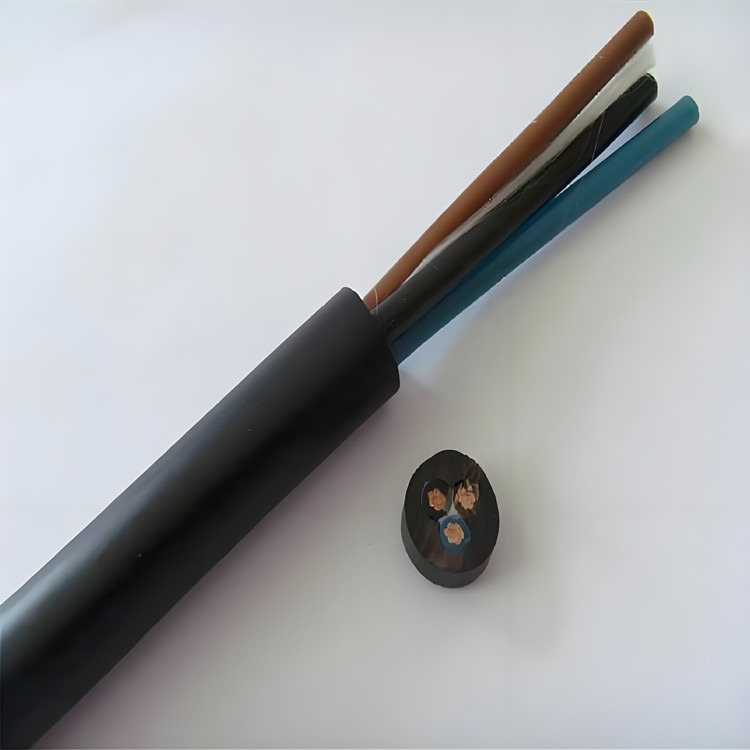

MYQ Mining Light Duty Mobile Flexible Cable 4×1.0

The insulation resistance between the main cores of the MYQ cable and between the main cores and the ground wire, when converted to +20°C, is not less than 160MΩ·km.

2. MYQ Cable Product Standard: MT818.9-1999.

3. The MYQ cable is composed of 2 to 12 main cores. After cabling, it is sheathed with a black chlorinated polyethylene rubber jacket or a black chloroprene rubber jacket on the outside. 4. MYQ cable conductor cores: use soft copper wire, with properties conforming to GB/T3956-1997.

5. MYQ Cable Insulation: Utilizes XJ-00A type rubber as specified in GB7594.2-1987.

6. MYQ Cable Core Identification: Up to four cores use insulated color coding for identification, while cores above four use printed numbers for identification.

7. MYQ Cable Twisting: Right-hand lay.

8. MYQ Cable Sheath: Made of XH-01A rubber as specified in GB7594.7-1987.

9. The standard UYQ type finished MYQ cable has non-flammable properties, while the flame-retardant UYQ type finished cable meets the requirements of MT386-1995.

10. MYQ Cable Marking: The cable surface is printed with model, voltage, specifications, and manufacturer's name.

MYQ Mining Lightweight Mobile Flexible Cable 4×1.0
