Mine-use Light-duty Rubber Sheathed Flexible Cable MYQ-4×2.5

1. The insulation resistance between the main cores of MYQ cable and between the main cores and the ground wire, when converted to +20°C, is not less than 160 MΩ·km.

2. MYQ Cable Product Standard: MT818.9-1999.

3. The MYQ type cable is composed of 2 to 12 main cores, and after being stranded, it is sheathed with a black chlorinated polyethylene rubber jacket or a black chloroprene rubber jacket externally. 4. MYQ cable conducting cores: made of soft copper wire, meeting the performance standards of GB/T3956-1997.

5. MYQ Cable Insulation: Utilizes XJ-00A type rubber as specified in GB7594.2-1987.

6. MYQ Cable Core Identification: Insulation color coding for identification is used for 4 cores and below, while printed numbering is used for more than 4 cores.

7. MYQ Cable Construction: Right-hand lay construction.

8. MYQ Cable Sheath: Made of XH-01A type rubber as specified in GB7594.7-1987.

9. The MYQ cable standard type UYQ finished cable features non-flammable properties, while the flame-retardant type UYQ finished cable meets the requirements of MT386-1995 for flame retardancy.

10. MYQ Cable Marking: The cable surface is printed with model, voltage, specifications, and manufacturer's name.

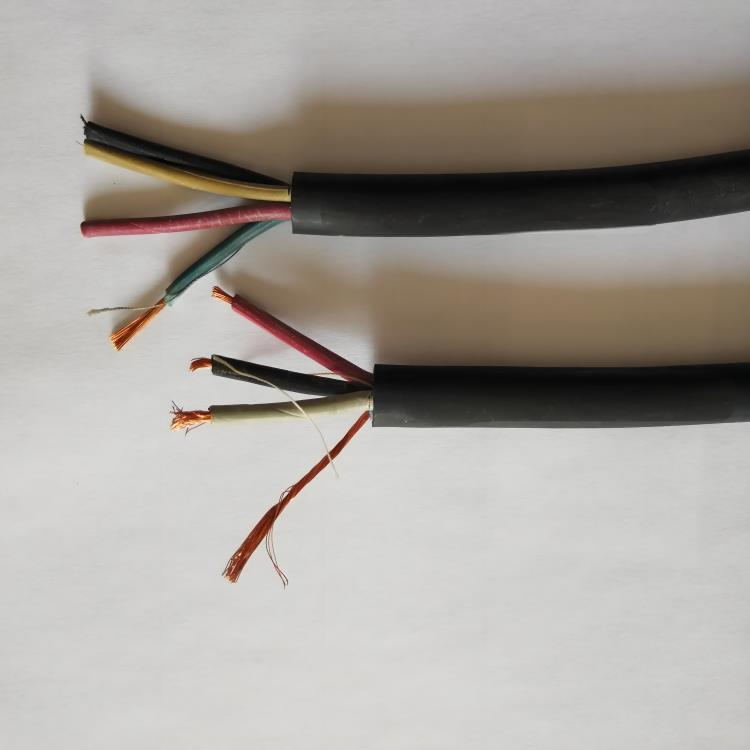

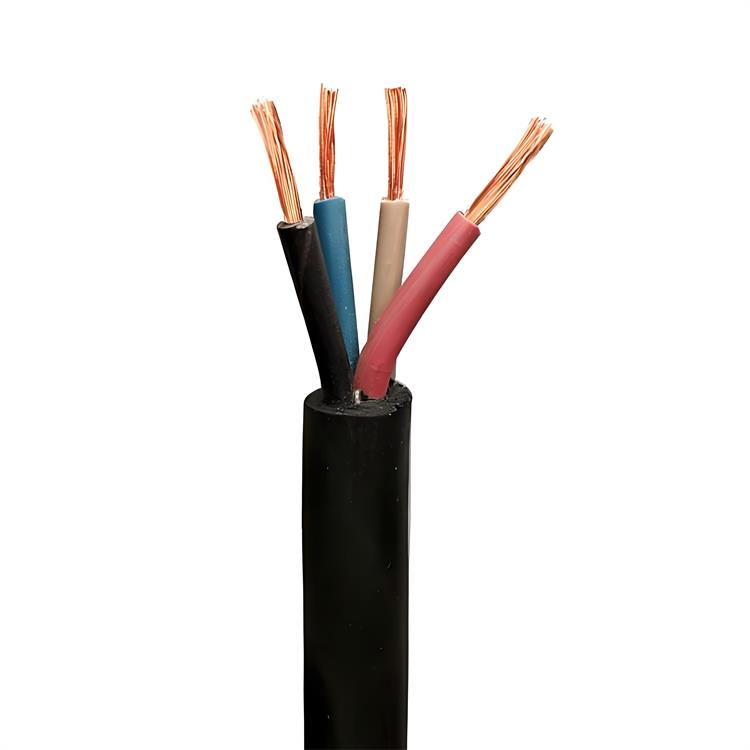

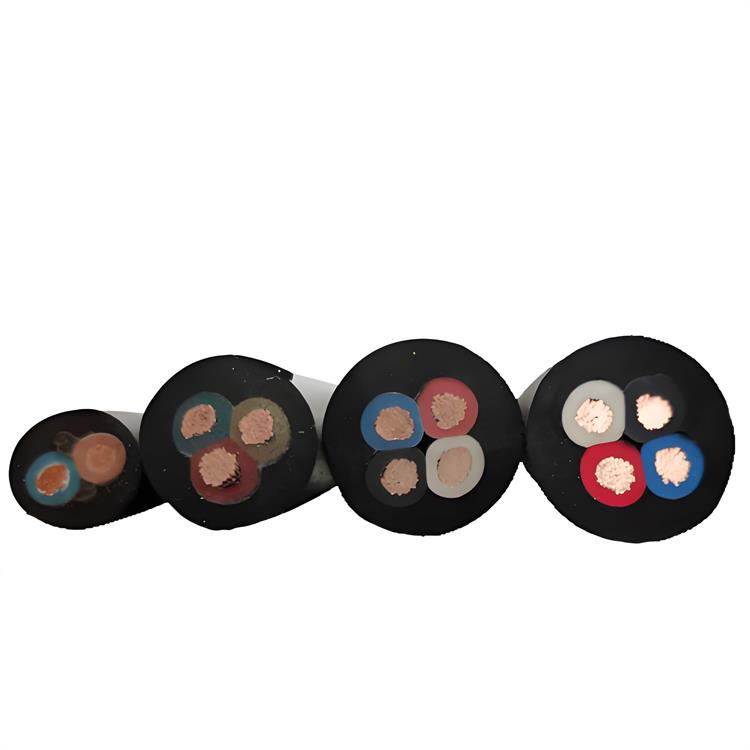

Mining light-duty rubber sheathed flexible cable MYQ-4×2.5
