Mine Communication Cable MHYSV-5×2×1/0.8

1. The insulation resistance between the main cores of the MYQ cable and between the main cores and the ground wire, converted to +20°C, is not less than 160 MΩ·km.

2. MYQ Cable Product Standard: MT818.9-1999.

3. The MYQ type cable is composed of 2 to 12 main cores, and after cabling, it is sheathed with a black chlorinated polyethylene rubber jacket or a black chloroprene rubber jacket on the outside. 4. MYQ cable conductor cores: use soft copper wire, whose performance meets GB/T3956-1997.

5. MYQ Cable Insulation: Uses XJ-00A type rubber as specified in GB7594.2-1987.

6. MYQ Cable Core Identification: Up to four cores use insulated color coding for identification, while more than four cores use printed numbering for identification.

7. MYQ Cable Twisting: Right-hand lay cable twisting.

8. MYQ Cable Sheath: Made of XH-01A rubber as specified in GB7594.7-1987.

9. The standard UYQ type finished cable of MYQ cable has non-flame-retardant properties, while the flame-retardant UYQ type finished cable meets the requirements of MT386-1995.

10. MYQ Cable Marking: The cable surface is printed with the model, voltage, specifications, and manufacturer's name.

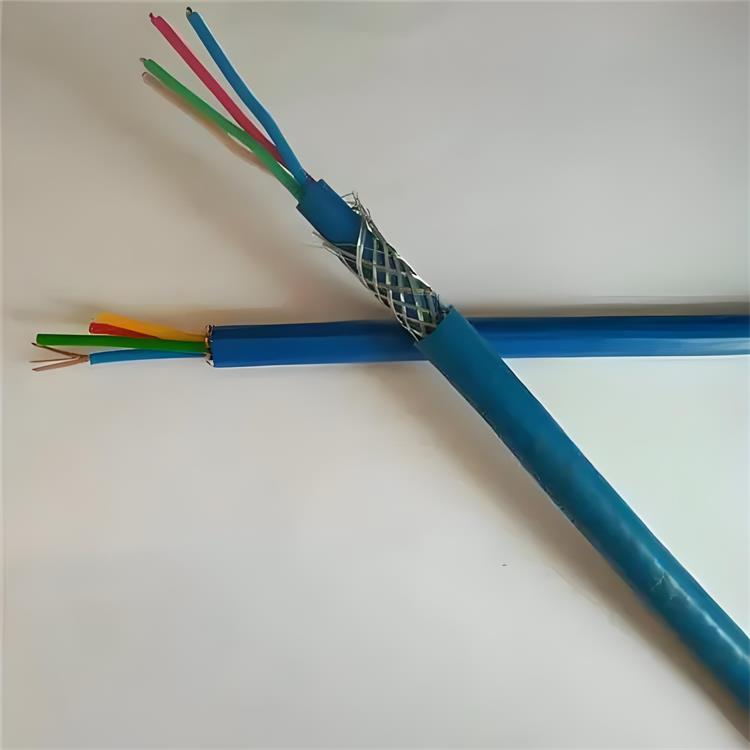

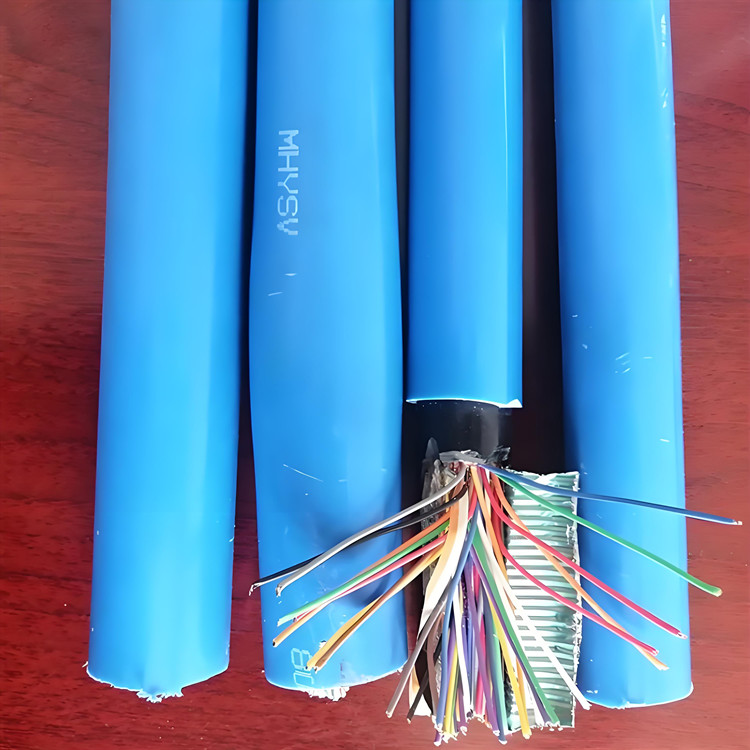

MHYSV-5×2×1/0.8 Mining Communication Cable
