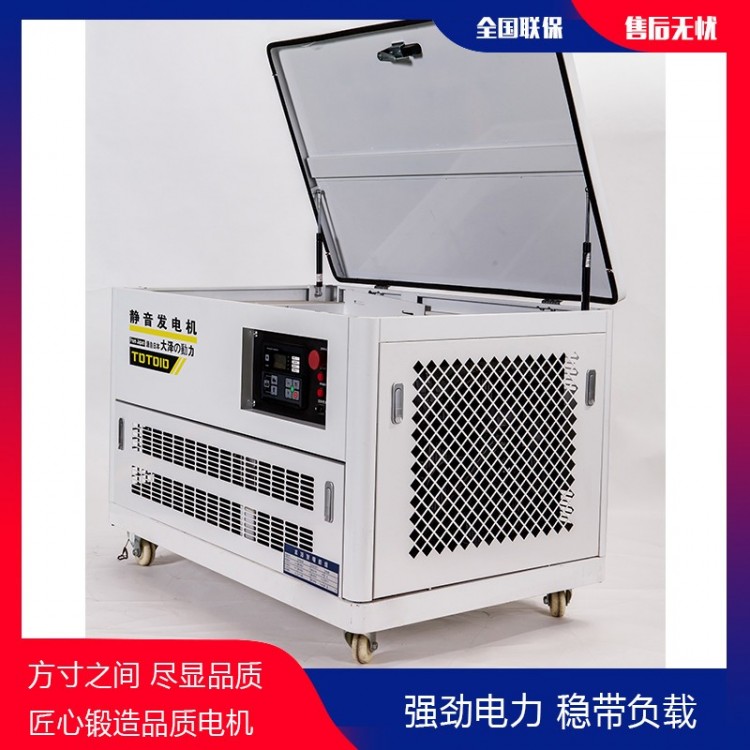

300kw Silent Diesel Generator, 3-Phase, 5-WireDiesel engine * ignition system. Additionally, the fuel supply system of diesel engines is relatively simple, hence the durability of diesel engines is superior to that of gasoline engines. Due to the absence of knock limitations and the requirement for diesel auto-ignition, diesel engines have a higher compression ratio. They offer better thermal efficiency and economy compared to gasoline engines, and at the same power output, diesel engines provide greater torque and operate at lower speeds at high power, making them suitable for commercial vehicles. The cylinders work in a certain sequence, converting the thrust acting on the piston into the force that rotates the crankshaft via the connecting rod. Generally, users who purchase diesel generators for emergency backup do not need to understand the working principle in detail. However, when buying a diesel generator, it is crucial to pay attention to its fuel consumption, noise level, and weight. Shanghai Sun Gong's small home-use diesel generator features low fuel consumption, low noise, and compact size.
TO320000ETDetailed specifications
I. Technical Specifications
Rated Output： 300KVA
StandbyPower： 320KVA
Rated Frequency： 50Hz
Rated Voltage： 400V
Rated Speed： 1500
Generator Type: Style
Startup Method: Electric Start
Please provide the Chinese content you would like translated into American English. Number: Three-phase
Power Factor： COSΦ = 0.8 (lagging)
Adjustment Method: AVR (Automatic Voltage Regulator)
Steady Voltage Adjustment:(%):≤±0.5
Voltage Fluctuations： (%):≤±0.5
Sudden Load Voltage Variation%： ≤±3
Steady-state Frequency Adjustment%： ≤±2
Engine Technical Specifications:
Power Model: TO32000ET
Cylinder arrangement: Inline Four-stroke Dry Cylinder Liner
Number of Cylinders: 6-cylinder
Cooling Method: Forced Closed-loop Water Cooling System
Fuel supply method: Direct喷射燃烧式
Speed control method: Mechanical speed control
Noise Suppression Device: Industrial Equipment
Inlet method: Turbocharger
Oil Type: SAE 10W-30 (or CD)
Fuel Model: 0# -10#Diesel
Diesel fuel tank: 300L
Engine oil consumption:224g/kw•h
Motor Technical Specifications:
Rated Power: 300KW
Wiring Method: Three-phase, four-wireY-connection
Ingress Protection (IP) Rating: IP22
Insulation Grade: H Level
Motor Type: Brushless Motor
Other Configurations:
Aircraft Configuration DimensionsL×B×H）：3980*1300*1950mm
Office Hours:8-10H
Engineered Weightkg）：2900/3100
300kw Diesel Generator Three-Phase Five-WireEnsure the safety of the unit under various conditions; the frame is equipped with support wheels, which not only bear the vertical load of the unit but also serve as a guide. The entire vehicle is fitted with turn and brake indicator lights, as well as tail light connectors. The wiring method involves a wire connecting the generator to the ATSS unit, and another wire from the ATS to the municipal power supply. There are also two wires from the generator to the municipal power supply wires. When the power is out, the ATS unit on the generator detects this and starts the diesel generator. Upon the return of municipal power, the ATS unit on the generator detects it and stops the diesel generator. Commonly used in home, school, RVs, field engineering, and other power supply fields, the diesel generator set is a small-scale power generation equipment, referring to a power mechanical system powered by diesel fuel or other fuels, driven by a diesel engine to generate electricity. The complete set usually consists of a diesel engine, generator, control box, fuel tank, starting and control battery, protective devices, and emergency cabinets. It can be mounted on a foundation for fixed use or mounted on a trailer for mobile use. The cooling and fuel systems, fuel injection speed control system, water pump, and starting drive system should be cleaned and inspected according to the instructions, and sufficient clean cooling water should be added, as well as fully charged starting batteries, to prepare for operation.
