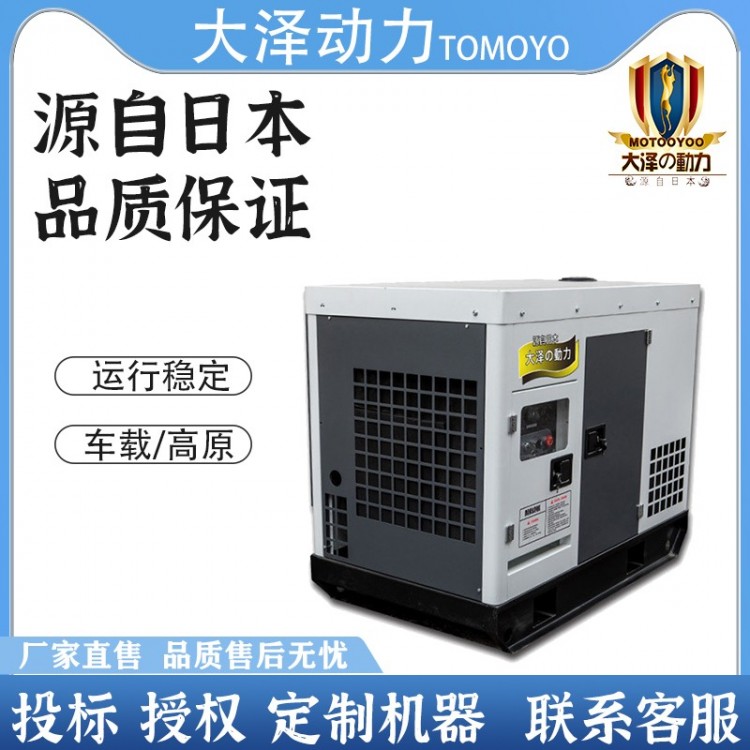

20KW Gasoline Generator  The Dazai Power full copper brushless AC generator, brushless three-phase synchronous generator, is a blend of science and technology. The stator winding ends feature a unique interleaved lap winding process and end箍 reinforcement structure, which enhances the dust resistance and corrosion resistance of the winding. The rotor winding utilizes special double-layer insulated flat copper wire technology, providing the rotor with excellent inter-turn and inter-layer insulation, as well as superior mechanical and voltage resistance properties, effectively improving the generator's reliability and service life. The vertical baking varnish drying process, along with overall high-speed dynamic balance testing, ensures the generator's insulation performance and smooth operation, with minimal vibration and low noise.

Model:TOTO20

Generator specifications

Rated Power: 20KW

Standby Power: 21KW

Rated Frequency: 50HZ

Rated Voltage: 220/380V

Power Factor: 0.8/0.9/1.0

Please provide the Chinese content you would like translated into American English.    Number: Single-phase and three-phase

Generator Type: **

Engine specifications

Engine Model TO-465F1

Fuel Consumption: 395g/kw.h

Fuel Tank Capacity: 25L

Lubricant Capacity: 3.3

Engine Displacement: 1.5L

Cylinder Quantity: In-line  Four-cylinder Water-cooled8 Valves

Power * Load Protection: Available

Insulation Grade: H

Startup Method: Electric start

Fuel Model: Premium gasoline over 90 octane

Cooling Method: Water-Cooled

Antifreeze      4L

Rated Speed: 3000r/min

Cylinder structure: Four-cylinder water-cooled engine

Oil Type: SF Grade Oil

Complete Machine Specifications

Office Hours: 8-12H

Noisedb）7M 68-75

Fuel Gauge Available

Complete Machine * Load Protection: Available

Automatic Overload Protection: Available

Voltage meter: Available

Power Indicator Light: Available

Machine Weight: 270/294kg

Dimensions: 1130*716*653mm
