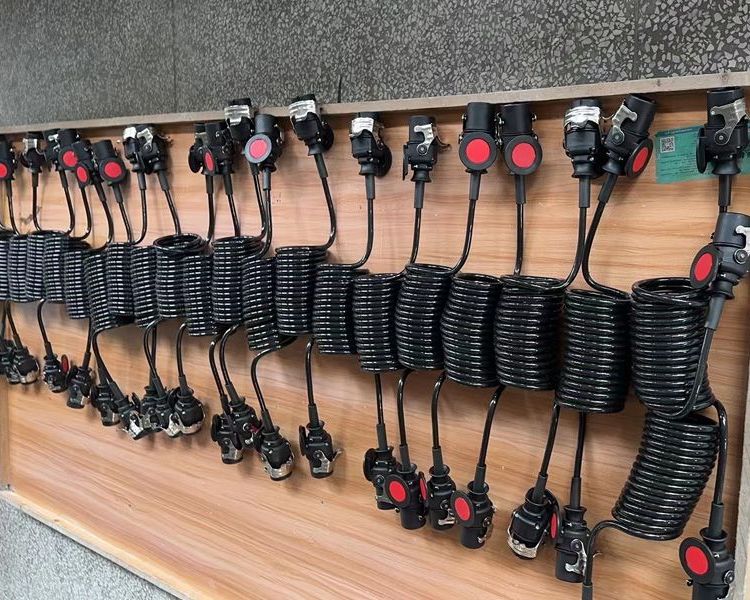

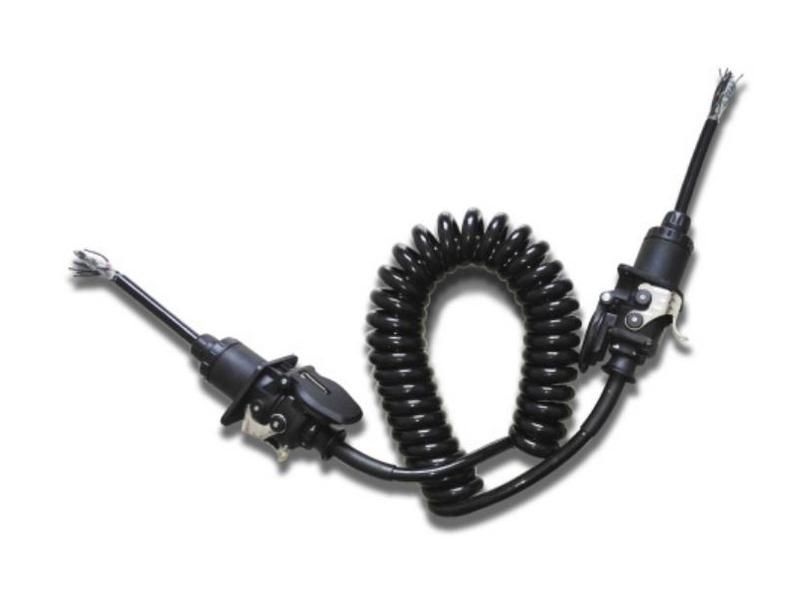

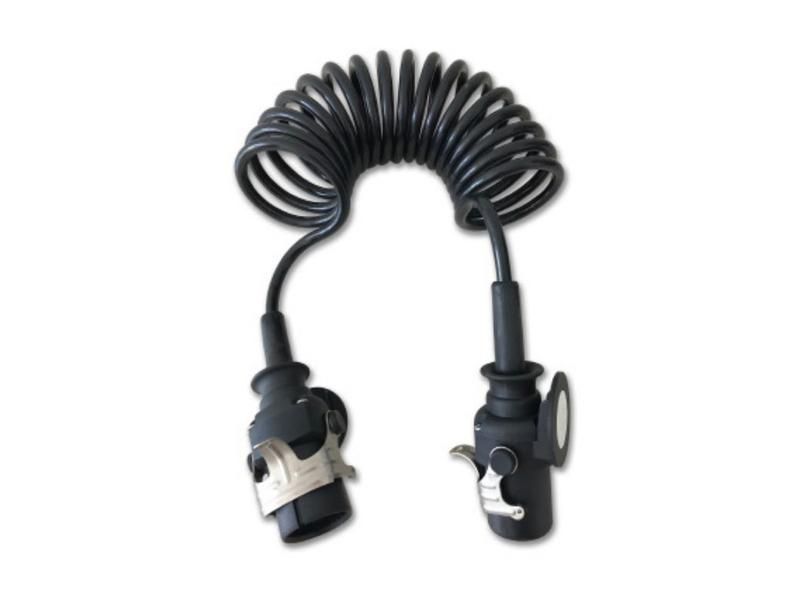

Heavy-duty truck 13-core spiral connector wire

Core Size:

2×4m㎡+3×1.5m㎡、 2×2.5m㎡+3×1.0m㎡、

2×4m㎡+5×1.5m㎡、2×2.5m㎡+5×1.0m㎡、

1×2.5m㎡+6×1.5m㎡、1×1.5m㎡+6×1.0m㎡

1×1.0m㎡+6×0.75m㎡

Working Length:3m、4m、4.5m、5.5m、6mOr custom-made to specification

Operating Temperature:-40℃-120℃

Connector:

MeetsISO7638Standard, plug material is high-strength nylon, with high strength, shock resistance, impact resistance, and less prone to cracking; outer diameter is large.11cmOuter diameter of the small circle5.5cmOr custom-made to suit your needs.

Performance:

Cable conductor is made of pure copper, offering superior electrical properties and resistance to core breakage, ensuring a long service life. The cable sheath isPUROrTPEEOil, wear, and corrosion-resistant; excellent elasticity and rebound.
