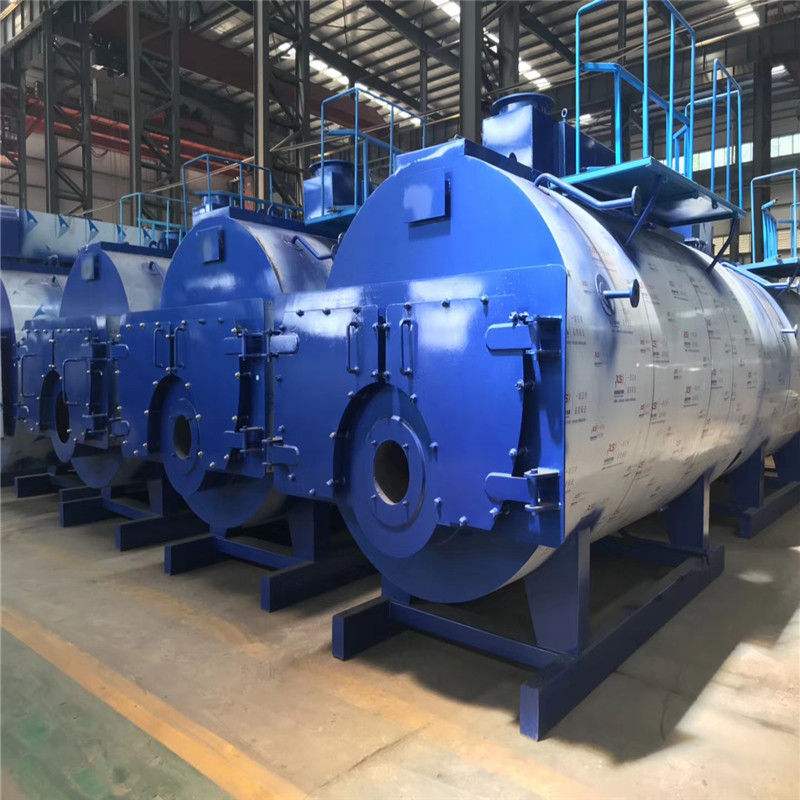

Henan Jingyu Energy WNS Fuel Oil Steam Boiler Introduction
Henan Jingyu manufacturedWNS HorizontalFully Automatic Fuel Steam BoilerFor horizontal quick assembly internal combustion three-pass fire tube boilers. Equipped with an offset firebox wet back structure, high-temperature flue gases sequentially wash the second and third pass flue tubes, then排出 through the rear smoke chamber and chimney into the atmosphere. The boiler is fitted with removable front and rear smoke box lids for easy maintenance. The WNS typeFuel-gas boilerA boiler product developed through technical cooperation between Western European countries and one of the sub-projects under the Environmental Protection Boiler Project. Faced with the most stringent environmental standards in history issued by major cities across the country – NOx emissions ≤ 30mg/m³, the research and development team of Henan Jingyu continuously explores and practices, creatively combining ultra-low nitrogen combustion technology with WNS boiler manufacturing technology. They have achieved a breakthrough in two core technologies: staged combustion and FRG flue gas recirculation, thus giving birth to the Henan Jingyu horizontal internal combustion typeLow-Nitrogen Steam BoilerNOx emissions can reach 28 mg/m³.
WNS HorizontalFully Automatic Fuel-Fired Steam BoilerIndustrial burners with excellent technical performance are equipped, featuring automatic proportional combustion control, automatic water regulation, programmable start/stop, and fully automatic operation. It also includes high and low water level alarms, as well as automatic protection functions for low water level, overpressure, and extinguishing. This type of boiler boasts compact structure, safety, ease of operation, quick installation, low pollution, low noise, and high efficiency.。
WNS Fuel Oil Steam BoilerAll products are factory-assembled for quick installation at the customer's site. No additional building structures or special installation procedures are required, other than the necessary water, gas, and electrical connection accessories. A series of inspections and adjustments are conducted before the boiler leaves the factory, ensuring its quality. This type of boiler is mainly composed of the boiler body, smoke channel connections, burner, steam-water system, instruments, energy-saving devices, and condenser. It features clean combustion, pollution-free emissions, easy operation, and sufficient output.
Henan Jingyu Thermal Energy Equipment WNS Fuel Oil Steam Boiler Key Features:
1. The overall structure is rational, compact, and belongs to the boiler island type, meeting the quick assembly and factory shipment requirements. Upon delivery, the product is composed of three main parts: the boiler main unit, chimney, and pipeline system. Both the main unit and the chimney sections have been fully manufactured in the factory. The pipeline valves and instruments for the main unit are pre-installed. Upon arrival at the site, simply assemble the main unit and chimney. Connecting the gas, power, and water pipelines on-site allows for immediate testing. This significantly reduces the installation period while ensuring product quality.
2. Advanced design performance.
Henan Jingyu Boiler's main body features an integrated structure, with the burners mounted on the front smoke box cover, and the main body mainly arranged with heating surfaces and combustion chambers. It boasts a reasonable and compact design, low steel consumption, an offset corrugated furnace body, and uses a new lightweight thermal insulation material for the insulation layer. The outer packaging is made of colored thin plate, with the shape designed as a rectangular prism, making the boiler's performance, weight, structural dimensions, and exterior design significantly more advanced and aesthetically pleasing compared to domestically produced products of the same capacity.
The boiler water supply equipment is mounted on the boiler base to the right of the boiler, making it an integral part of the main unit, eliminating the need for an additional foundation.
3. The water circulation is simple, with a well-structured pressure component design. It can safely operate while ensuring water quality.
4. Complete auxiliary machinery available, with advanced comprehensive technical performance.
