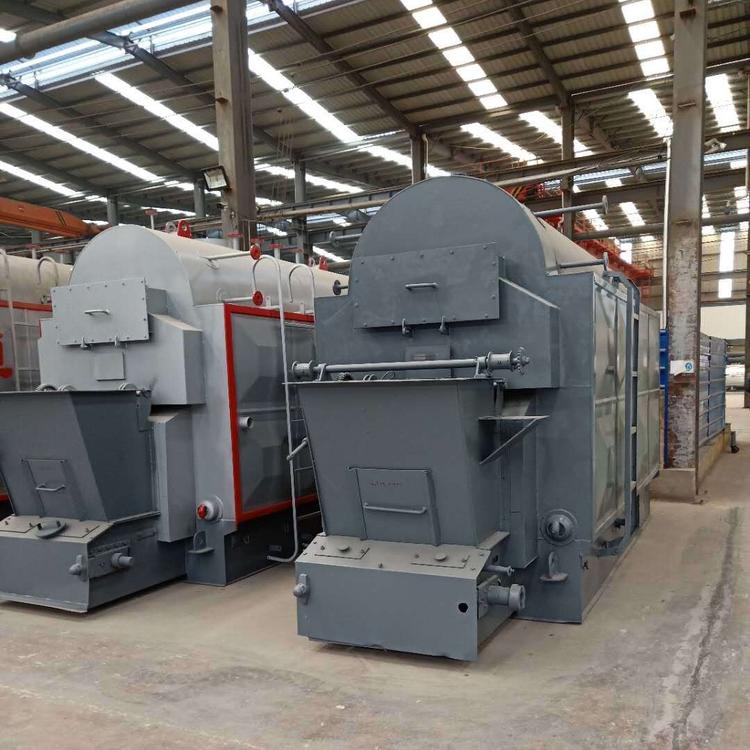

Henan Jingyu DZL Automatic Chain Grate Biomass Steam Boiler Introduction
The DZL horizontal automatic chain grate biomass steam boiler is a horizontal three-pass water and fire tube mixed boiler, equipped with a bundle of threaded smoke tubes inside the drum. The furnace has glass-lined water walls on both sides. Henan Jingyu uses a light-type chain grate for mechanical feeding, equipped with a blower and an induced draft fan for mechanical ventilation, and a scraper-type slag removal machine for automatic slag removal. The boiler employs a new energy-saving technology arch on the front and rear arches. Fuel falls from the hopper onto the grate, enters the furnace for combustion, and the flame refracts upwards through the rear arch, passing through the smoke box on the side of the boiler body, then bends back into the drum tube bundle, enters the economizer through the rear smoke box, and is finally drawn through the flue and exhausted into the atmosphere by the induced draft fan.
DZL Automatic Coal-Fired Steam Boiler Performance Features and Advantages
Boiler type: Horizontal quick-assembly water and fire tube boiler with natural circulation of working medium.
2. Design Performance: The boiler's main heating surface tubes are made of 20# seamless steel pipes for low and medium pressure boilers, and the drum is made from boiler-specific steel plates. The headers on both sides are also made of seamless steel pipes.
3. The boiler arch is made of refractory concrete. The rear arch is low and long, ensuring good combustion. The flue channels on both sides and the side wall bricks are made of烧结refractory bricks. The front and rear walls of the boiler are constructed with general-purpose refractory bricks.
4. Rational grate design, larger combustion chamber, and strong applicability to various fuel types. Capable of burning biomass pellets, as well as wood scraps, logs, straw, coal, and more. Complete combustion. Due to the high-temperature flue gas first entering the sedimentation chamber, then flowing into the flue channels and front smoke box from both sides, the smoke and dust removal effect is excellent.
5. The water cycle is simple, the structure of the pressure parts is reasonable, and it can operate safely while ensuring water quality.
6. The combustion equipment for horizontal biomass steam boilers is a quick-assembly grate. The combustion equipment is fully manufactured and installed at the factory, and can be directly installed on the foundation at the construction site upon arrival. It features a rational and compact structure, low steel consumption, and boasts notably superior performance, weight, and structural dimensions when compared to domestically produced products of the same capacity.
This product boasts maturity, performance, stability, reliability, and economy.
1. Maturity
One of the earliest manufacturers in China to produce quick-assembly coal-fired threaded tube chain grate boilers.
Automated coal-burning threaded pipe chain grate boiler, filling the domestic gap for steam boilers with threaded pipe chain grate combustion.
Over the past decade, the product has undergone multiple updates and generations, becoming more mature. Over 6,000 units of the same product have been produced.
2. Gender:
Employing multiple technologies, such as threaded pipes and enhanced combustion within the furnace.
3. Stability:
Boilers operate smoothly with a low failure rate and no major safety incidents have occurred.
Early boilers have achieved a long service life of up to 10 years.
Technical Specifications
| Boiler Model | Rated Evaporation Capacity (t/h) | Rated Steam Temperature (℃) | Rated Steam Pressure (MPa) | Boiler thermal efficiency (%) | Grate Area(㎡) | Heating Area (㎡) | Fuel Consumption (kg/h) | Burning Method | Total Boiler Weight (t) | Boiler Dimensions (m) | |
| DZL1-1.0 -T | 1 | 184 | 1.0 | 86.3 | 2.6 | 38.29 | 198 | Chain Line Style Layer Burn Burn | 16 | 5.4*2.0*2.83 | |
| DZL2-1.25 -T | 2 | 194 | 1.25 | 86.3 | 4.3 | 81.93 | 408 | 18.7 | 5.694*2.55*3.36 | ||
| DZL4-1.25 -T | 4 | 194 | 1.25 | 86.3 | 7.2 | 143.31 | 560 | 28.3 | 6.47*2.82*3.668 | ||
| DZL6-1.25 -T | 6 | 194 | 1.25 | 86.3 | 9.6 | 210.2 | 812 | 32.1 | 7.24*2.951*3.55 | ||
| DZL8-1.25 -T | 8 | 194 | 1.25 | 86.3 | 12.2 | 286.71 | 985 | 36.8 | 7.2*3.1*3.5 | ||
| DZL10-1.25 -T | 10 | 194 | 1.25 | 86.3 | 13.8 | 371.32 | 1124 | 41 | 7.7*3.2*3.5 | ||
| DZL12-1.25 -T | 12 | 194 | 1.25 | 88.6 | 18.2 | 423.52 | 1370 | 46 | 5.6*3.3*3.6 | ||
| DZL15-1.25 -T | 15 | 194 | 1.25 | 88.6 | 23.3 | 506.8 | 1581 | 51 | 7.65*3.3*3.5 | ||
| DZL20-1.25 -T | 20 | 194 | 1.25 | 88.6 | 26.1 | 645.9 | 1963 | 57 | 7.7*3.8*3.6 | ||
| DZL30-1.25 -T | 30 | 226 | 1.25 | 88.6 | 32.6 | 864.22 | 2467 | 64 | 8.1*3.6*3.1 | ||
| DZL65-2.5 -T | 65 | 226 | 2.5 | 88.6 | 66.4 | 1200.37 | 4375 | 113 | 9.0* |
