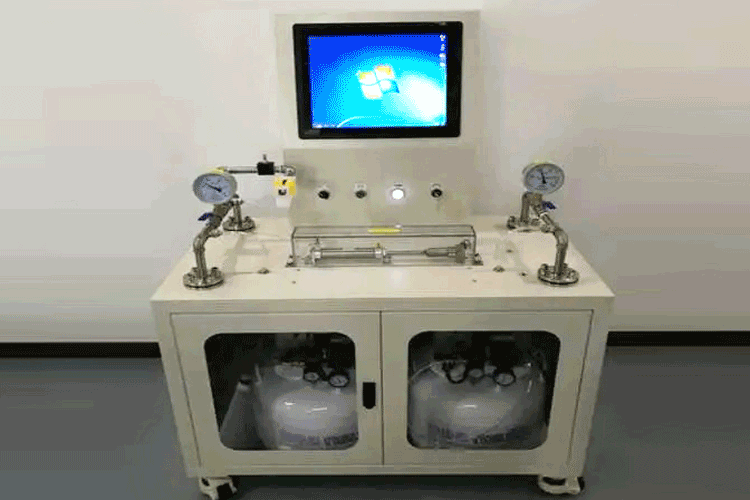

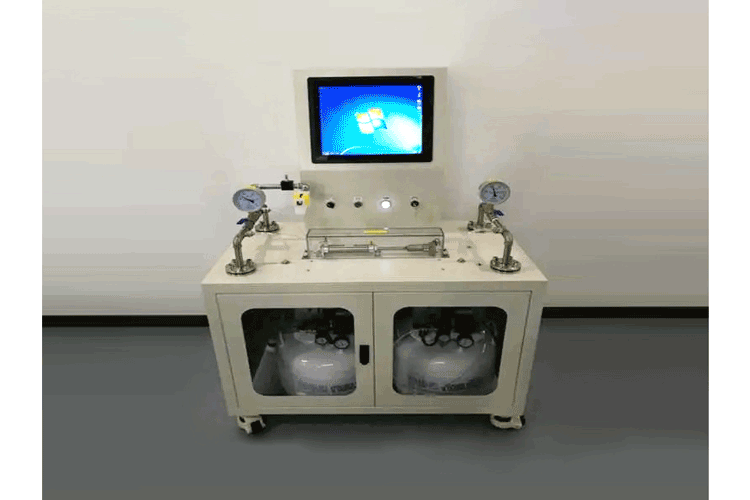

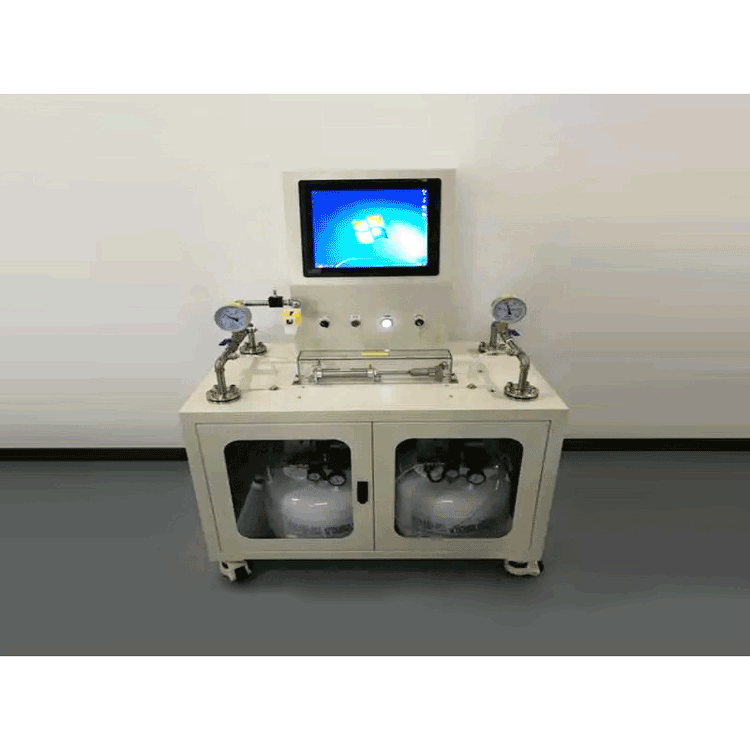

Leakage Detection for Air Path Safety

Feature Overview

Experience Projects: Sealed pipeline gas pathways, energy consumption comparison of leaking pipeline gas pathways, perception of energy loss due to compressed air leaks, understanding the importance of sealing in gas pathways, pipes, gas valves, etc., and strengthening the awareness of energy conservation and emission reduction.

Process Design

1. Place the experience equipment in the pre-assigned location with a gas supply, and securely connect the gas source.

2. When preparing for the experience, turn on the toggle switch on the left side of the device. The power indicator light will illuminate, indicating the device is powered on. Wait for the device to complete initialization.

3. After preparations are complete, press the start button to open both the sealed pipeline gas route and the leaking pipeline gas route simultaneously. After a period of waiting, observe the changes in the data on the monitoring instrument to perceive the energy loss caused by compressed air leakage. Understand the importance of sealing in gas routes, pipelines, and gas valves, and enhance the awareness of energy conservation and emission reduction.

4. After completing the experience, turn off the gas and power sources to finish the experience.

Module Function Requirements

Key Technical Specifications

Model: HK-XL 90

Rated Voltage: AC 220V/50Hz/10A

Pressure: 0.5-0.8 Mpa

Dimensions: 900*600*1400mm

Weight: 220 Kg

Main Configuration
