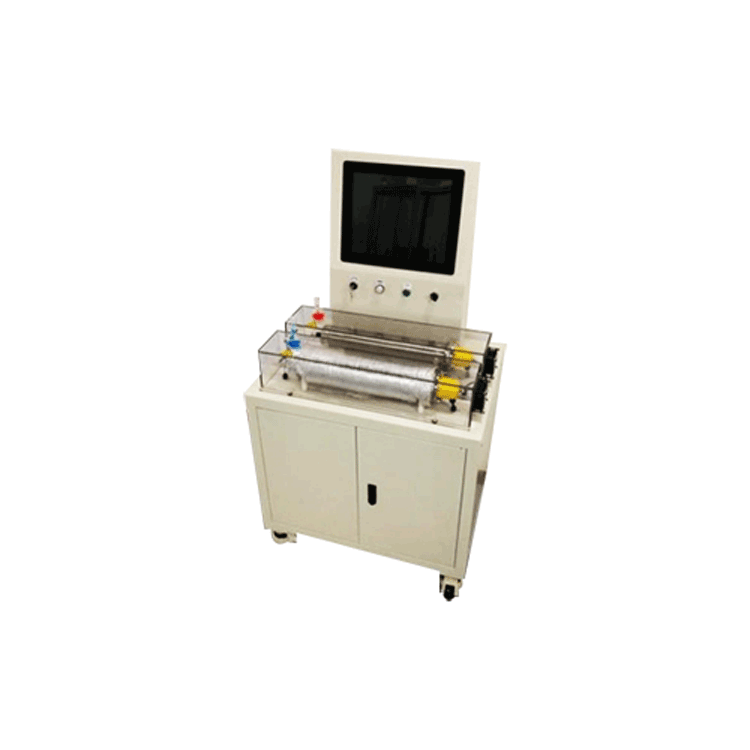

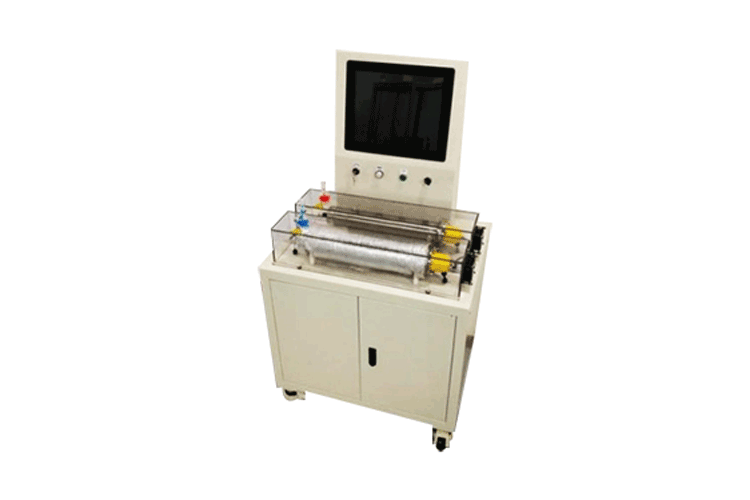

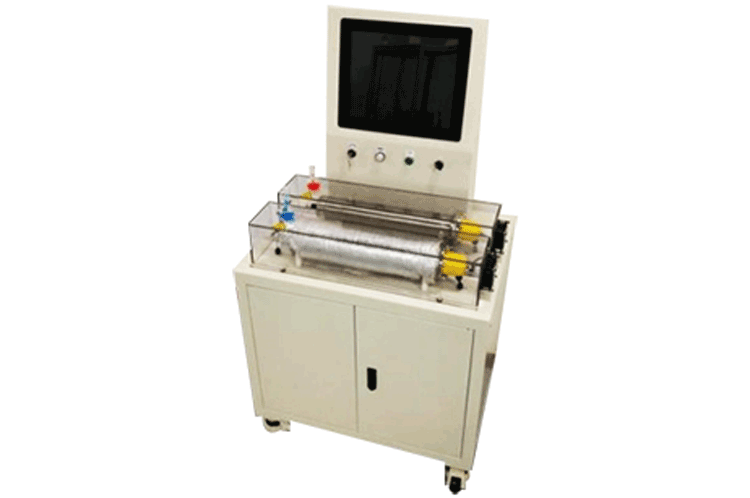

Insulation and Energy-Saving Pipeline Experience Equipment

Feature Overview

Objective: Common-sense Insulation Learning. Experience the energy loss ratio between insulated and uninsulated pipelines under the same initial temperature, perceive the energy loss due to pipeline heat dissipation, and understand the energy-saving and protective functions of insulation.

Process Design

1. Place the experience equipment in the reserved spot with an AC220V power outlet and plug in the power supply.

2. When preparing for the experience, turn on the toggle switch on the left side of the device. The power indicator light will illuminate, indicating that the device is powered on. Wait for the device to complete initialization.

3. After preparation is complete, press the start button to heat the two sections of pipe separately. Monitor the changes in the data displayed on the screen to understand the energy-saving and protective effects of insulation.

4. After the experience is complete, turn off the power to finish one person's session.

Module Function Requirements

Key Technical Specifications

Model: HK-GD 80

Rated Voltage: AC 220V/50Hz/10A

Pressure: None

Dimensions: 800*600*1950mm

Weight: 200 Kg

Primary Configuration
