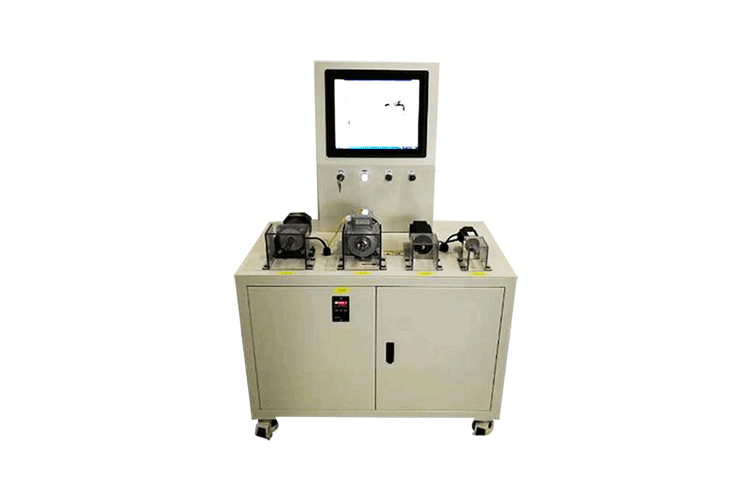

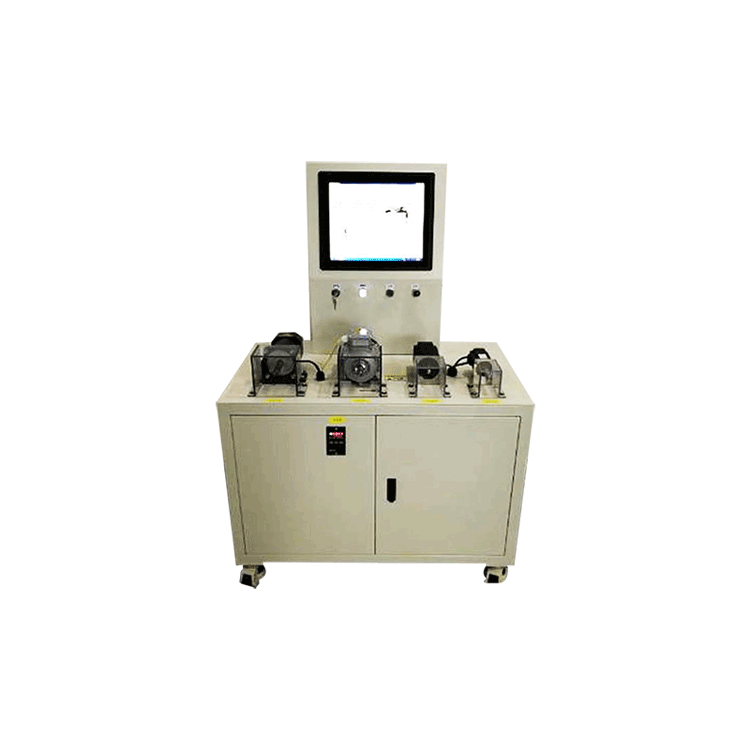

Energy-saving motor with sensory equipment

Feature Overview

Experience Projects: Compare energy consumption of standard, variable frequency, stepper, and servo motors. Understand the working principles and energy consumption differences of various motors, and learn to select the appropriate motor based on application scenarios.

Process Design

1. Place the experience equipment in the reserved position with an AC220V power outlet and plug in the power supply.

2. During setup for the experience, turn the switch on the left side of the device, the power indicator light will illuminate, and the device will be powered on. Wait for the device to initialize.

3. Once preparation is complete, press the start button, apply power to the four different types of motors individually, and observe the changes in the monitor's data to understand the working principles and varying energy consumption of each motor. Learn how to select the appropriate motor based on the application.

4. After experiencing, turn off the power to complete the experience.

Module Function Requirements

Primary Technical Specifications

Model: HK-JN 90

Rated Voltage: AC 220V/50Hz/10A

Pressure: N/A

Dimensions: 900*600*1400mm

Weight: 220 Kg

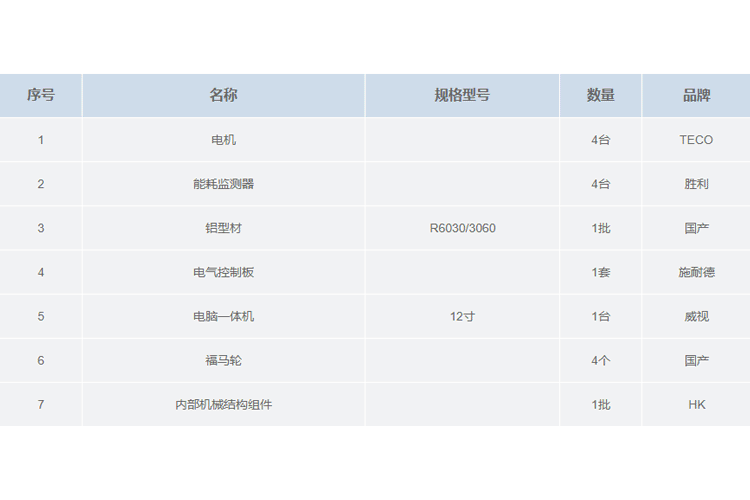

Main Configuration
